2.4 Analyzing/Searching Data
Relevant Keys
ACTION DELAY
X - Y
MENU MENU
PHASE
SEARCH
HORIZONTAL
VERTICAL
TRIGGER
TRIG D
HELP
ESC
SELECTRESET
SIMPLE
MODE POSITION
MATH
MISCFILE
CLEAR
TRACE
HISTORY
MEASURE
SETUP
PRESET
DISPLAY
CURSOR
CH
1
CH
2
CH
3
CH
4
POWER
COPY
IMAGE SAVE
SHIFT
ZOOM
GO/NO-GO
ENHANCED
ACQ START/ STO P
SNAP
SHOT
V DIV TIME DIV

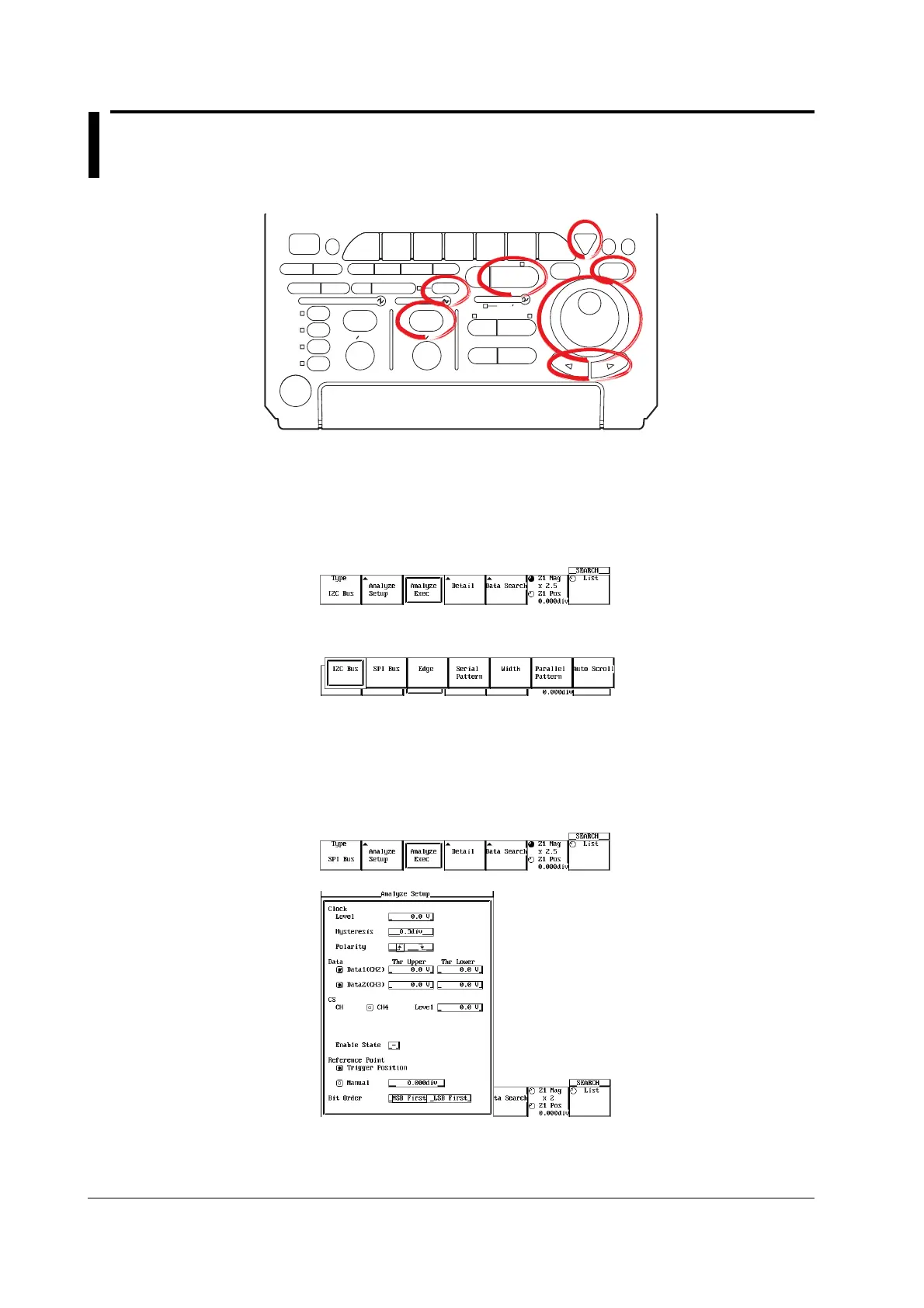

Procedure
1. Press SHIFT to set the keys in the shifted condition.
Functions marked in purple on the panel become active.
2. Press ZOOM.
3. Press the Type soft key. The analysis type selection menu appears.
4. Press the SPI Bus soft key.
5. If waveform acquisition is in progress, press START/STOP to stop the
operation.
Setting the Analysis Conditions
6. Press the Analyze Setup soft key. The Analyze Setup dialog box appears.
