2.4 Setting the Time Base
Set the time base to synchronize the ECU monitor to the DL950. Set the time base in the DAQ Setting
window.
Perform the following procedure after setting the channels in the Channel Setting window and
clicking Next to display the DAQ Setting window as described in section 2.3.

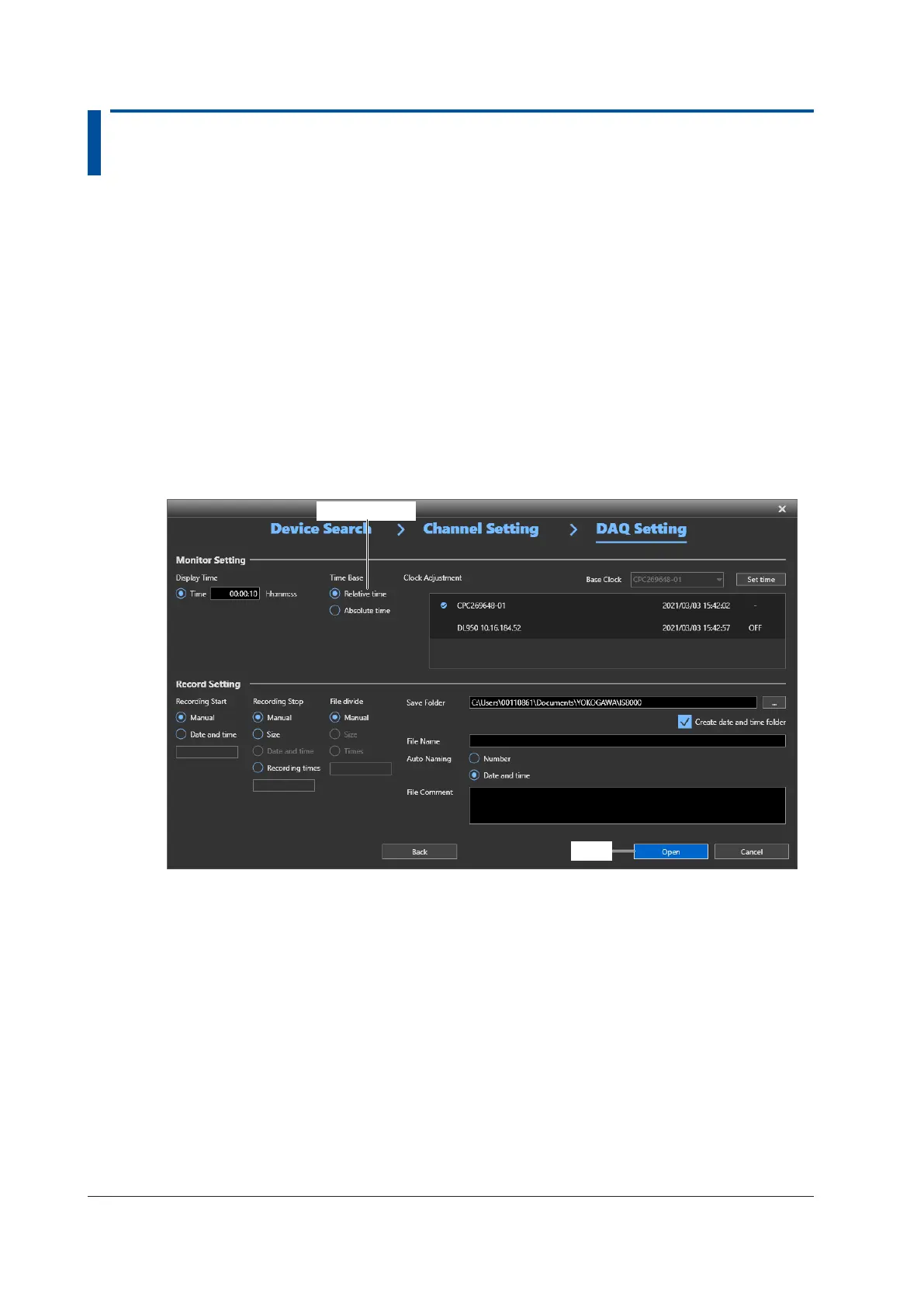

1.
Under Time Base, select the Relative time check box.
Specify Relative time to synchronize the ECU monitor to the DL950.
Configure the monitor settings, record settings, and other settings if necessary (see chapter 3 in the
User’s Manual, IM IS8000-01EN).
2.
Click Open.
Next, proceed to the monitor window in which you will set the measuring conditions, execute
measurements, save data, and so on. For the procedure, see chapter 3.
