App-1
IM IS8000-62EN
Appendix
App
Appendix
Appendix 1 Offline Synchronization and Data
Acquisition
This section explains how to synchronize and measure waveform data and RAM data offline and then
display the two sets of data on the IS8000.
Connecting the ECU Monitor to the DL950
1.
Check that the ECU monitor and DL950 are turned off.
2.

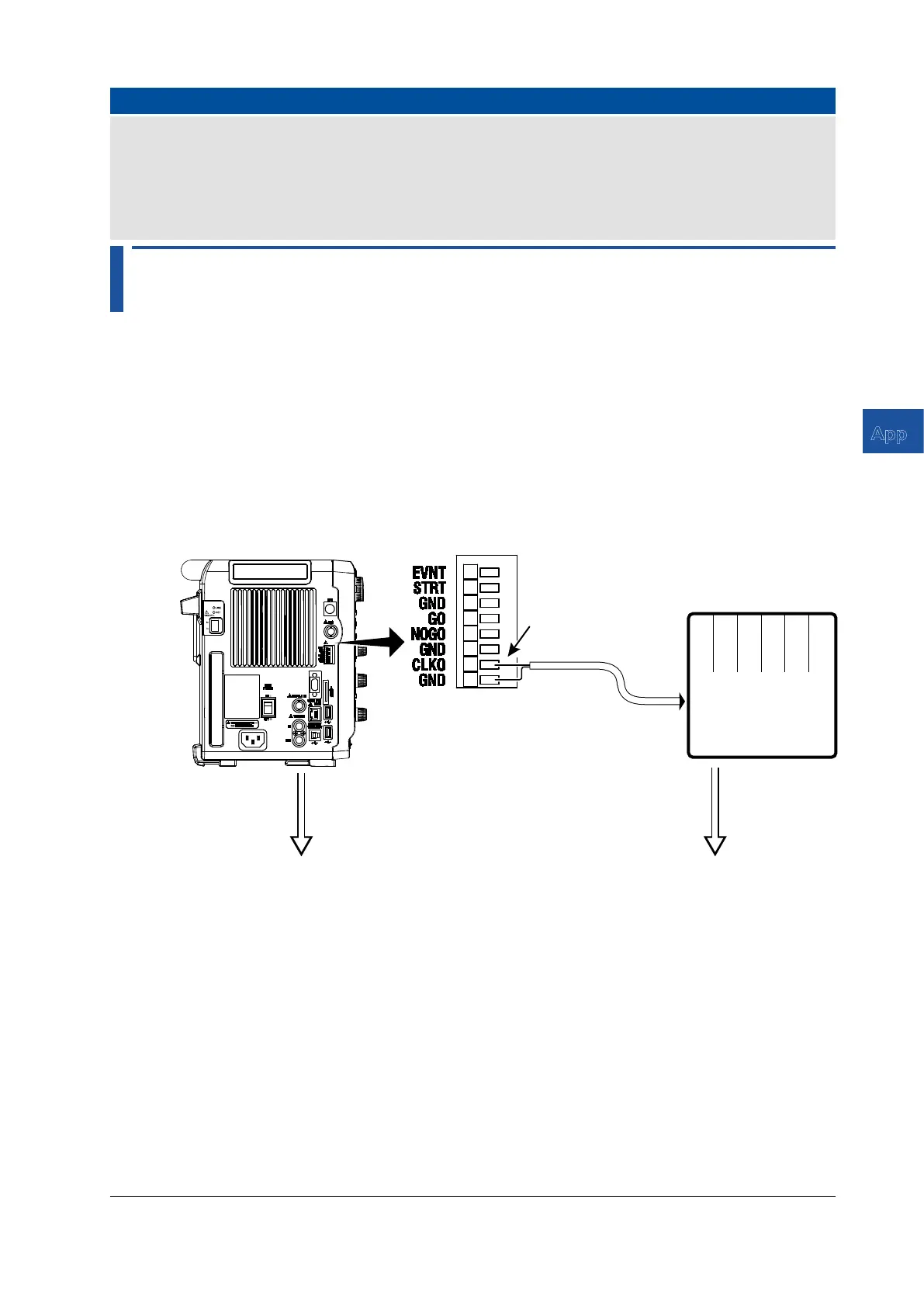

Connect an ECU monitor to the DL950 as shown in the following figure. Connect the
DL950’s sync signal to the appropriate input terminal or connector of the ECU monitor.
side panel
ECU monitor
Sample clock output
terminal CLKO
(screwless terminal
block)
To the input terminal
for receiving sync
signals
Connect to the
PC via USB
Connect to the PC
via Ethernet or USB
3.
Connect the measurement target to the signal input terminals of the DL950 and ECU
monitor.
To Next Page
