2-3
IM IS8000-62EN
Configuring the Measurement Channels and Synchronization
2

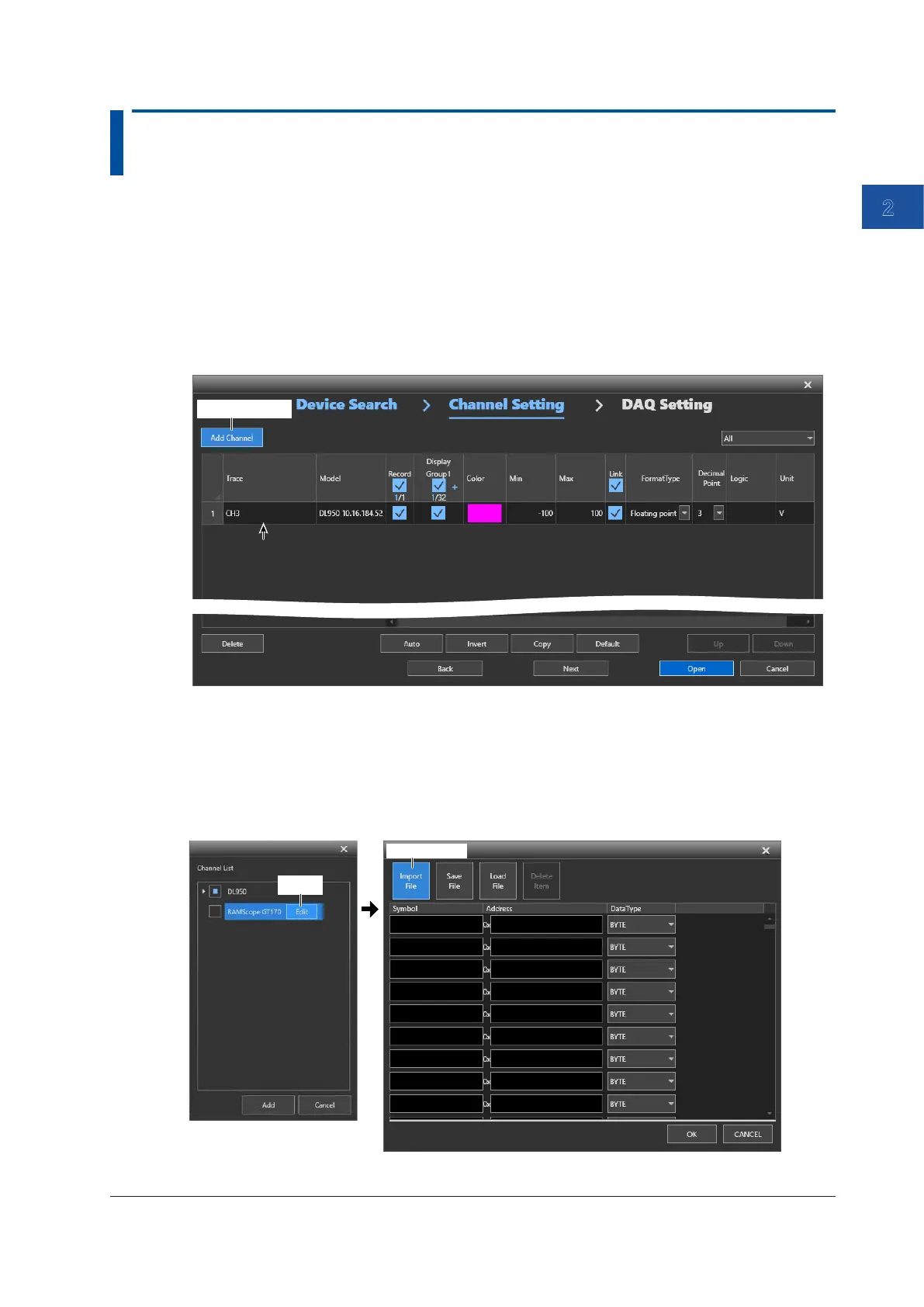

2.3 Setting the RAM Data Measurement Channels
To set the RAM data measurement channels to measure on the ECU monitor, you need to load symbol
definitions. Set the measurement channels in the Channel Setting window.
Perform the following procedure after selecting the device in the Device Search window and
clicking Next to display the Channel Setting window as described in section 2.2.
1.
Click Add Channel. An Add Channel dialog box appears.
Add Channel
DL950 channel settings
The DL950 channel settings are loaded when a device search is made.
For details on each setting, see the User’s Manual, IM IS8000-01EN.
Importing a Symbol Definition File
2.
Tap Edit. A symbol definition setting dialog box appears.
3.
Click Import File. A symbol definition file import dialog box appears.
You can also directly enter symbols and their corresponding addresses and data types without importing
a symbol definition file (.a2l extension).*
* Symbol definition files are created using the RAMScope VP application software.
Edit
To Next Page
