YOKOGAWA DL950 - Explanation of Functions; System Configuration

1-1
IM IS8000-62EN
Explanation of Functions
1
2
3
4
App
Index
Chapter 1
Explanation of Functions

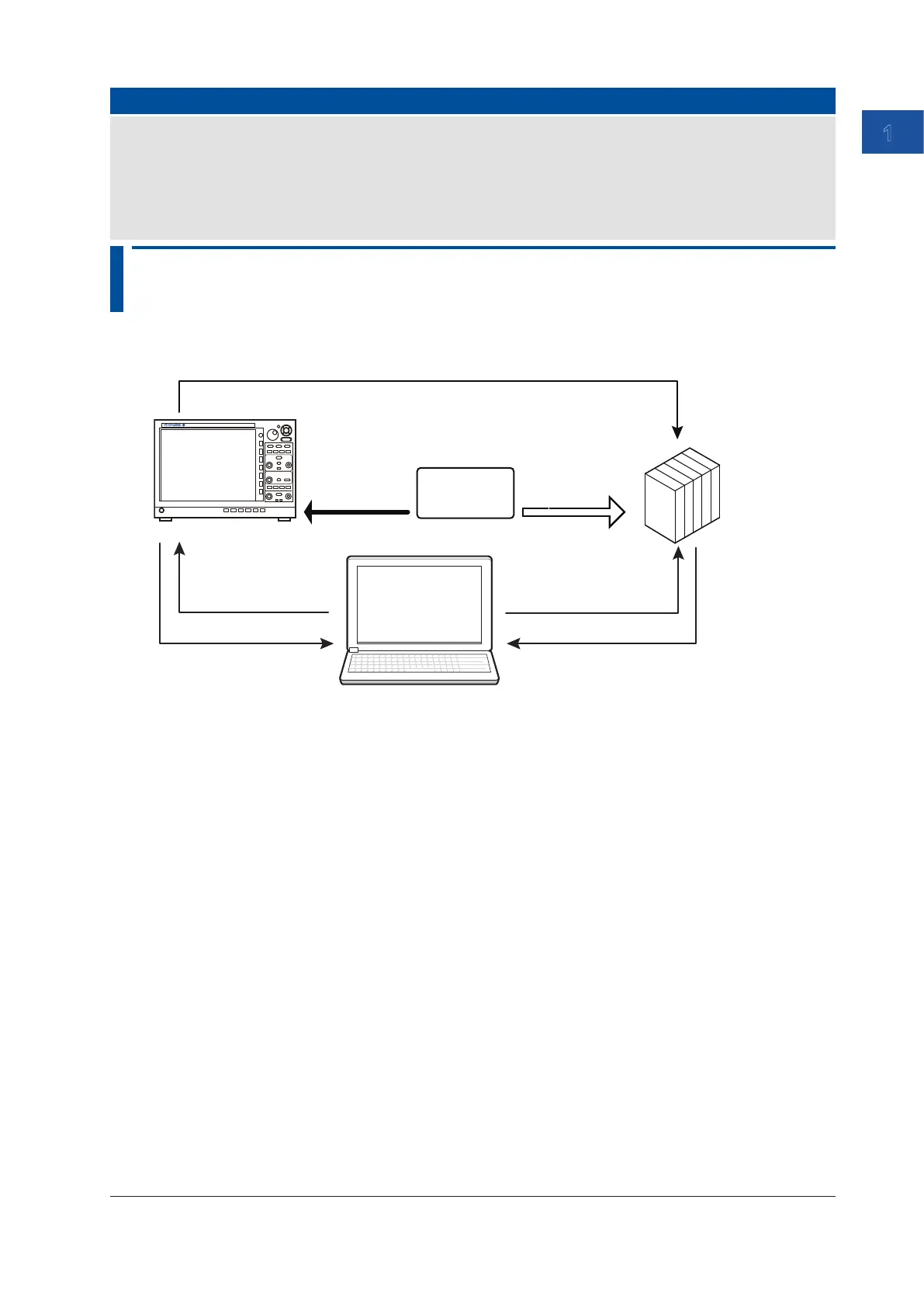

1.1 System Configuration
PC
RAM data
Waveform (signal) measuring instrument
2
ECU monitor
1
Signal input terminal
Waveform
measurement
Measurement
target
Sample clock
(Sync signal)
Configuration change
and measurement
control
Waveform data
Data file (.mf4)
Setup operation
RAM data
The ECU Monitor Synchronization Option is a software application that displays waveforms
measured by a waveform measuring instrument and RAM data acquired by an ECU monitor in sync
based on a sample clock and enables analysis of the data.
The sample clock generated by the measuring instrument is applied to the ECU monitor.
The waveforms and RAM data are displayed in sync on a PC monitor by loading the measured
waveform data and the ECU monitor’s RAM data.
If the ECU monitor is a RAMScope, initialize all settings related to RAM-value measurements using
RAMscope V/VP, and then perform operations on the IS8000.
1 For information on compatible ECU monitors, see section 4.1 in this manual.
2 For information on compatible YOKOGAWA waveform measuring instruments, see section 4.3 in this
manual.
