<15. OPERATION OF SENCOM pH/ORP>
15-6
IM 12A01A02-01E 8th Edition : Oct. 01, 2015-00
Next
20
12
4
mA
15.00
HOLD
FAIL
WASH
Next
pH: Zero 0.000mV
Slope 100.0 %
Sensor 1.234 mV
ORP: Zero 0.000 mV
Slope 100.0 %
Sensor -1.567 mV
Impedance 1 BAD
Impedance 2 124.6 kΩ
Next
Sesor wellness:
Zero
Slope
Input 1 imp. – – – –
Input 2 imp. – – – –
Heat cycle – – – –
Progress Time – – – –
Reset welness data
Next
SENCOM sensor status1:
Max temp.exposed 35.0°C
High pH total time 50 h.
Low pH total time 27 h.
Sterilization 7
Last date of Sterilization
2013/02/28 10:11:12
Next
2013/02/21 16:04:07
Last calibrated at
-------- ------
Calibration due at
-------- ------
Projected maintenance
-- (no meaning)
Projected replacement
-- (no meaning)
Next
SENCOM module:
Module Pdn No. AAAA1111
Software Revision 1.10
Next
SENCOM sensor status2:
High temp.1 total. 107 h.
Last date of High temp.1
2013/03/01 13:14:15
High temp.2 total. 63 h.
Last date of High temp.2
2013/03/01 12:13:14
Next
SENCOM sensor:
Moddel dode FU20F
Software Revision 1.10
Assy Revison 1.10
Serial Number CCCC3333
Fact date 2013/02/20
Next
HOUSING ASSY:
Module Pdn No. BBBB2222
Software Revision 2.10
HART Device Revision 2
Next
New sensor?
“Yes” resets
sensor wellness data.
Yes
No
Reset wellness data
(Fig.15.9)
*
*: This screen is displayed only if the PH201G distributor is used and “PH201G” is selected in communication setup.

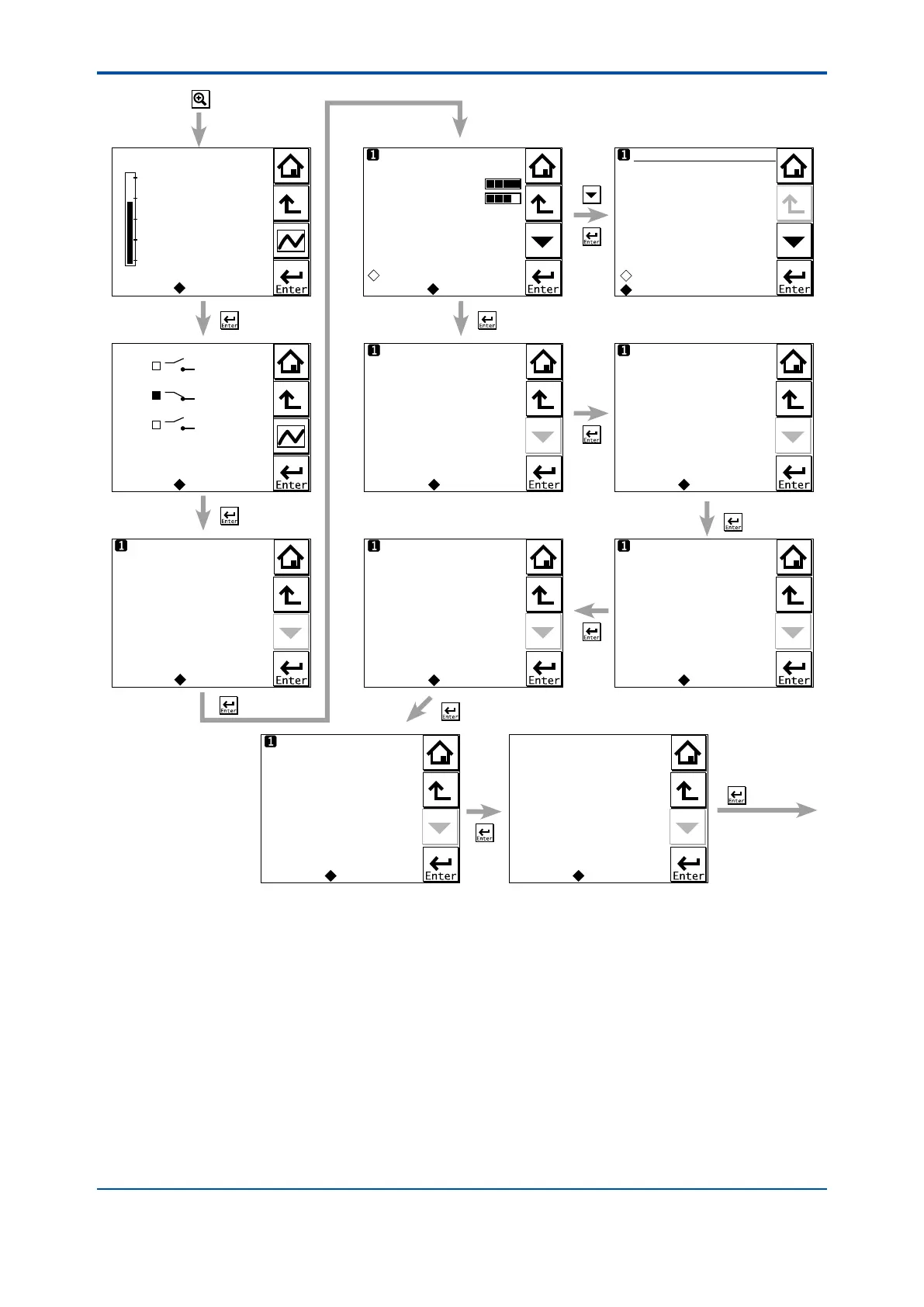

Figure 15.5 Detail display
n Current output mA
= current output in mA. The range and function of this mA output can be set in Commissioning →
Output setup → mA.
For details, see section 16.3.
n Contact status
This screen is displayed only if the PH201G distributor is used and “PH201G” is selected in
communication setup.
To Next Page
