No. Name Function
7 ESC key Returns to the previous operation or returns
to the measurement screen from the setup
screen.
8 ENTER key Confirms an operation or setting.
9 0ΩADJkey
(SET UP key)
Turnsonandoffthe0ΩADJfunctionforlow-
resistance measurement.
(This key is also used to set various
functions.)
10 SELECT key Whentherangeswitchissetto125V/100
V,holdingthiskeydownfor1second
switchestherangebetween100Vand125
V.WhentherangeswitchissettoV/Ω,
pressing this key switches the mode between
voltage measurement and low-resistance
measurement.
11 Range switch Selects the voltage for insulation resistance
measurement and switches between voltage
and low-resistance measurement.

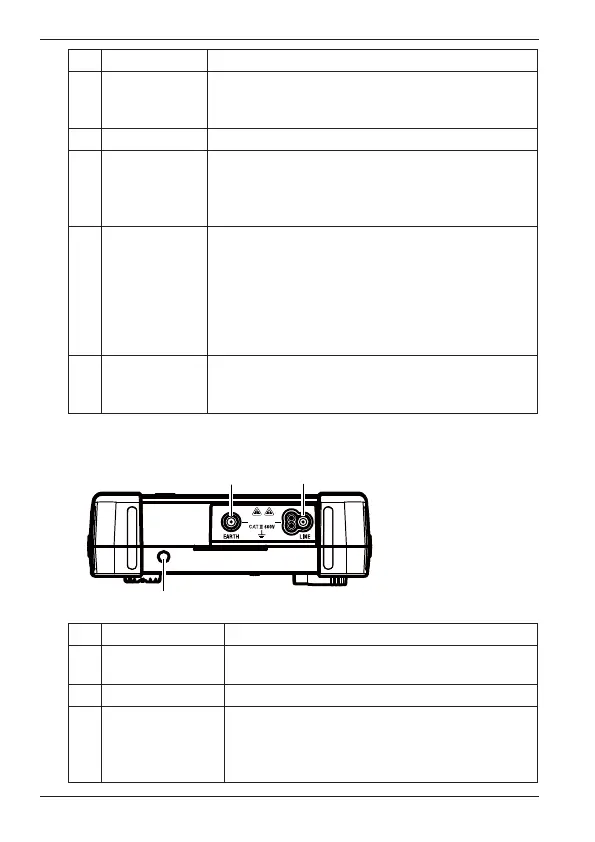

Side Panel
600 V MAX
1
2
3
No. Name Function
1 LINE terminal Connect a 98008 line probe with remote
switch here.
2 EARTH terminal Connect a 98009 earth probe set here.
3 LED light This is a light for illuminating the point of
measurement. The illuminance sensor
senses the ambient brightness and
automatically turns the light on and off.
