Customer
Maintenance
Parts List
©Copyright 2007, 1st Edition: Mar, 2007 (YK)
Subject to change without notice.
CMPL 12B07D02-03E
2nd Edition : Aug.2007 (YK)

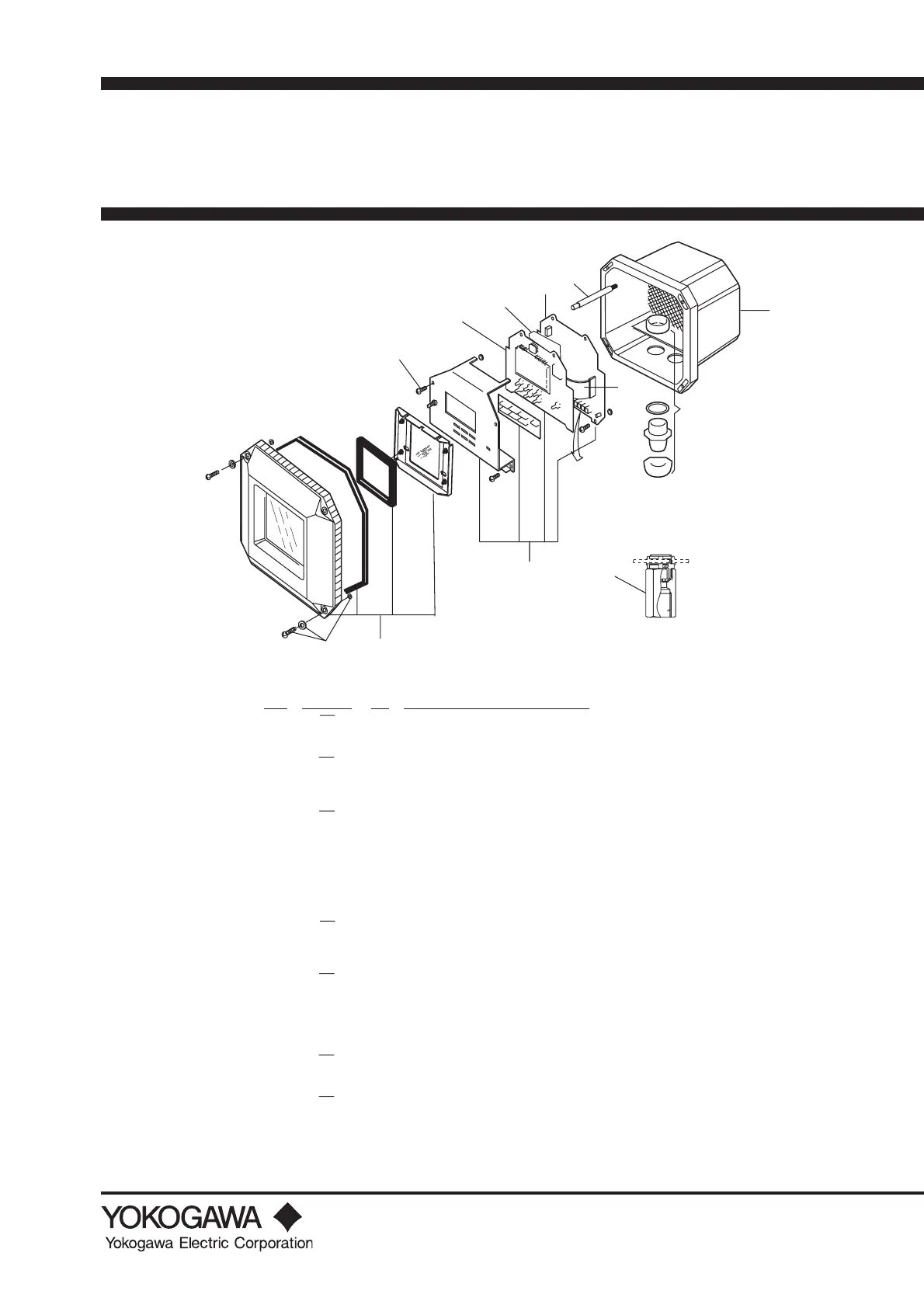

Model PH202G [Style : S3]
2-wire pH/ORP Transmitter
1
5
2
8
9
10
14
Item Part No. Qty Description
1 Cover Assembly
K9315CA 1 Polyurethane Coating
K9315CN 1 Epoxy-polyester Coating
2 Internal Works Assembly with amplifier assembly
K9661AD 1 For mA + HART
K9661AE 1 For FF
K9661AF 1 For Profibus
3 Housing Assembly
K9661HA 1 Polyurethane Coating
K9661HB 1 Epoxy-polyester Coating
4 L9811FV 2 Cable Gland Assembly
5 K9660AQ 1 Flat Cable
6 A1726JD 1 Pin Terminal Unit 3 terminals type
7 K9184AA 1 Screw Terminal Unit when /TB specified
8 K9661HR 2 Stud
*9 Analog Board Assembly
K9661PA 1 For mA + HART
K9661PC 1 For FF/Profibus
*10 1 Digital/Display Board
K9661AV 1 For mA + HART
K9661AW 1 For FF/Profibus
11 K9660YQ 1 Screw Assembly to fix amplifier
12 K9660YP 1 Stainless steel screw assembly to fix cover
13 Adapter Assembly
K9414DH 1 For G1/2 screw when /AFTG specified (2 units).
K9414DJ 1 For 1/2NPT screw when /ANSI specified (2 units).
*14 Comm. Board Assembly
K9661MA 1 For FF
K9661NA 1 For Profibus
* Do not exchange these parts. Call service personnel.
12
11
3
4
6,7
13
To Next Page
