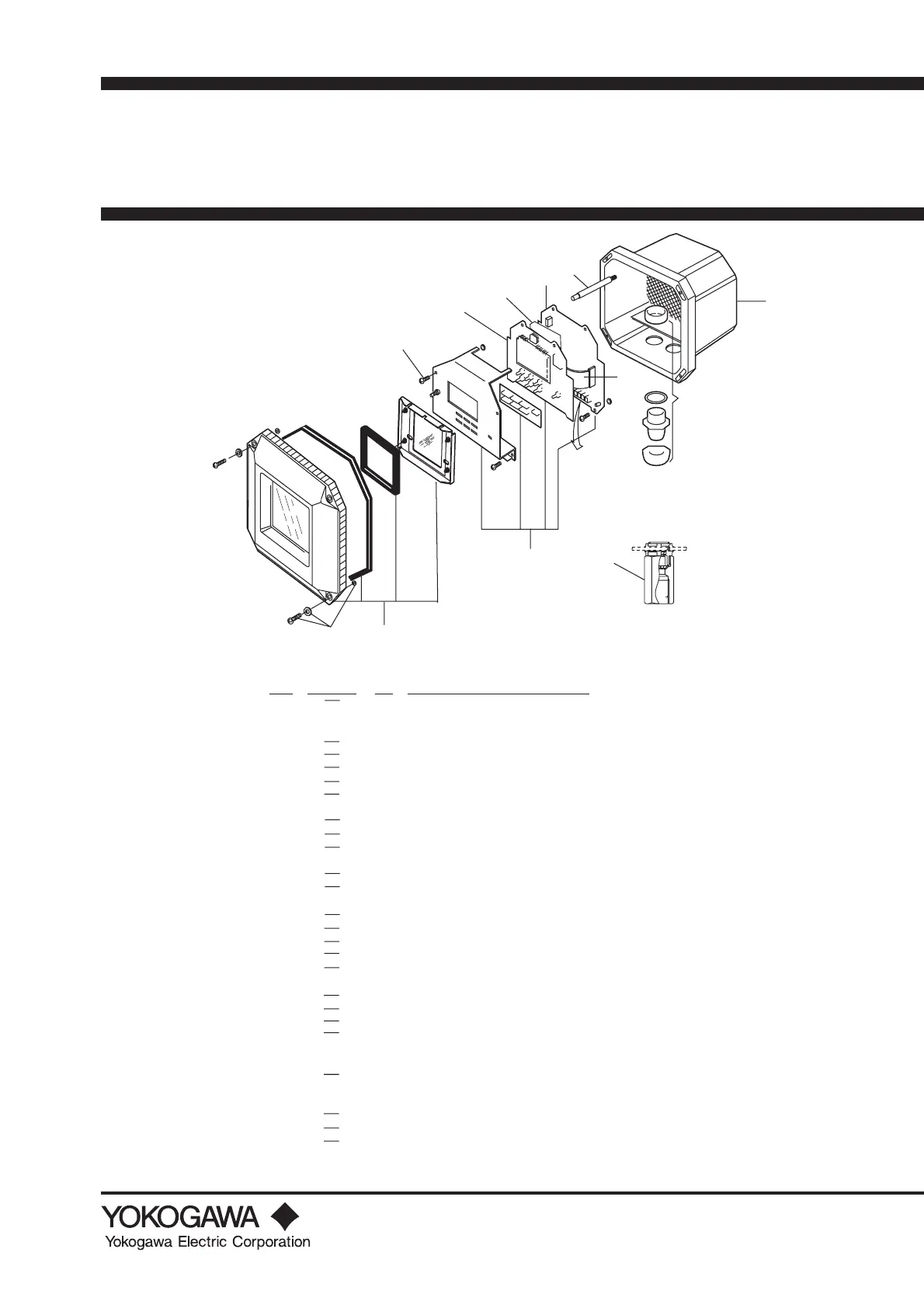

Model PH202S [Style : S3]
2-wire pH/ORP Transmitter
1
5
2
8
9
10
14
Item Part No. Qty Description
1 Cover Assembly
K9315CA 1 Polyurethane Coating
K9315CN 1 Epoxy-polyester Coating
2 Internal Works Assembly with amplifier assembly
1 For mA + HART
1 For FF
1 For Profibus
1 For mA + HART (Non-incendive)
3 Housing Assembly
1 Polyurethane Coating
1 Epoxy-polyester Coating
4 L9811FV 2 Cable Gland Assembly
5 1 Flat Cable
6 1 Pin Terminal Unit 3 terminals type
8 2 Stud
9 Analog Board Assembly
1 For mA + HART
1 For FF/Profibus
1 For mA + HART (Non-incendive)
10 1 Digital/Display Board
1 For mA + HART
1 For FF/Profibus
11 1 Screw Assembly to fix amplifier
12 K9660YP 1 Stainless steel screw asssembly to fix cover
13 Adapter Assembly
K9414DH 1 For G1/2 screw when /AFTG specified (2 units).
K9414DJ 1 For 1/2NPT screw when /ANSI specified (2 units).
14 Comm. Board Assembly
1 For FF
1 For Profibus
