When Connecting SAI533
1A 2A 3A 4A 5A 6A 7A 8A 9A 10A 11A 12A 13A 14A 15A 16A 17A 18A
OUT1+
N.C.
OUT2+
N.C.
OUT3+
N.C.
OUT4+
N.C.
OUT5+
N.C.
OUT6+
N.C.
OUT7+
N.C.
OUT8+
N.C. N.C. N.C.
OUT1-
N.C.
OUT2-
N.C.
OUT3-
N.C.
OUT4-
N.C.
OUT5-
N.C.
OUT6-
N.C.
OUT7-
N.C.
OUT8-
N.C. N.C. N.C.
1B
Signal Name
Signal Name
TM1, TM2
Terminal No.
2B 3B 4B 5B 6B 7B 8B 9B 10B 11B 12B
13B 14B 15B 16B 17B 18B
N.C. : No Connection

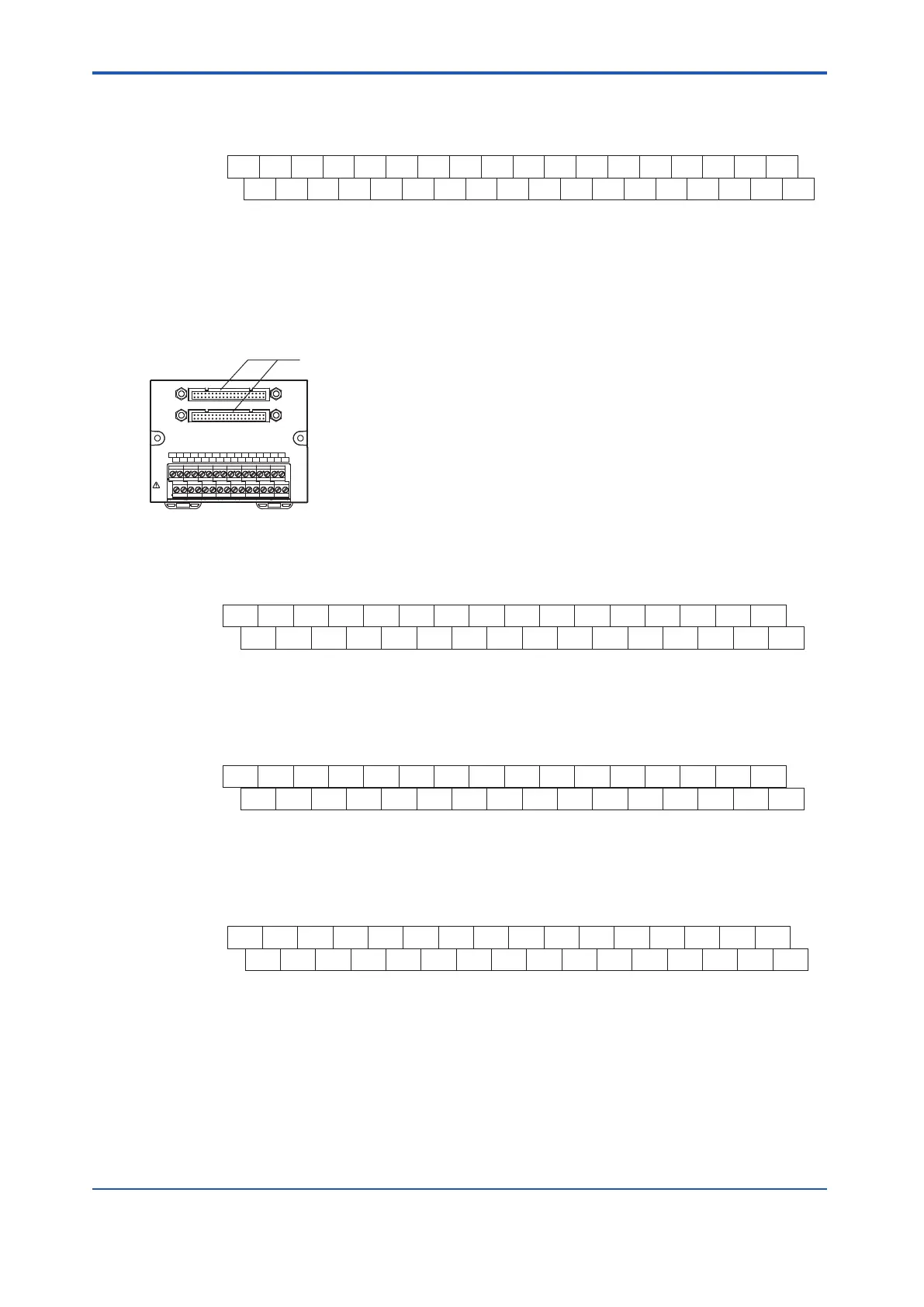

Figure 5.3.4-4 SAI533 Signal Name and Terminal Number
n
Connection Between SBA4D and an Input/Output Module
Connect to both the CN1 and CN2
connectors if the I/O modules are used
in a dual-redundant configuration.
CN1
CN2
1A 2A 3A 4A 5A 6A 7A 8A 9A 10A 11A 12A 13A 14A 15A 16A
1B 2B 3B 4B 5B 6B 7B 8B 9B 10B 11B 12B 13B 14B 15B 16B
Figure 5.3.4-5 SBA4D Terminal Board
l
When Connecting SAI143
1A 2A 3A 4A 5A 6A 7A 8A 9A 10A 11A 12A 13A 14A 15A 16A
IN1A IN2A IN3A IN4A IN5A IN6A IN7A IN8A IN9A IN10A IN11A IN12A IN13A IN14A IN15A IN16A
IN1B IN2B IN3B IN4B IN5B IN6B IN7B IN8B IN9B IN10B IN11B IN12B IN13B IN14B IN15B IN16B
1B
Signal Name
Signal Name
2B 3B 4B 5B 6B 7B 8B 9B 10B 11B 12B 13B 14B 15B 16B
Terminal No.
Figure 5.3.4-6 SAI143 Signal Name and Terminal Number
l
When Connecting SAV144
1A 2A 3A 4A 5A 6A 7A 8A 9A 10A 11A 12A 13A 14A 15A 16A
IN1+ IN2+ IN3+ IN4+ IN5+ IN6+ IN7+ IN8+ IN9+ IN10+ IN11+ IN12+ IN13+ IN14+ IN15+ IN16+
IN1- IN2- IN3- IN4- IN5- IN6- IN7- IN8- IN9- IN10- IN11- IN12- IN13- IN14- IN15- IN16-
1B 2B 3B 4B 5B 6B 7B 8B 9B 10B 11B 12B 13B 14B 15B 16B
Signal Name
Signal Name
Terminal No.
Figure 5.3.4-7 SAV144 Signal Name and Terminal Number
l
When Connecting SAI533
1A 2A 3A 4A 5A 6A 7A 8A 9A 10A 11A 12A 13A 14A 15A 16A
1B 2B 3B 4B 5B 6B 7B 8B 9B 10B 11B 12B 13B 14B 15B 16B
OUT1+ N.C. OUT2+ N.C. OUT3+ N.C. OUT4+ N.C. OUT5+ N.C. OUT6+ N.C. OUT7+ N.C. OUT8+ N.C.
OUT1- N.C. OUT2- N.C. OUT3- N.C. OUT4- N.C. OUT5- N.C. OUT6- N.C. OUT7- N.C. OUT8- N.C.
Signal Name
Signal Name
Terminal No.
N.C. : No Connection
Figure 5.3.4-8 SAI533 Signal Name and Terminal Number
<5.3 Signal Cable Connection to Analog Input/Output Modules > 5-20
IM 32Q06C10-31E 4th Edition : Jan.30,2015-00
