YOKOGAWA SSC60D User Manual

Table 5.6-2 Relationship Between Digital Input/Output Modules and Terminal Boards (T
able continued)
Digital input/output module (type) Connectable terminal board (type)
SDV53A SED3D/SBD3D
SDV541 SED4D/SBD4D
l
Digital Input Module : SDV144
The following figure shows a connection to a 19-inch rack mountable terminal board.
DCn
INn
DCn
24VDC
INn
COM
24VDC
24V DC
COM
CBSE
CBSE
CBSE
CBSE
CBSE
IN
Digital input module
Signal cable
interface adapter
Signal cable
Terminal board
n : channel number

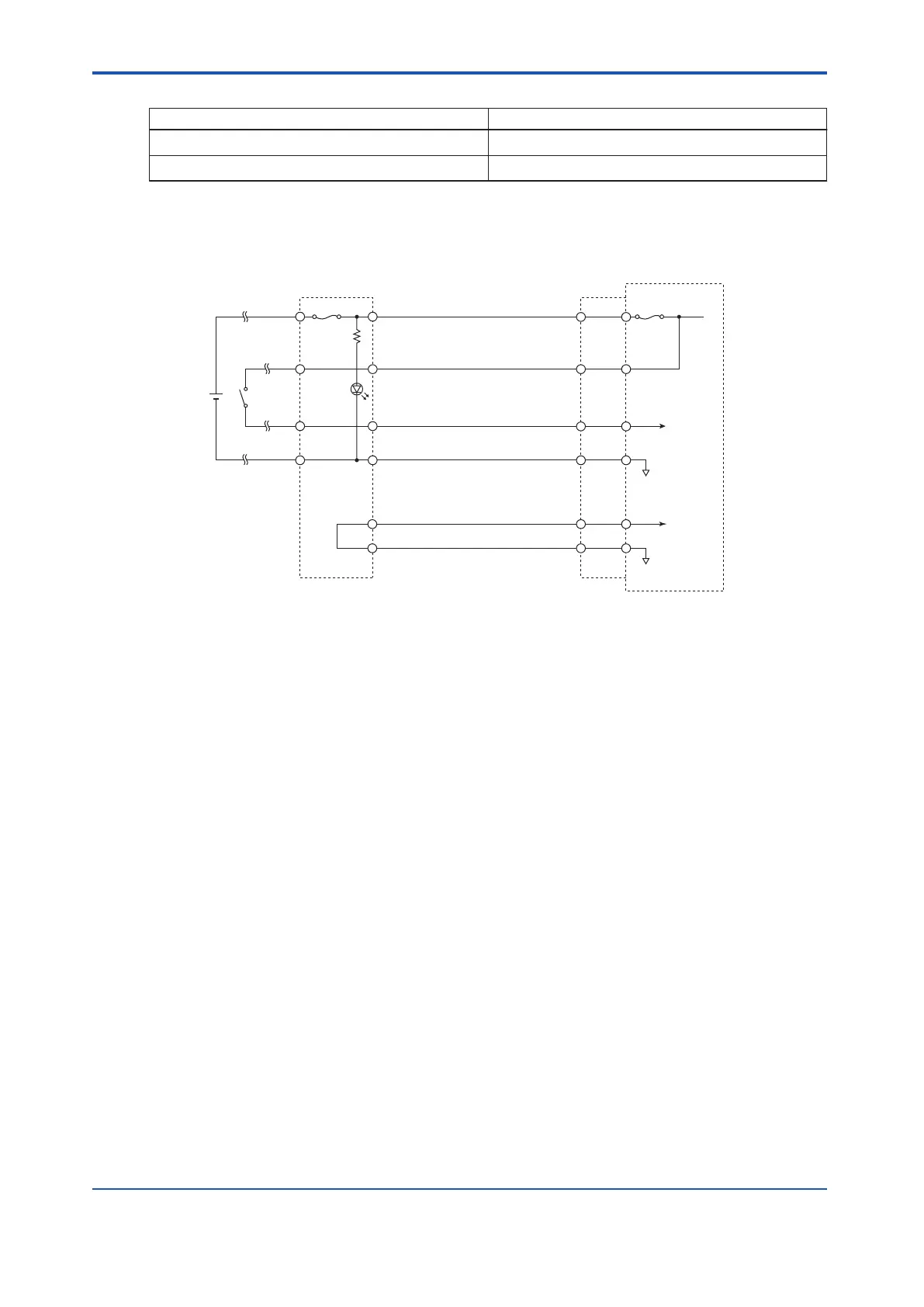

Figure 5.6-6 SDV144 Circuit Diagram
The following figure shows a connection to a DIN rail mountable terminal board.
<5.6 Circuit Diagrams of Input/Output Modules > 5-50
IM 32Q06C10-31E 4th Edition : Jan.30,2015-00
