YOKOGAWA SSC60D User Manual

Battery pack
Elastic clip
Cable (red facing upward)
Cover
Battery expiration date
label (accessory)
Cable connector
CN2 connector
Battery ON/OFF
switch
Processor module
Battery pack

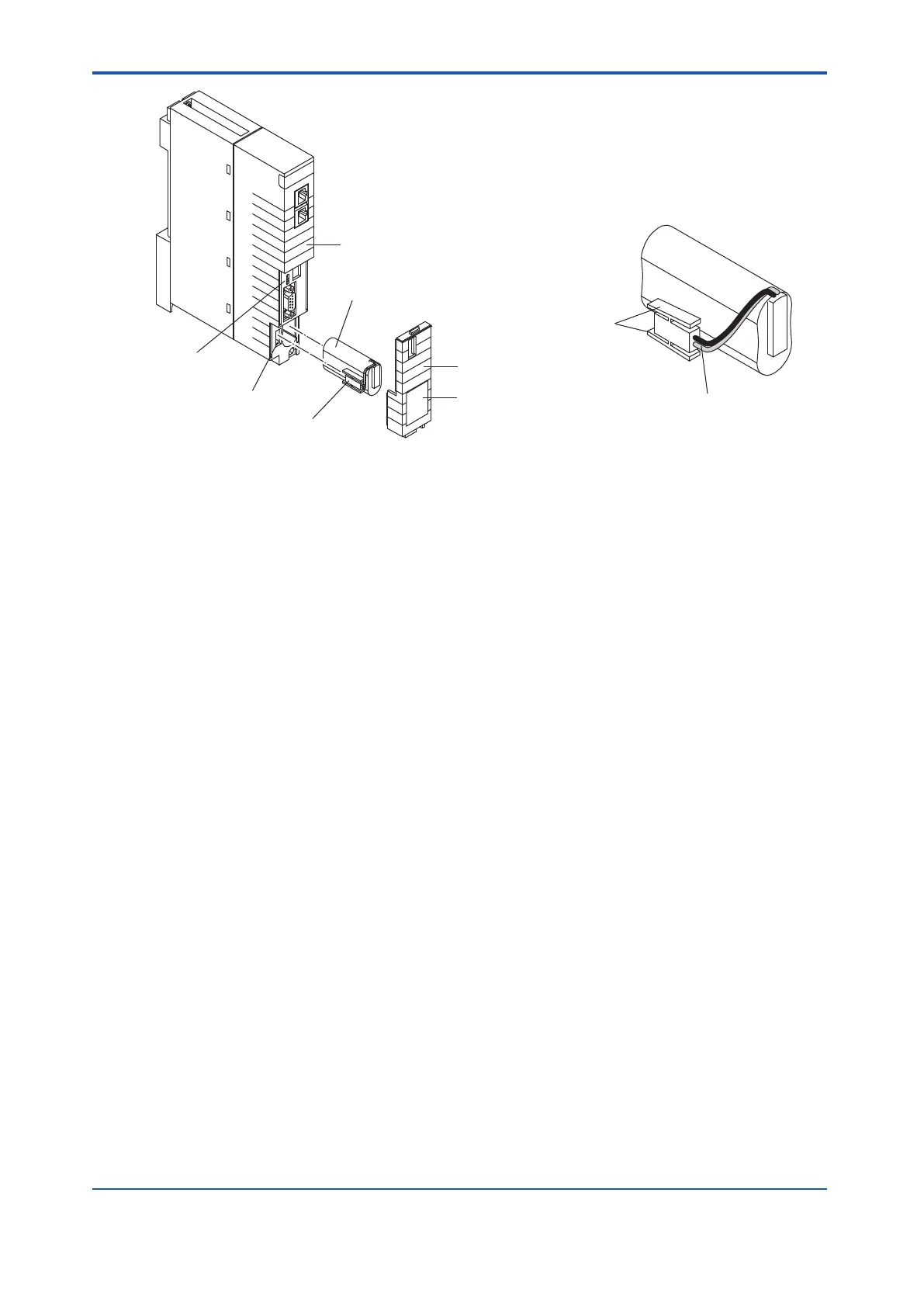

Figure 7.7.1-3 Replacement of Battery
2. Connect the battery cable to the connector.
Make sure the connection is firm and the red wire is facing upward.
3. Turn the battery ON/OFF switch to ON position. Put the front cover back.
4. Stick the battery expiration date label to the front cover.
<7.7 Parts Requiring Periodical Replacement > 7-36
IM 32Q06C10-31E 4th Edition : Jan.30,2015-00
