YOKOGAWA SSC60D User Manual
4
of 1
of 1 rating
265 pages
Give review
Manual
Specs
To Next Page
To Next Page
To Previous Page
To Previous Page
Loading...
n
SRM54D
RL
1
RL
8
RL
9
RL
16
24VDC
COM
OUT1
COM1
1
8
OUT8
SDV541
AKB331
SDV144
AKB331
SRM54D
CBSE
COM8
24VDC
+
-
COM
OUT1
COM1
OUT8
COM8
OUT9
COM9
9
16
1
16
1
16
OUT16
CBSE
CBSE
CBSE
COM16
24VDC
24VDC
COM
COM
DC+1
DC+1
IN1
IN1
DC+16
DC+16
IN16
IN16
OUT9
COM9
OUT16
COM16
16B
16A
9B
9A
8B
8A
1B
1A
TM2
TM1
External Power Supply
Relay unit
Relay Outputs
Relay Outputs

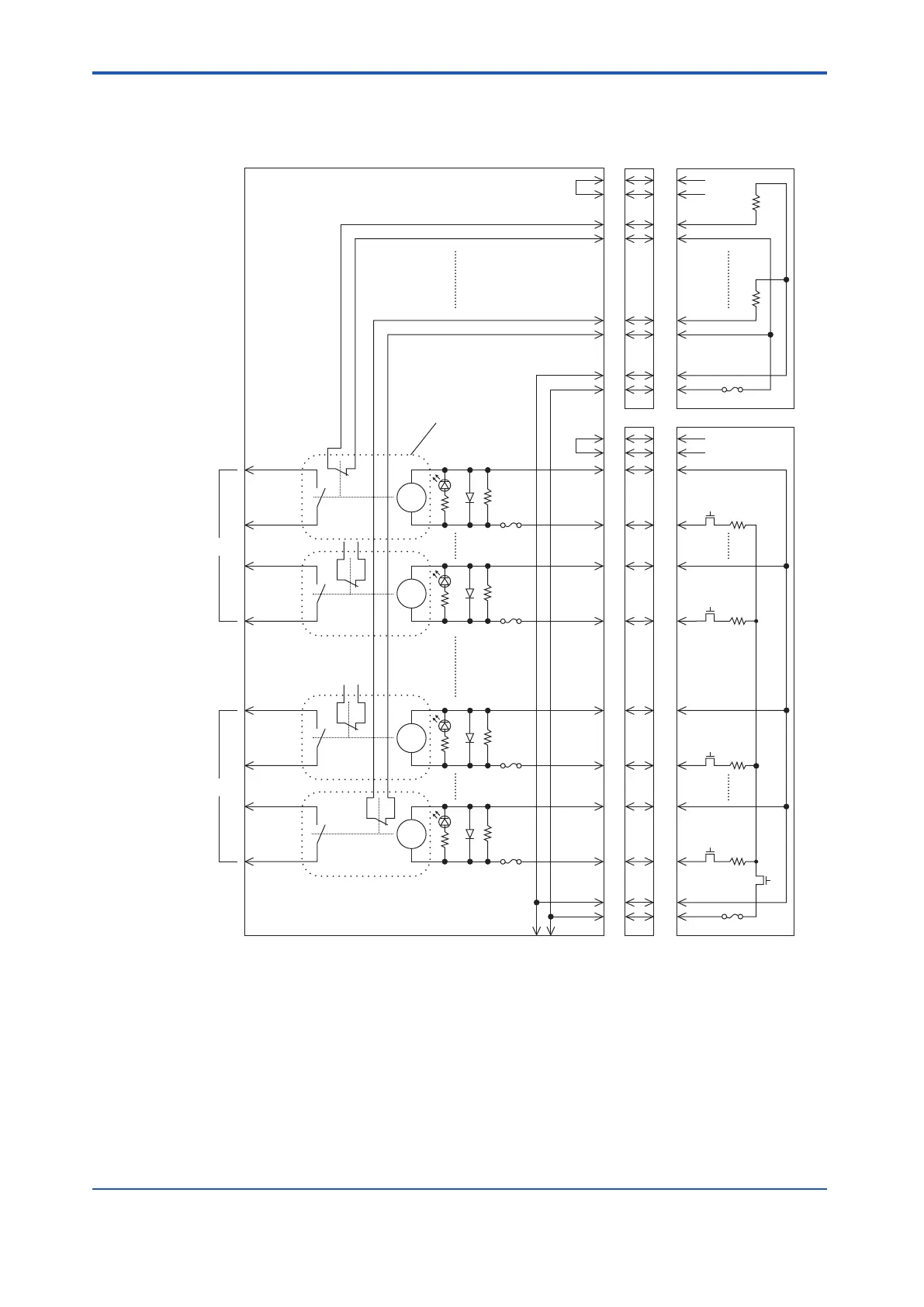

Figure 8.4-2 SRM54D Circuit Diagram
<8.4 Circuit Diagram >
8-16
IM 32Q06C10-31E
4th Edition : Jan.30,2015-00
