n
SBM54D
24V DC
COM
24V DC
POWER1
24V DC
COM
CBSE
CBSE
CBSE
CBSE
CBSE
24V DC
POWER2
24V DC
COM
RL
READY
nA
nB
OUTn
COMn
RL
Relay board
SDV541
Signal cable
interface adapter
Signal cable
n : channel number

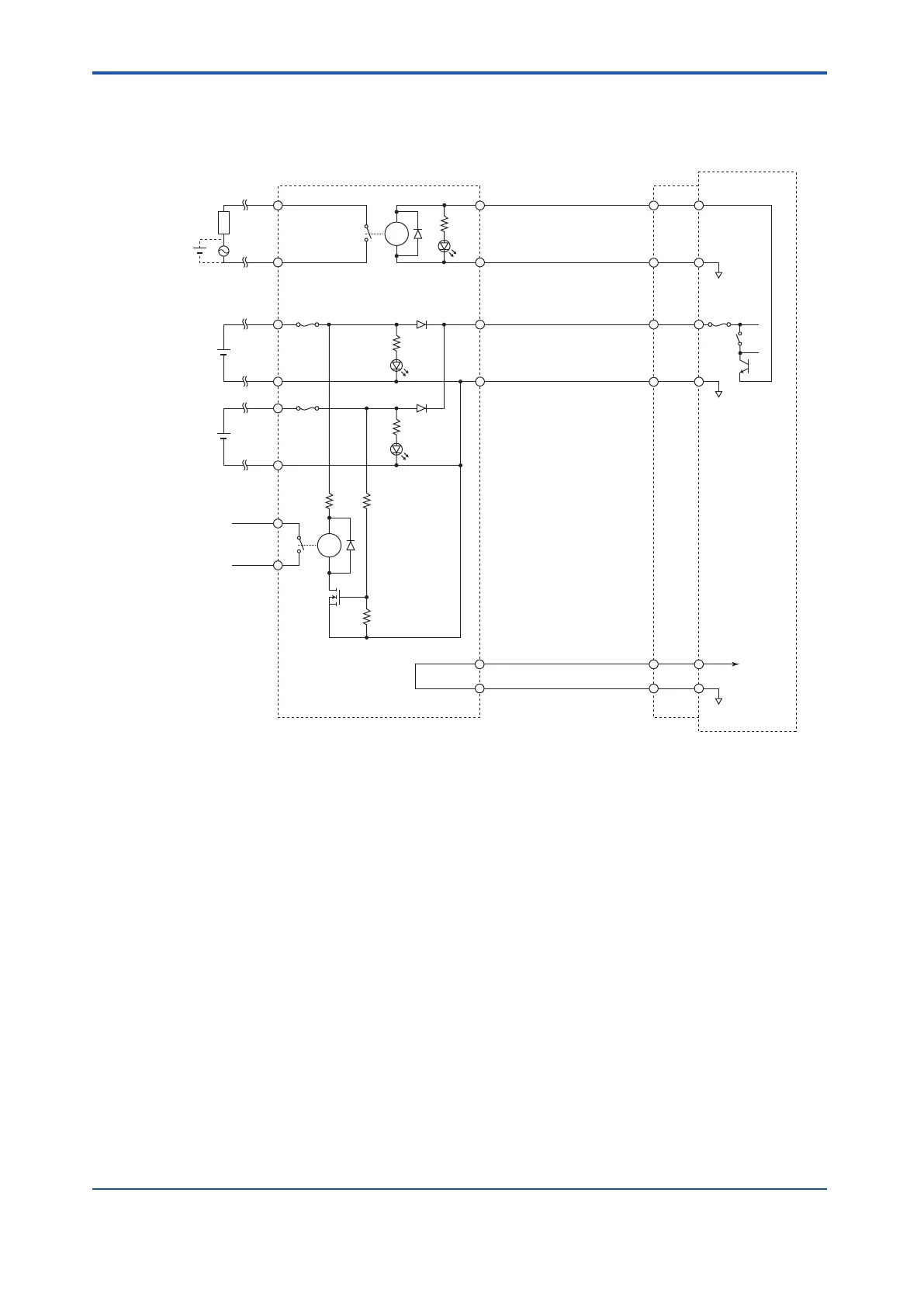

Figure 8.4-3 SBM54D Circuit Diagram
<8.4 Circuit Diagram >
8-17
IM 32Q06C10-31E
4th Edition : Jan.30,2015-00
243
245
