n
Mounting on a W
all Surface
A 19-inch rack mountable relay board can be mounted on a wall surface. When installing on a
wall, it should be installed on a flat wall surface. However, when ordering the relay board, it is
necessary to specify that the relay board needs to be mounted on a wall surface. The holes
on the wall surface and the mounting fittings need to be prepared beforehand according to the
actual dimensions shown in the following figure.
(482.6)
465.1
±1.6
6.35
±0.2
6.35
±0.2
Mounting Area
Unit: mm
165.1
±0.4
(177.8)
M5 screw, 4 positions
8.75

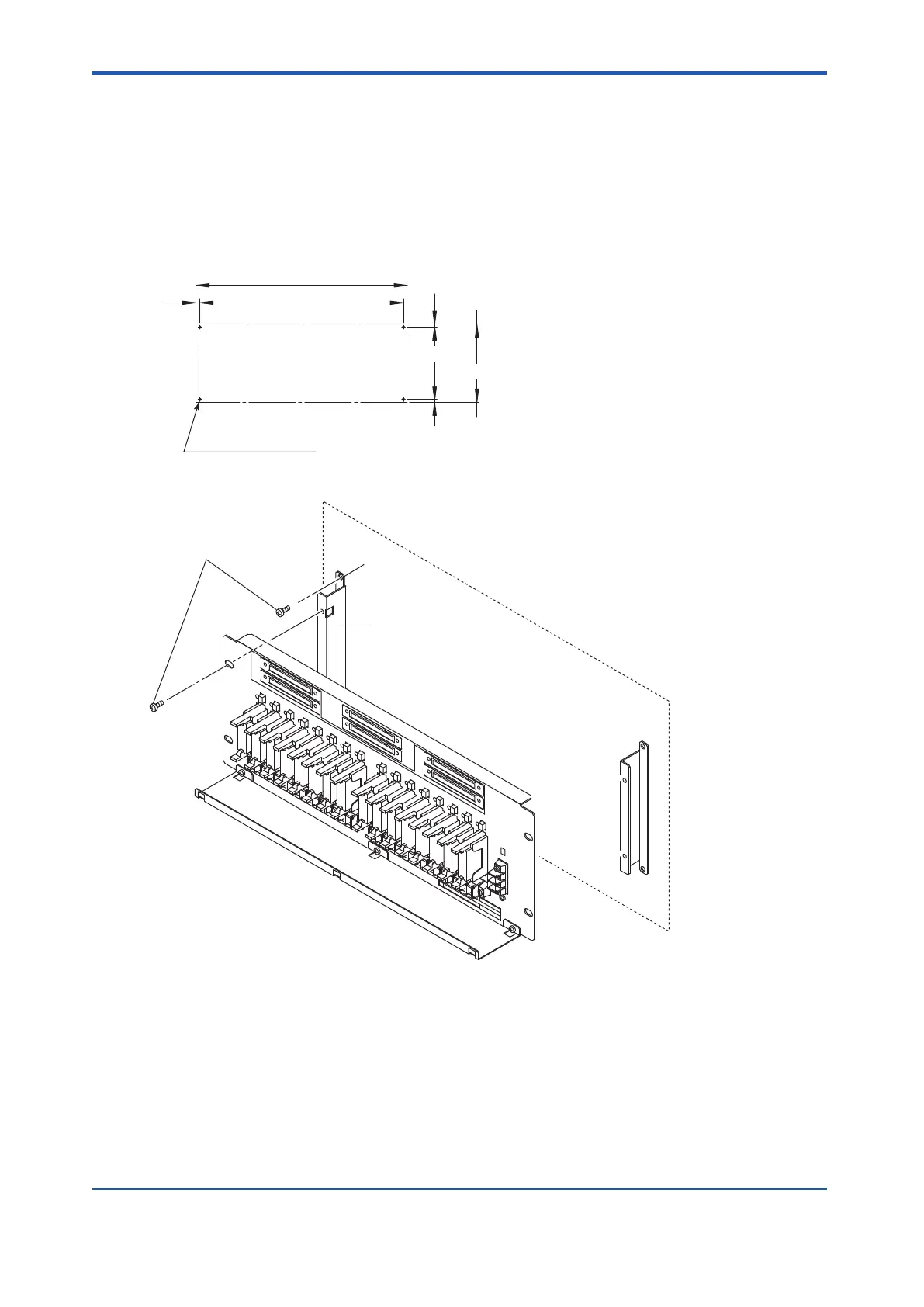

Figure 8.5.1-3 Wall Surface Mounting Dimensions
Fix on a
wall surface
M5 screw
Wall Mounting Fittings
Figure 8.5.1-4 Mounting on a Wall Surface
l
Installation Procedure
1.
Use the M5 screws to fix the attached mounting fittings on the wall surface at the left and
right locations (as shown in the previous figure).
2. Use the M5 screws to fix the relay board to the mounting fittings on the wall surface.
<8.5 Maintenance > 8-20
IM 32Q06C10-31E 4th Edition : Jan.30,2015-00
To Next Page
