Installing and Uninstalling from a DIN Rail
l
Procedure for Mounting onto a DIN Rail
1.
Tilt the relay board so that you can lift the bottom part of the relay board up towards you.
Align the three attachment grooves (groove a) with the upper part of the DIN rail.
Groove a
Groove b
1. Hook
2. Press in
DIN rail

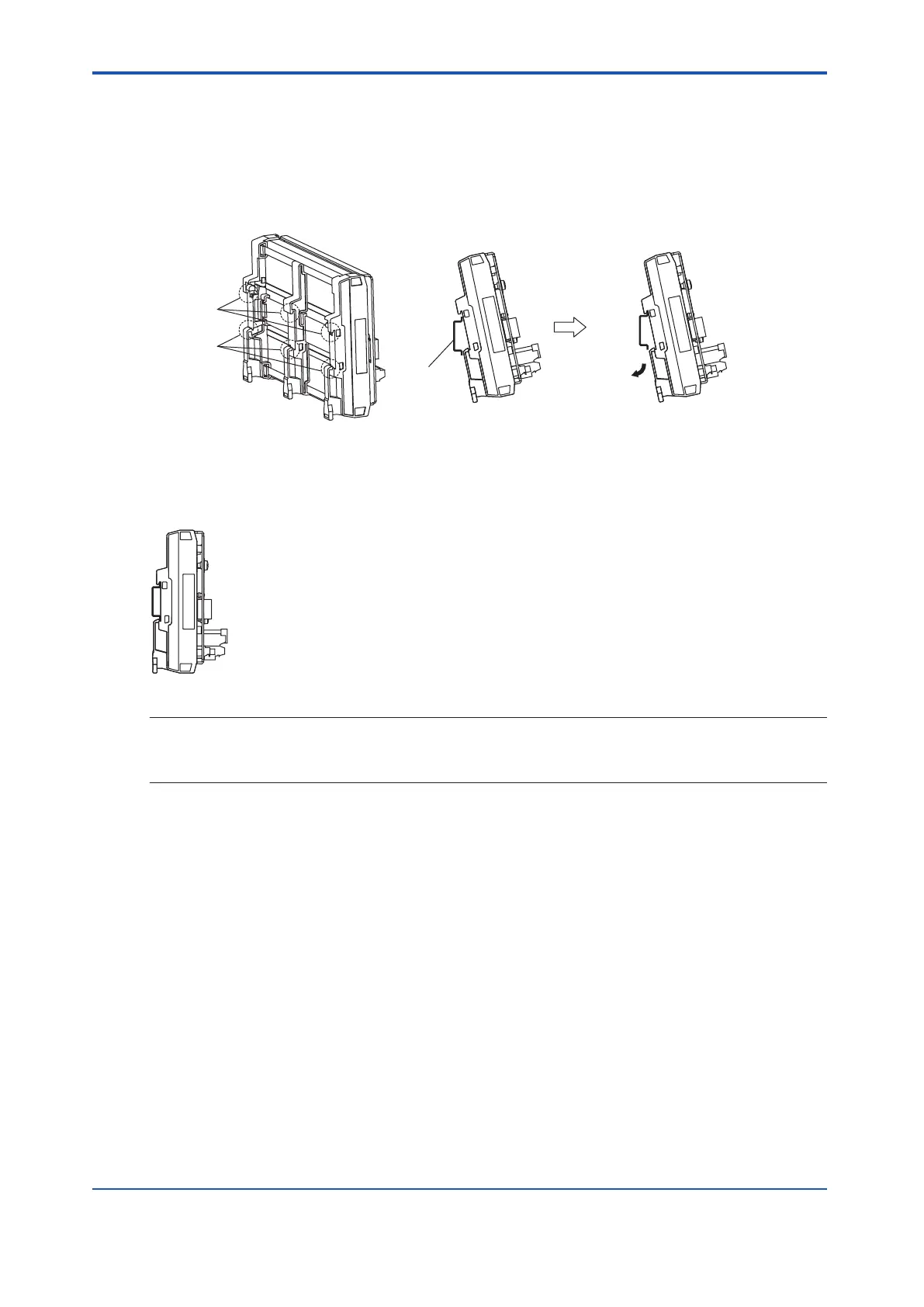

Figure 8.5.1-5 Mounting onto a DIN rail (1/2)
2.
Push the tilted relay board until it becomes vertical.
The grooves of attachment b will hook onto the lower part of the DIN rail. Once mounted
onto the DIN rail, the unit should look like the following figure.
Figure 8.5.1-6 Mounting onto a DIN rail (2/2)
SEE
ALSO
For more information about installation direction for DIN rail mountable terminal boards, refer to:
“n Terminal Board Installation Direction” on page 2-10
l
Procedure for Uninstalling from a DIN Rail
1.
Place your finger into the gap at the back of the relay board and push part A in the follow-
ing figure in the direction shown in the figure.
The hook on part B in the figure moves downward and a gap is created between the bot-
tom of the DIN rail and groove b.
2. Gently pull the bottom of the relay board forward.
The attachment separates from the DIN rail.
3. Repeat this procedure to detach the three attachments in order and remove the relay
board.
