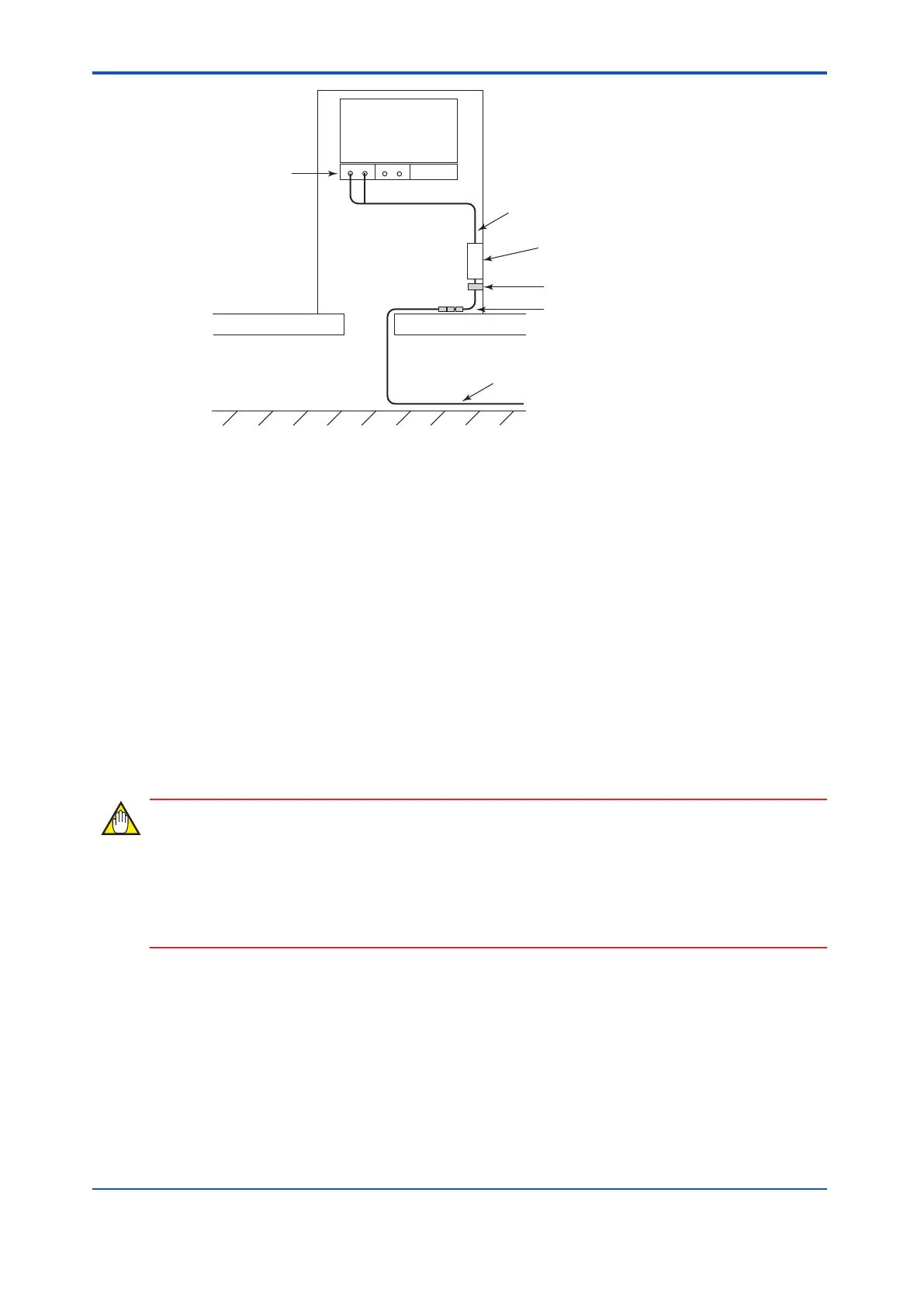

Safety control unit
Under floor level
V net branch connector
Control bus converter unit
Fixed
V net cable (10BASE-5)
V net cable (10BASE-2)
Clamp filter
Figure 3.3.1-5 Using the Control Bus Converter Unit
l
Calculating Total Distance when Using Different Cables
When using 10BASE-2 and 10BASE-5 cables, the total length of the cables must satisfy the
following formula:
Length of 10BASE-2 cable + Length of 10BASE-5 cable x 0.4 ≤ 185
Example: If Length of 10BASE-2 cable = 5 m; Length of 10BASE-5 cable= 450 m
Total Distance=5 m + 450 m x 0.4 = 185 m
Since the above lengths of cables are satisfying the formula, the total distance of V net is
within the limit.
n
Attaching Clamp Filters (Ferrite Cores)
After completing the V net cable (10BASE-5 cable) connection, attach the clamp filters (inclu-
ded with the product) to the V net cables over the cable sheath in order to improve noise iso-
lation.
The clamp filter case is made of plastic.
The clamp filter case may crack when opened and closed at a sub-zero temperature (in centi-
grade) or following a mechanical shock such as a fall. Maintain the applicable operating tem-
perature range and storage temperature range for each device.
l
Clamp Filter Set
Clamp filter is provided with V net cable (10BASE-5 cable).
•
6 ferrite cores (part No. A1179MN) per V net cable (10BASE-5 cable)
• Binding bands (ferrite core accessories)
<3.3 Connecting Control Bus Cables > 3-13
IM 32Q06C10-31E 4th Edition : Jan.30,2015-00
