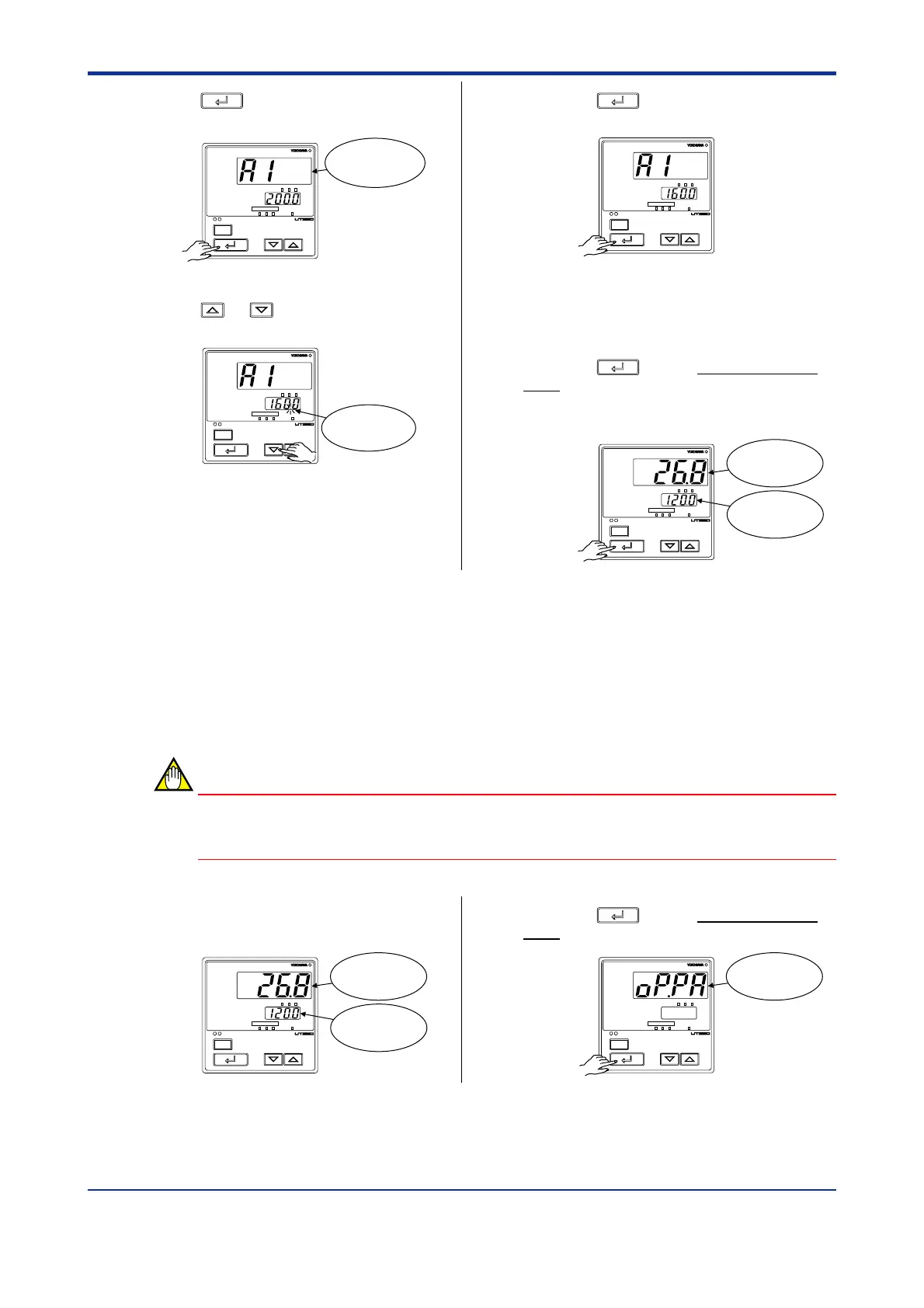

3.
Press the
SET/ENT
key twice to display the
parameter “A1”.
PV
MAN
A/M
SP
AL123
SP
234
SET/ENT
Displays
parameter
“A1”.
4.
Press the or key to display the
required setpoint.
PV
MAN
A/M
SP
AL123
SP
234
SET/ENT
Blinks during
change.
1st Edition : May 31,2000-00
5.
Press the
SET/ENT
key once to register the
setpoint.
PV
MAN
A/M
SP
AL123
SP
234
SET/ENT
Also configure the Alarm-2 Setpoint (A2)
and Alarm-3 Setpoint (A3) parameters that
follow this step.
6.
Press the
SET/ENT
key for more than 3 sec-
onds.
This returns you to the display shown at
power-on (figure below).
PV
MAN
A/M
SP
AL123
SP
234
SET/ENT
Displays
target setpoint.
Displays PV.
3.6 Selecting Target Setpoint Numbers (SP.NO)
The following operating procedure describes an example of changing a target setpoint
number (SP.NO) from 1 to 2.
NOTE
If a target setpoint number has been switched using contact input, when the contact input is
on, that number cannot be selected by keystroke.
1.
Bring the operating display into view
(display appears at power on).
PV
MAN
A/M
SP
AL123
SP
234
SET/ENT
Displays
target setpoint.
Displays PV.
2.
Press the
SET/ENT
key for more than 3 sec-
onds to call up the menu “OP.PA”.
PV
MAN
A/M
SP
AL123
SP
234
SET/ENT
Displays
menu “OP.PA”.
