<Toc> <2. Initial Settings>
2-9
IM 05D01B02-41E

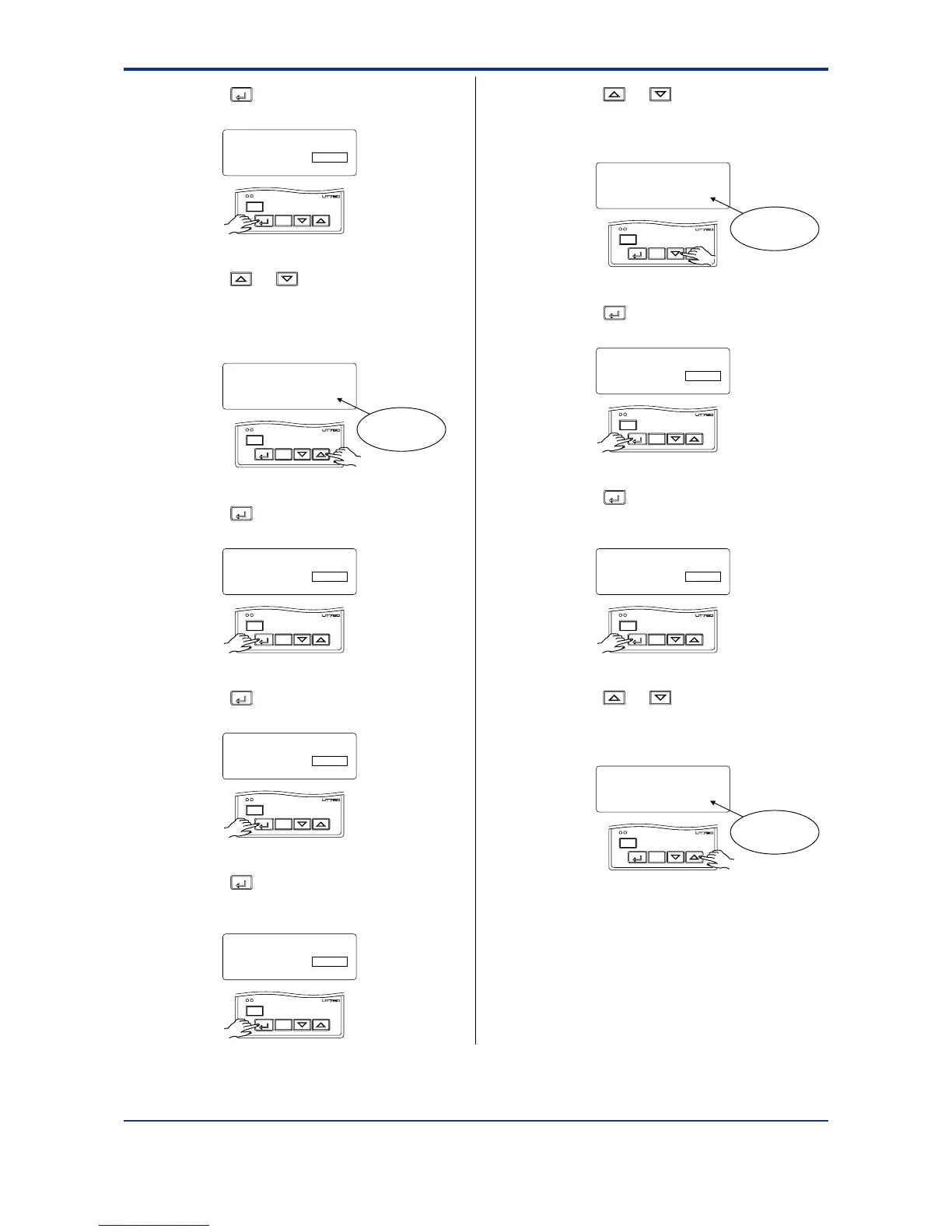

8.
Press the
SET/ENT
key once to display the
parameter “IN1” (PV input type).
SETUP
A/M
DISP
SET/ENT
MENU:UTMD/IN #1
input 1 type select
IN1 = typeK3
9.
Press the or key to display the
required setpoint. The figure below shows
an example of setting the PV input type to a
Pt100 resistance temperature detector
(-200.0⬚C to 500.0⬚C).
MENU:UTMD/IN #1
changing
input 1 type select
IN1 = Pt2
A/M
DISP
SET/ENT
Blinks during
change.
10.
Press the
SET/ENT
key once to register the
setpoint.
SETUP
A/M
DISP
SET/ENT
MENU:UTMD/IN #1
input 1 type select
IN1 = Pt2
11.
Press the
SET/ENT
key once to display the
parameter “UNI1” (PV input unit).
SETUP
A/M
DISP
SET/ENT
MENU:UTMD/IN #2
input 1 unit select
UNI1 = °C
12.
Press the
SET/ENT
key once to display the
parameter “RH1” (maximum value of PV
input range).
SETUP
A/M
DISP
SET/ENT
MENU:UTMD/IN #3
input 1 range high
RH1 = 500.0
1st Edition : May 31,2000-00
13.
Press the or key to display the
required setpoint. The figure below shows
an example of setting the maximum value
of the PV input range to 200.0⬚C.
MENU:UTMD/IN #3
changing
input 1 range high
RH1 = 200.0
A/M
DISP
SET/ENT
Blinks during
change.
14.
Press the
SET/ENT
key once to register the
setpoint.
SETUP
A/M
DISP
SET/ENT
MENU:UTMD/IN #3
input 1 range high
RH1 = 200.0
15.
Press the
SET/ENT
key once to display the
parameter “RL1” (minimum value of PV
input range).
SETUP
A/M
DISP
SET/ENT
MENU:UTMD/IN #4
input 1 range low
RL1 = -200.0
16.
Press the or key to display the
required setpoint. The figure below shows
an example of setting the minimum value
of the PV input range to 0.0⬚C.
MENU:UTMD/IN #4
changing
input 1 range low
RL1 = 0.0
A/M
DISP
SET/ENT
Blinks during
change.
