YOKOGAWA UT750 User Manual

2-10
<Toc> <2. Initial Settings>
IM 05D01B02-41E 1st Edition : May 31,2000-00

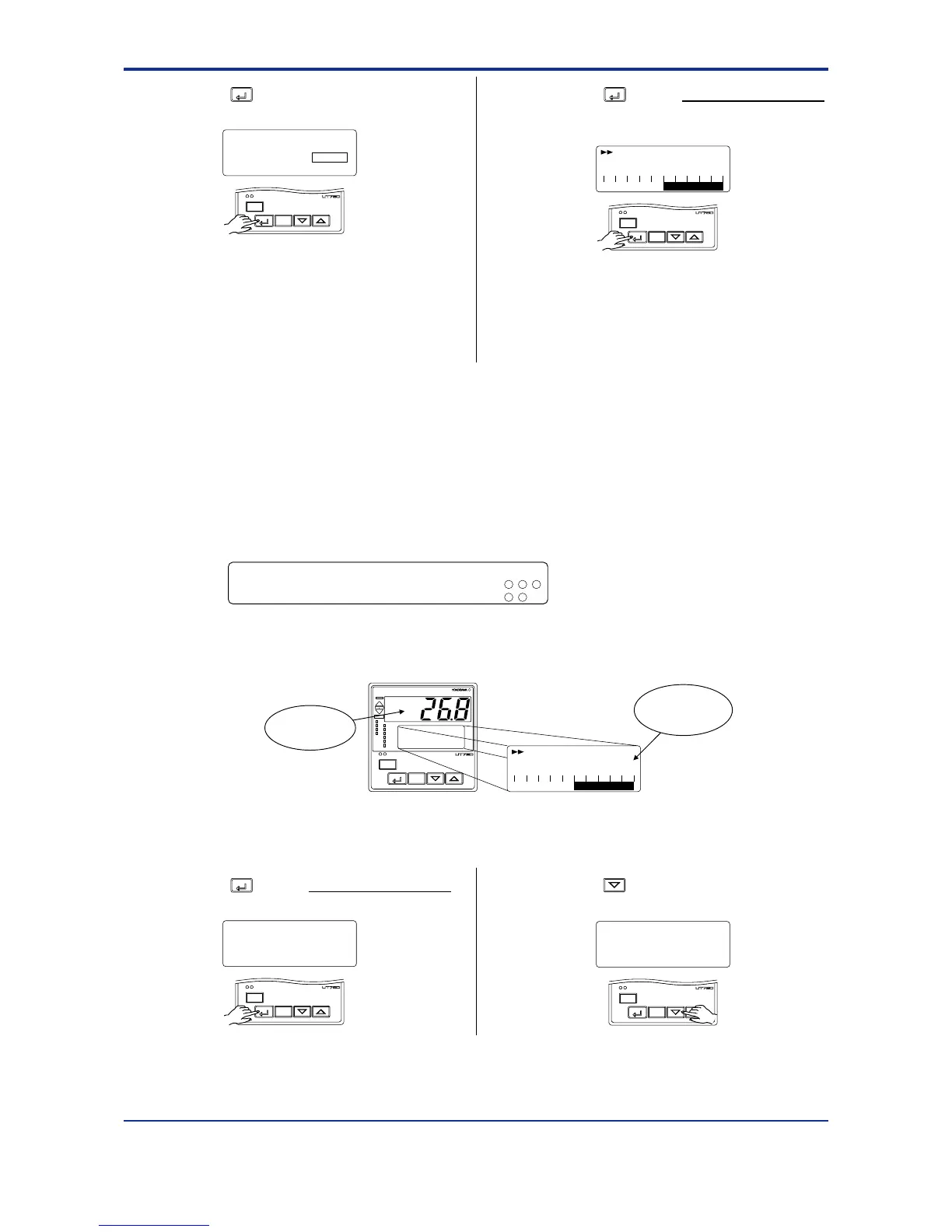

17.
Press the
SET/ENT
key once to register the
setpoint.
SETUP
A/M
DISP
SET/ENT
MENU:UTMD/IN #4
input 1 range low
RL1 = 0.0
If the type of input is voltage, also config-
ure the PV Input Decimal Point Position
(SDP1), Maximum Value of PV Input Scale
(SH1) and Minimum Value of PV Input Scale
(SL1) parameters that are displayed after
this.
18.
Press the
SET/ENT
key for more than 3 seconds.
This returns you to the display shown at
power-on (figure below).
A/M
DISP
SET/ENT
SP : 1.
-10 0 +10
0.0°C
DV
2.4 Setting Control Output Type (except for a Position
Proportional Controller)
The following operating procedure describes an example of changing time proportional PID
relay output (0: factory-set default) to current output (2).
Control output terminal
For details on the output terminals for heating/cooling control, see “
1.5
Terminal Wiring Diagrams .”
Values in parentheses are setpoints
Time proportional PID relay (0)/on-off(3) output ...........................
Current (2)/time proportional PID voltage pulse (1) output .............
--
1 2 3
-
16
17
1.
Bring the operating display into view (display appears at power-on).
AL
A/M
PV
REM1
CAS
REM2
MAN1
MAN2
STP
2
4
1
3
PV2
AL
DISP
SET/ENT
SP :1.
-10 0 +10
0.0°C
DV
Displays PV.
Displays
target setpoint-1
“1.SP”.
In steps 2 and later, illustrations of the LCD are cited to explain the procedure.
2.
Press the
SET/ENT
key for more than 3 seconds
to call up the main menu “MODE”.
mode parameter
main menu
MODE
A/M
DISP
SET/ENT
3.
Press the key once to display the main
menu “STUP”.
password input
main menu
STUP
A/M
DISP
SET/ENT
