3.7 Switching between Run and Stop
Selection between the Run state (RUN) and Stop state (STOP) can be made with contact
input 6 (DI6).

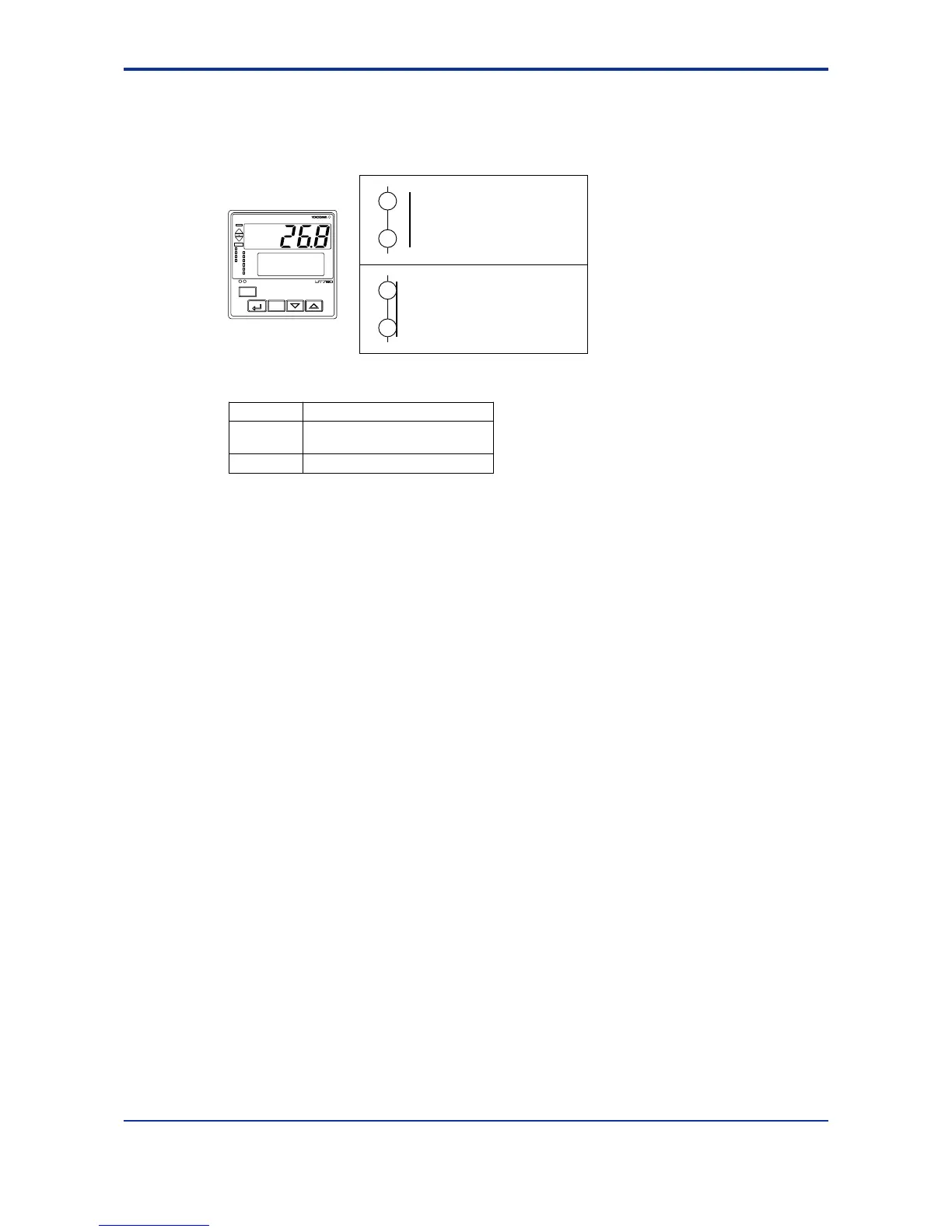

“RUN” when DI6 is set to OFF
37
20
“STOP” when DI6 is set to ON
37
20
AL
A/M
PV
REM1
CAS
REM2
MAN1
MAN2
STP
2
4
1
3
PV2
AL
DISP
SET/ENT
When at a stop, the controller behaves as described below:
PV input Displays the PV value.
Control output
Alarm output Turns the output on in case of an alarm.
Provides the preset output value
(factory-set to 0%).
