YOKOGAWA UT750 User Manual

2-8
<Toc> <2. Initial Settings>
IM 05D01B02-41E 1st Edition : May 31,2000-00

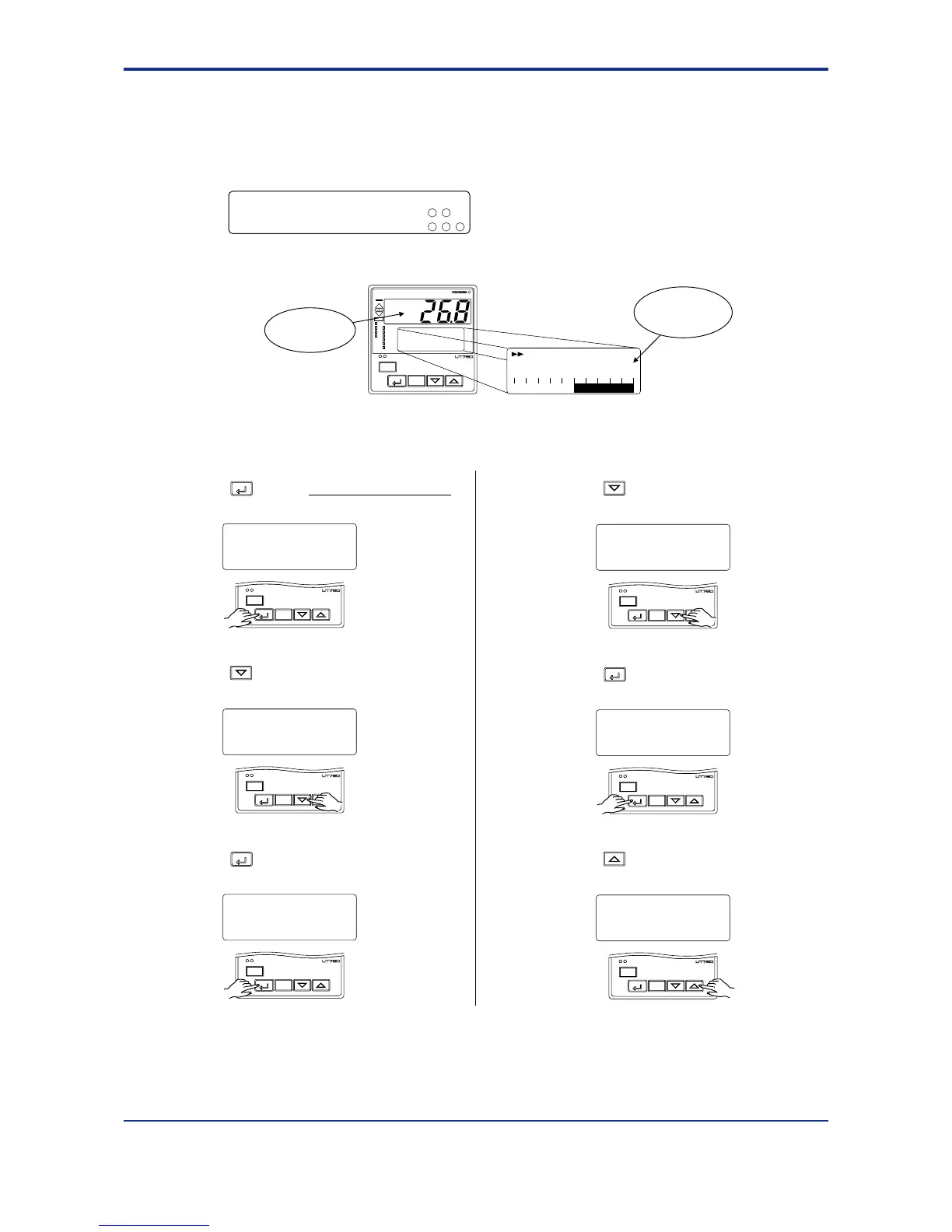

2.3 Changing PV Input Type
The following operating procedure describes an example of changing the setting of K-type
thermocouple (-200.0 to 500.0⬚C) to RTD Pt100 (-200.0 to 500.0⬚C) and a measurement
range of 0.0 to 200.0⬚C.
PV input terminal
Thermocouple/mV/V input
..............................
RTD input .................................................. --
131211
-
1312
1.
Bring the operating display into view (display appears at power-on).
AL
A/M
PV
REM1
CAS
REM2
MAN1
MAN2
STP
2
4
1
3
PV2
AL
DISP
SET/ENT
SP :1.
-10 0 +10
100.0°C
DV
Displays PV.
Displays
target setpoint-1
“1.SP”.
In steps 2 and later, illustrations of the LCD are cited to explain the procedure.
2.
Press the
SET/ENT
key for more than 3 seconds
to call up the main menu “MODE”.
mode parameter
main menu
MODE
A/M
DISP
SET/ENT
3.
Press the key once to display the main
menu “STUP”.
password input
main menu
STUP
A/M
DISP
SET/ENT
4.
Press the
SET/ENT
key once to display the main
menu “LOOP1”.
loop 1 setup para
SETUP main menu
LOOP1
A/M
DISP
SET/ENT
5.
Press the key once to display the main
menu “UTMD”.
UT750 configuration
UTMD
A/M
DISP
SET/ENT
SETUP main menu
6.
Press the
SET/ENT
key once to display the
submenu “MD”.
UT mode set
SETUP sub menu
MD
A/M
DISP
SET/ENT
7.
Press the key once to display the
submenu “IN”.
input set
SETUP sub menu
IN
A/M
DISP
SET/ENT
