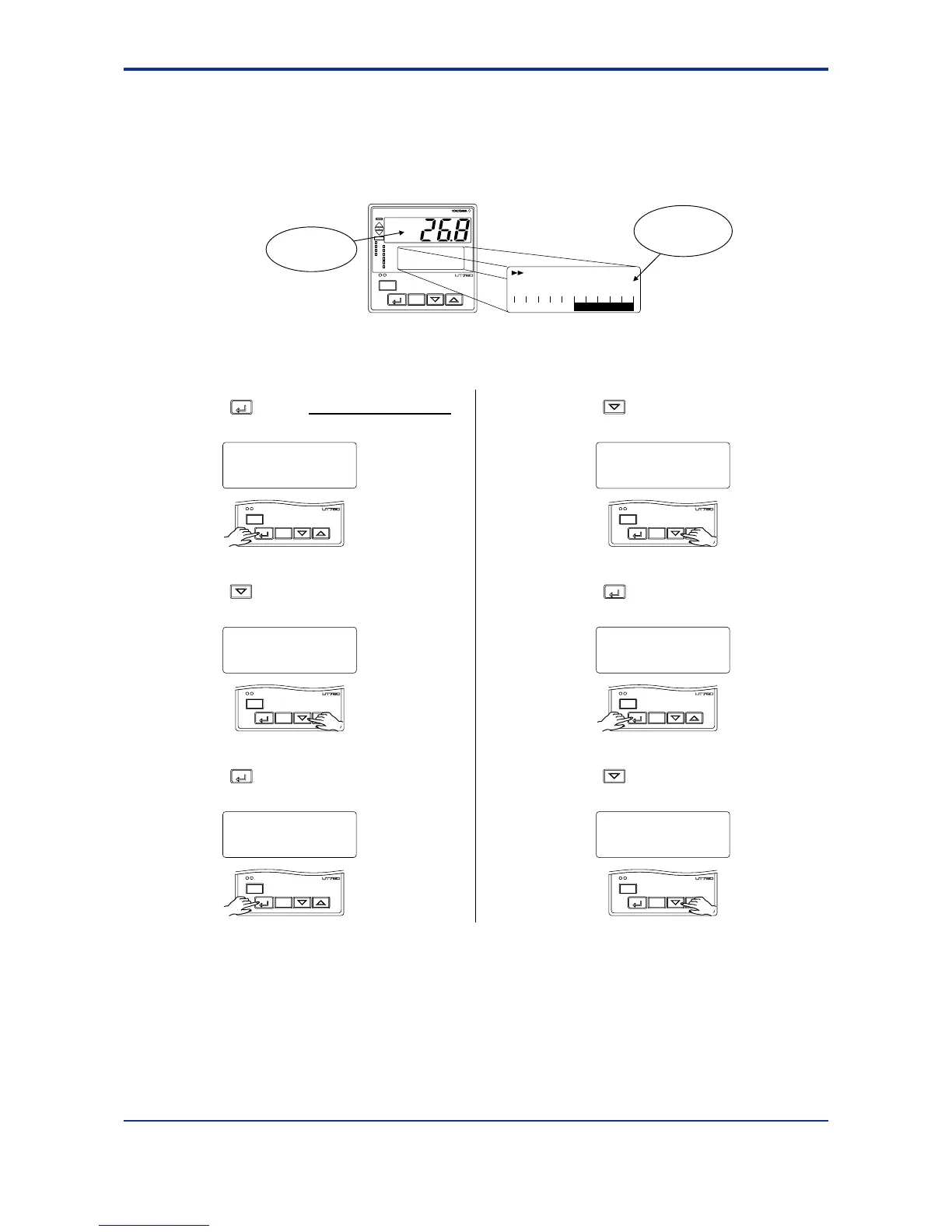

2.6 Initializing Parameters
Be sure to follow the steps below after a change of setting has been made to the data item
PV Input Type, PV Input Range or PV Input Scale.
1.
Bring the operating display into view (display appears at power-on).
AL
A/M
PV
REM1
CAS
REM2
MAN1
MAN2
STP
2
4
1
3
PV2
AL
DISP
SET/ENT
SP :1.
-10 0 +10
0.0°C
DV
Displays PV.
Displays
target setpoint-1
“1.SP”.
In steps 2 and later, illustrations of the LCD are cited to explain the procedure.
2.
Press the
SET/ENT
key for more than 3 seconds
to call up the main menu “MODE”.
mode parameter
main menu
MODE
A/M
DISP
SET/ENT
3.
Press the key once to display the main
menu “STUP”.
password input
main menu
STUP
A/M
DISP
SET/ENT
4.
Press the
SET/ENT
key once to display the main
menu “LOOP1”.
loop 1 setup para
SETUP main menu
LOOP1
A/M
DISP
SET/ENT
5.
Press the key once to display the main
menu “UTMD”.
UT750 configuration
UTMD
A/M
DISP
SET/ENT
SETUP main menu
6.
Press the
SET/ENT
key once to display the
submenu “MD”.
UT mode set
SETUP sub menu
MD
A/M
DISP
SET/ENT
7.
Press the key twice to display the
submenu “INIT”.
parameter initialize
SETUP sub menu
INIT
A/M
DISP
SET/ENT
