<Toc> <3. Operations>
3-9
IM 05D01B02-41E

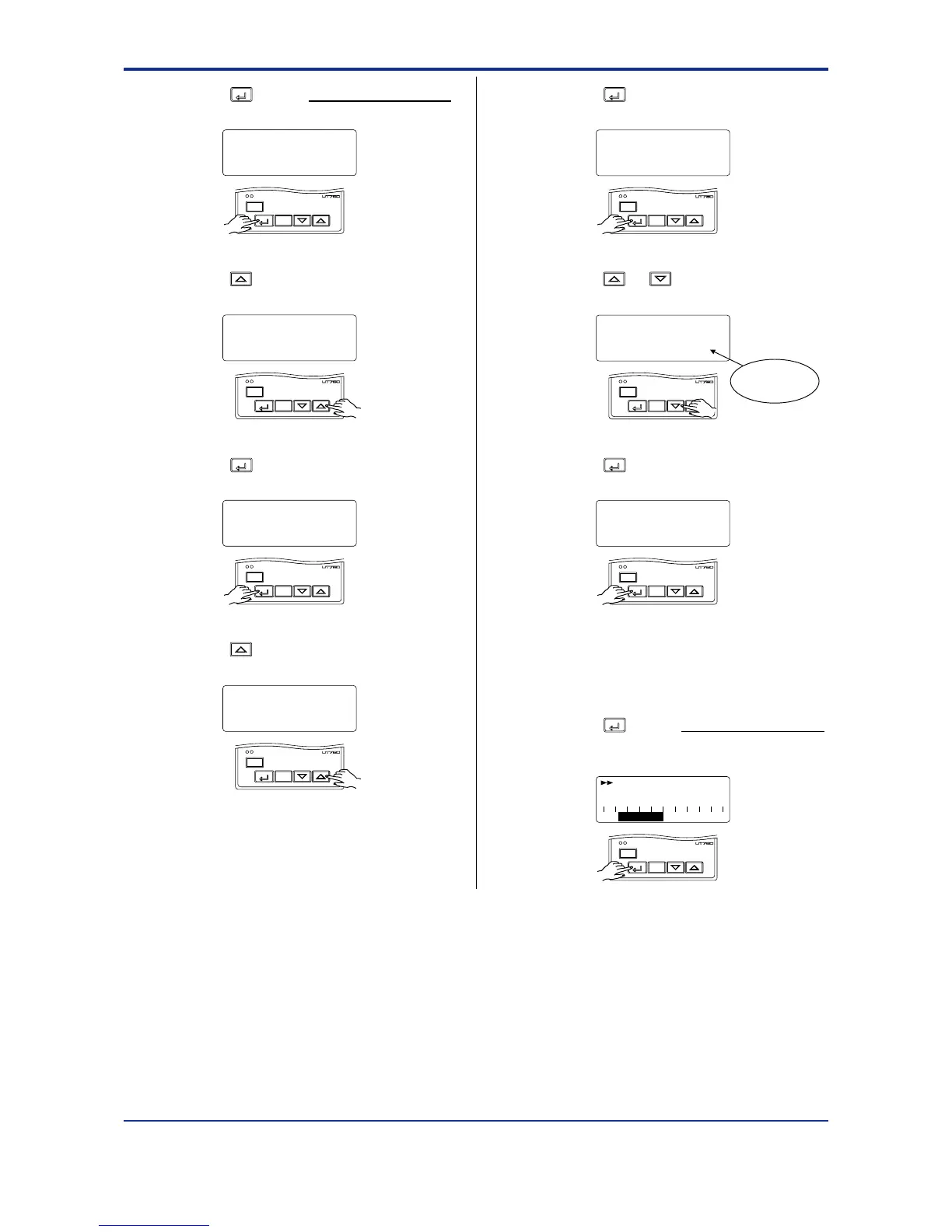

2.
Press the
SET/ENT
key for more than 3 seconds
to call up the main menu MODE.
mode parameter
main menu
MODE
A/M
DISP
SET/ENT
3.
Press the key once to display the main
menu LP1.
loop 1 parameter
main menu
LP1
A/M
DISP
SET/ENT
4.
Press the
SET/ENT
key once to display the
submenu PAR.
parameter
sub menu
PAR
A/M
DISP
SET/ENT
5.
Press the key once to display the
submenu 1.PID.
PID parameter SPno.1
sub menu
1.PID
A/M
DISP
SET/ENT
1st Edition : May 31,2000-00
6.
Press the
SET/ENT
key twice to display the
parameter 1.A1.
MENU:LP1/1.PID #2
alarm-1 set point
1.A1 = 200.0°C
A/M
DISP
SET/ENT
7.
Press the or key to display the
required setpoint.
°C
MENU:LP1/1.PID #2
changing
alarm-1 set point
1.A1 = 160.0
A/M
DISP
SET/ENT
Blinks during
change.
8.
Press the
SET/ENT
key once to register the
setpoint.
A/M
DISP
SET/ENT
MENU:LP1/1.PID #2
alarm-1 set point
1.A1 = 160.0
°C
You can take the same steps for alarm-2
setpoint (1.A2), alarm-3 setpoint (1.A3),
alarm-4 setpoint (1.A4) that are displayed
after this.
9.
Press the
SET/ENT
key for more than 3 seconds.
This returns you to the display shown at
power-on (figure below).
A/M
DISP
SET/ENT
SP :1.
-10 0 +10
100.0°C
DV
