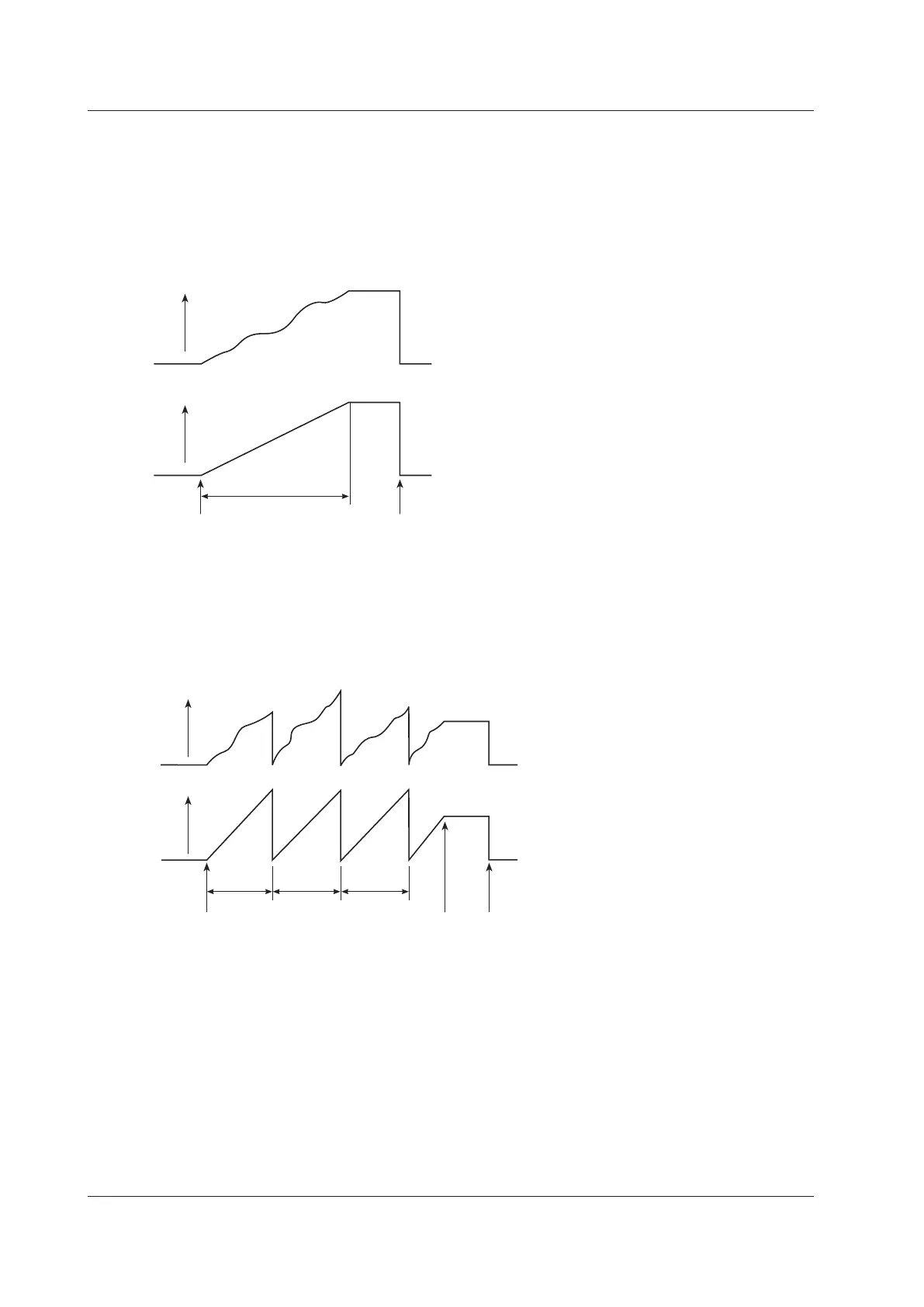

Normal Integration Mode (Normal)
You can set a relative integration time (set a timer). Integration starts when you tap Start or press START. When
one of the conditions below is met, integration is stopped, and the integration time and integrated value are held.
• The specified timer time elapses.
• The Stop button is tapped, or the STOP key is pressed.
• The integrated value reaches its maximum or minimum displayable value.
Integration time
Reset
Start
Integrated value
Hold
Hold
Timer value
Continuous Integration Mode (Continuous integration; Continuous)
You can set a relative integration time. Integration starts when you tap Start or press START. When the specified
timer time elapses, integration is automatically reset and restarted. Integration repeats until you tap Stop or press
STOP. However, if the integrated value reaches its maximum or minimum displayable value before the specified
amount of time has elapsed, integration is stopped, and the integration time and integrated value at that point
are held.
Start Reset
Integration
time
Integrated
value
Hold
Hold
Timer
value
Timer
value
Timer
value
Stop
14 Integrated Power (Watt Hours/Ampere Hours)

YOKOGAWA WT5000 Specifications

General

Frequency Range	DC, 0.1 Hz to 1 MHz
Number of Channels	Up to 7
Interfaces	USB, Ethernet, GP-IB, RS232
Sampling Rate	10 MS/s
Harmonic Analysis	Up to the 500th order
Weight	Approximately 15 kg
Display	10.1-inch WXGA (1280 x 800) TFT LCD
