Measurement Period (Sync Source)
When the Computing Method Is Sync Source Period Average
Measurement Period of Normal Measurement Functions

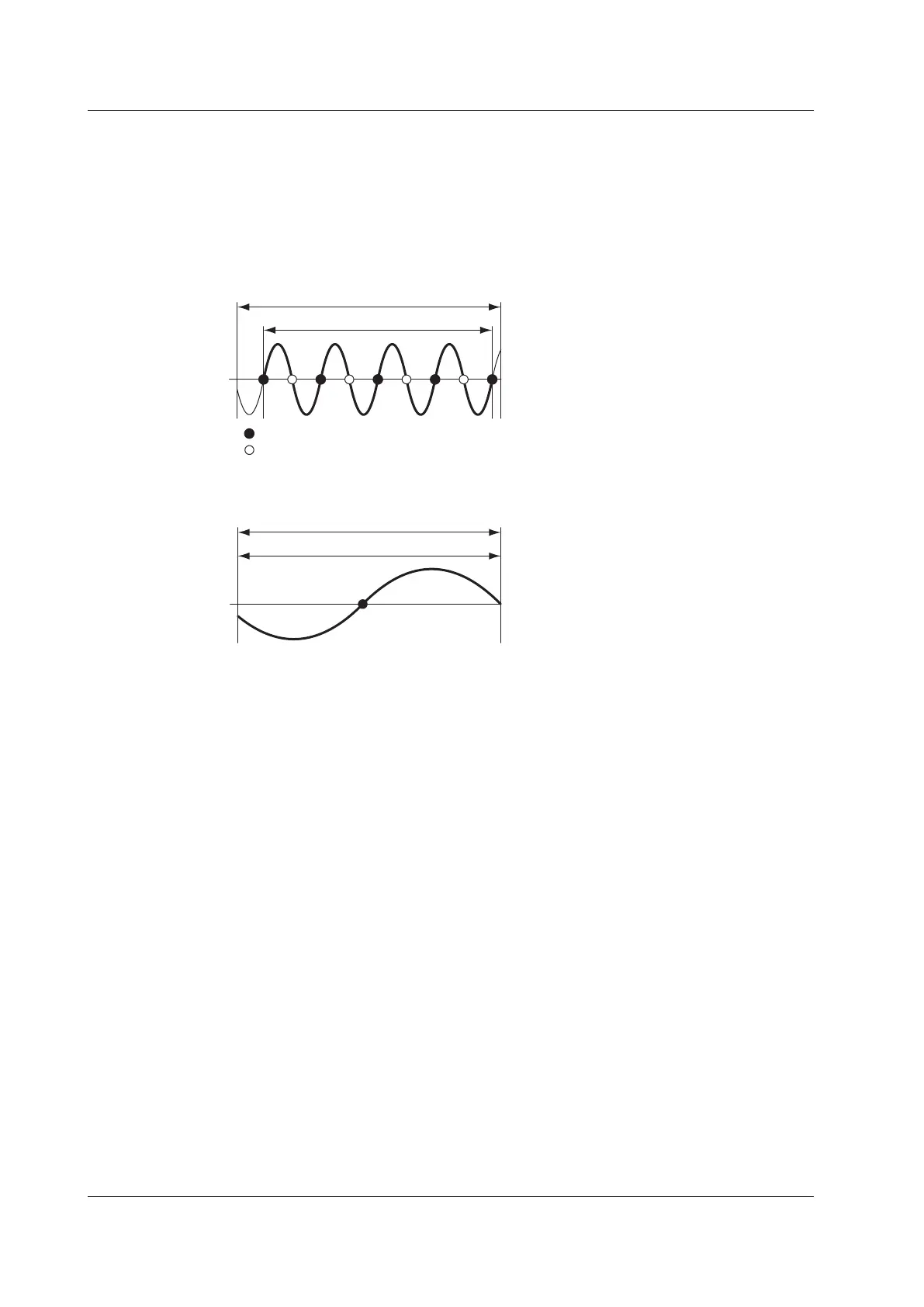

The measurement period is determined by the input signal that is used as the reference (sync source). The
measurement period is set within the data update interval between the first point where the sync source crosses
the specified level (center of the amplitude by default) on a rising slope (or falling slope) and the last point where
the sync source crosses the specified level on a rising slope (or falling slope).
Data update interval
Measurement period
Sync source
Rising
Falling
If there is no more than one cross point within the data update interval, the measurement period is the entire
data update interval.
Data update interval
Measurement period
Sync source
