14-14
IM WT5000-01EN
Resetting Integration (Reset, RESET)
The integration time and integrated value are reset. The STOP key turns off. The displays for integration-related
functions change to “-----------” (no data).
When an integration error occurs, the ERROR indicator blinks, and the integration status shows .
Holding Integration and Releasing the Hold
Holding Integration
When you tap Hold or press HOLD, it illuminates, and the display and communication output of the integration
result are held. Integration continues regardless of whether the display is held.
Releasing the Hold on Integration
If you tap Hold or press HOLD when integration is held, the HOLD key light turns off, and the numeric data
display is updated. While the display is held, you can update the display by tapping Single or pressing SINGLE
to execute a single measurement.

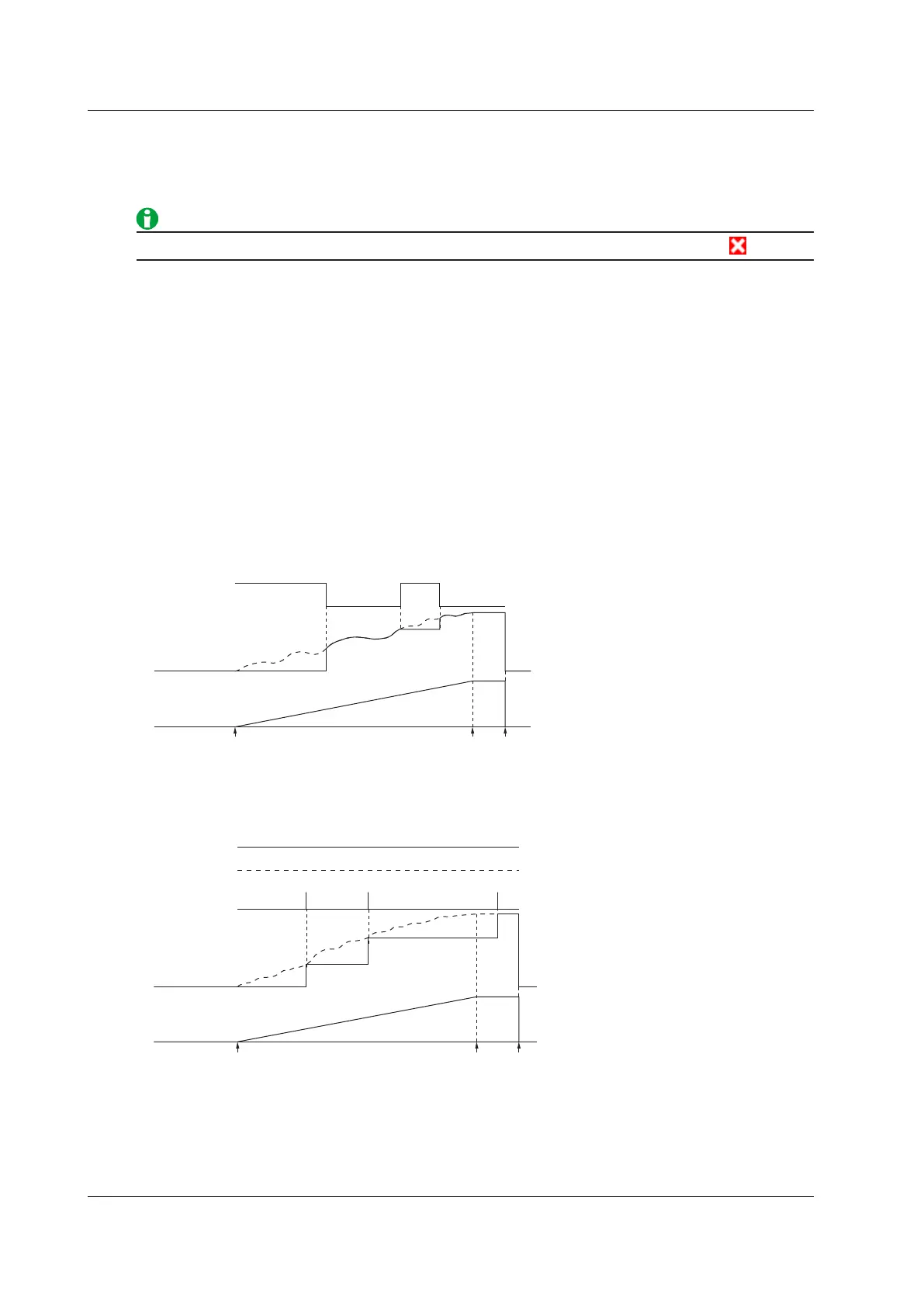

The relationship between the hold function and the start and stop operations is as follows:
• If you start integration while the display is held, the display and communication output do not change. When
you release the hold function (turn it off) or make a single measurement, the integration result at that point is
displayed and transmitted.
HOLD
OFF
Displayed value
Integration time
(The dotted line is the integrated value.)
Start
Stop
Reset
• If you stop integration while the display is held, the displayed and transmitted values do not change. When
you release the hold function (turn it off) or make a single measurement, the integration result at the point
when integration was stopped is displayed and transmitted.
Integration time
(The dotted line is the integrated value.)
SINGLE
(Single measurement)
OFF
HOLD
Execution Execution
Execution
Displayed value
Start
Stop
Reset
14 Integrated Power (Watt Hours/Ampere Hours)
