• Double Motor (Double Motor)
You can apply the torque and speed (pulse) signals from two circuits.
/MTR1 /MTR2 Function Signal
Ch A Ch E Torque Analog/pulse
Ch B Ch F Speed Pulse
Ch C Ch G Torque Analog/pulse
Ch D Ch H Speed Pulse

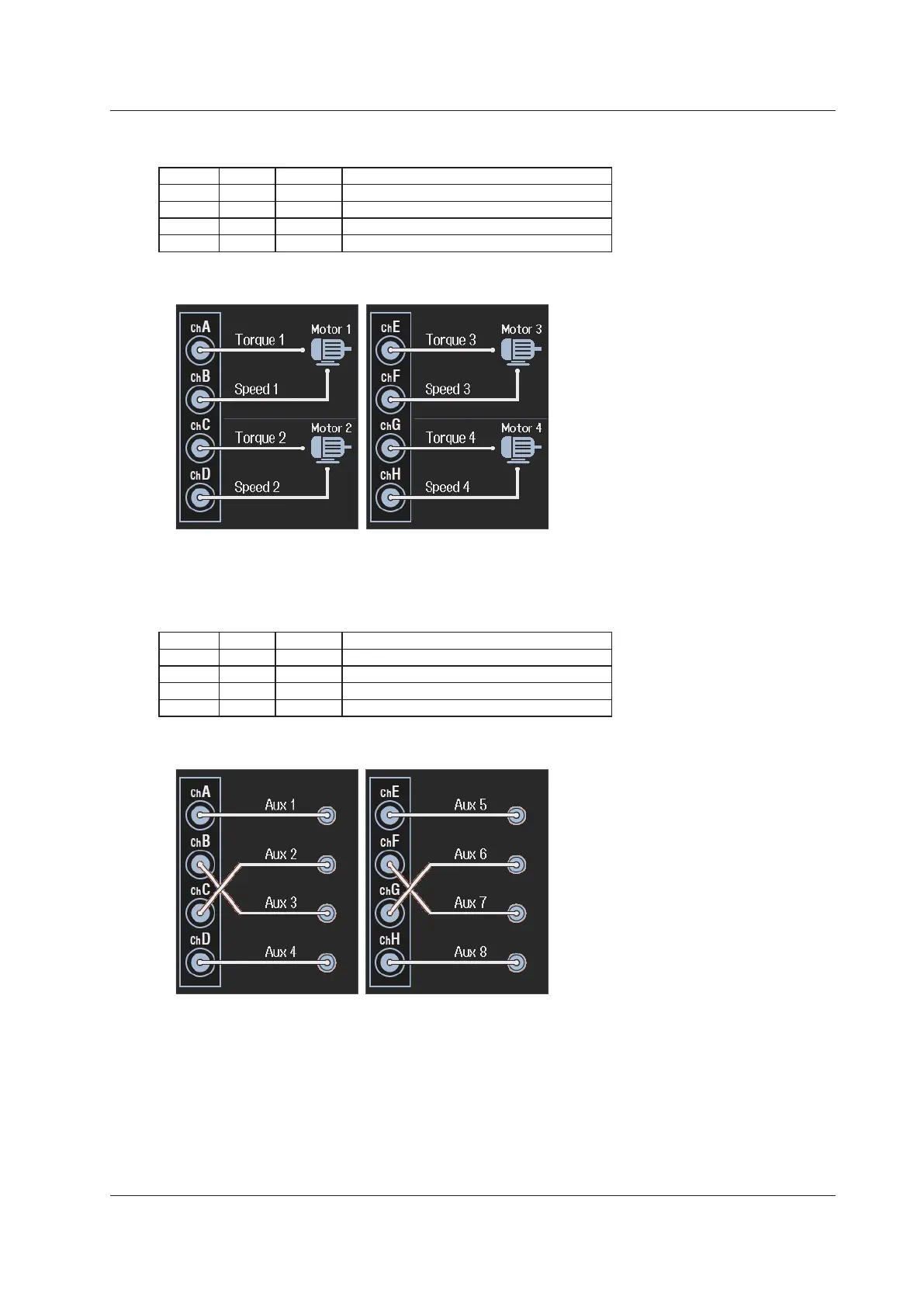

Motor number assignments (Motor 1 to 4)
Motor 3Motor 1
Motor 4Motor 2
• Auxiliary Input (Aux) (Auxiliary)
You can apply analog voltage signals or pulse signals (e.g., frequency) from illuminance sensors, wind
sensors, temperature sensors, and the like and display these physical quantities.
/MTR1 /MTR2 Function Signal
Ch A Ch E Aux Analog/pulse
Ch B Ch F Aux Pulse
Ch C Ch G Aux Analog/pulse
Ch D Ch H Aux Pulse
Aux number assignments (Aux 1 to 8)
Aux 5 to 8Aux 1 to 4
5 Motor Evaluation and Auxiliary Input (Option)
