YOKOGAWA WT5000 Features Guide

10-2
IM WT5000-01EN

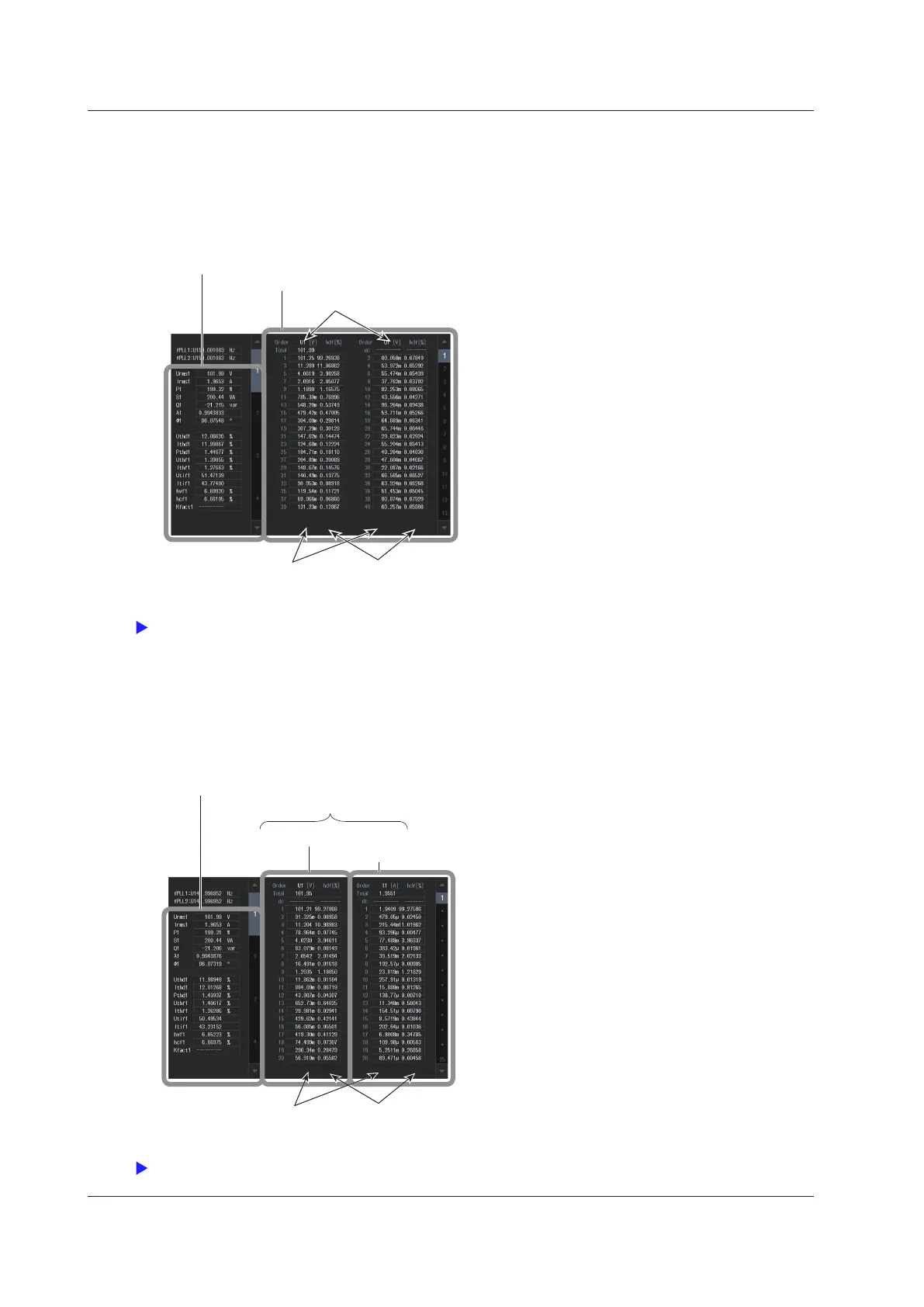

Harmonics List Single Screen (Hrm List Single)
• When the display format is single screen display, 42 harmonic order data items of a single measurement
function are displayed in two columns.
• When the display mode is split display, 22 harmonic order data items of a single measurement function are
displayed in two columns.
Measurement function
Numeric data for each
harmonic
Measurement function display area
(Data concerning all harmonics)
Distortion factors of each harmonic
(When the selected measurement function
is U, I, or P, Uhdf, Ihdf, or Phdf is displayed.)
Harmonic order data display area
Click here.
Harmonics List Dual Screen (Hrm List Dual)
• When the display format is single screen display, the harmonic order data items of two measurement
functions are displayed in two separate columns, each containing up to 22 values.
• When the display format is split display, the harmonic order data items of two measurement functions are
displayed in two separate columns, each containing up to 12 values.
Measurement function 1
Measurement function 2
Numeric data for each
harmonic
Distortion factors of each harmonic
(When the selected measurement function is
U, I, or P, Uhdf, Ihdf, or Phdf is displayed.)
Measurement function display area
(Data concerning all harmonics)
Harmonic order data display area
Click here.
10 Numeric Data Display
