Product name and model

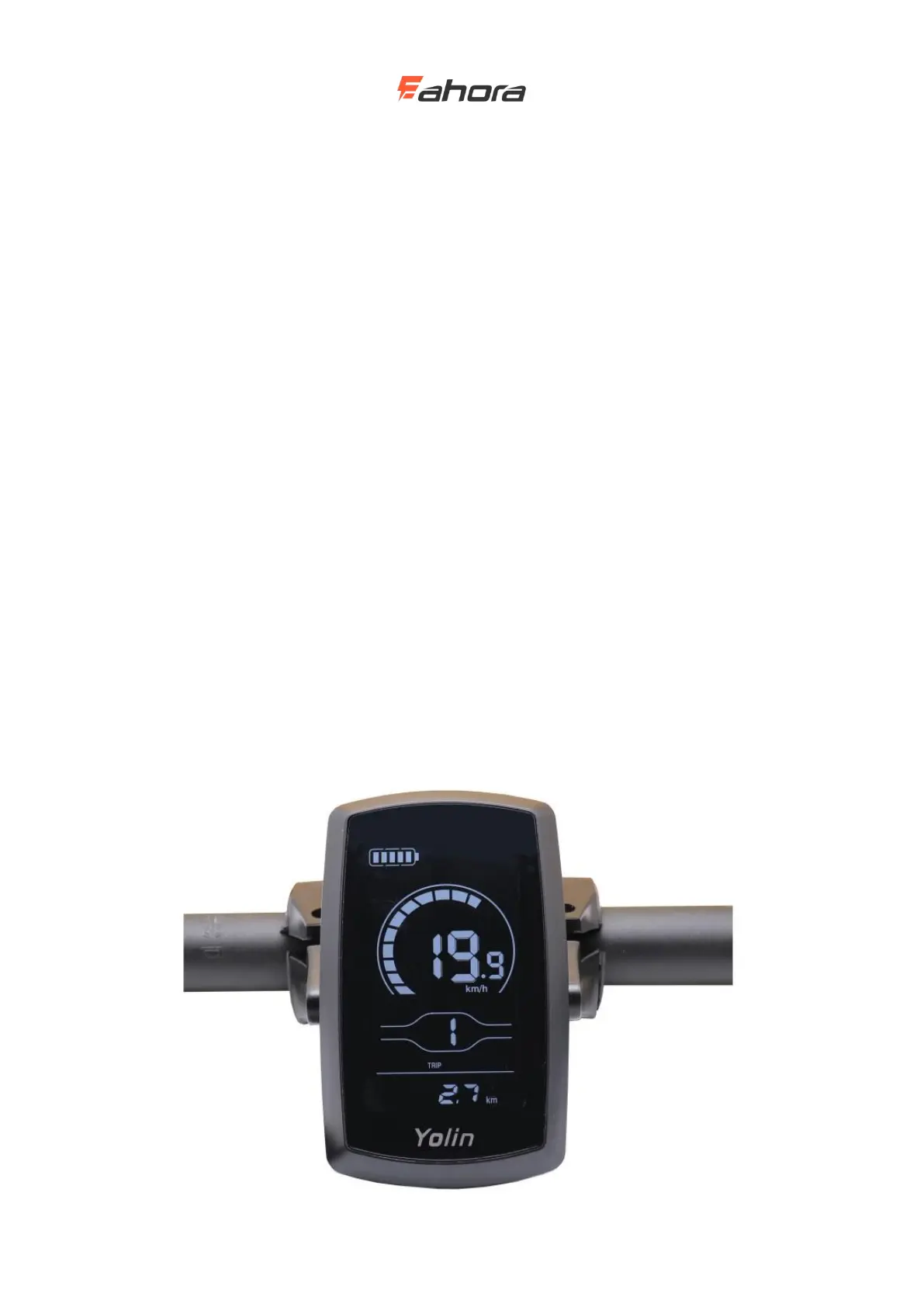

Intelligent LCD meter for electric bicycle; Model: YL80C.
Specifications
 24V / 36V / 48V power supply
 Instrument rated working current 10mA
 Maximum working current of the instrument: 30mA
 Shutdown leakage current <1uA
 Supply controller current 50mA
 Working temperature -20 ～ 60 ℃
 Storage temperature -30 ～ 70 ℃
Appearance and dimension

Physical and dimensional drawings (unit: mm)
