1. Product Name and Model Number
Smart LCD display for electric bicycle; Model: YL81F.
2. Specification
● 24V/36V/48V power supply
● Display rated current 15mA
● Display maximum current 30mA
● Shutdown leakage current <1uA
● Supplied current to the controller 50mA
● Operating temperature -20～60℃
● Storage temperature -30 to 70°C
3. Appearance and Size

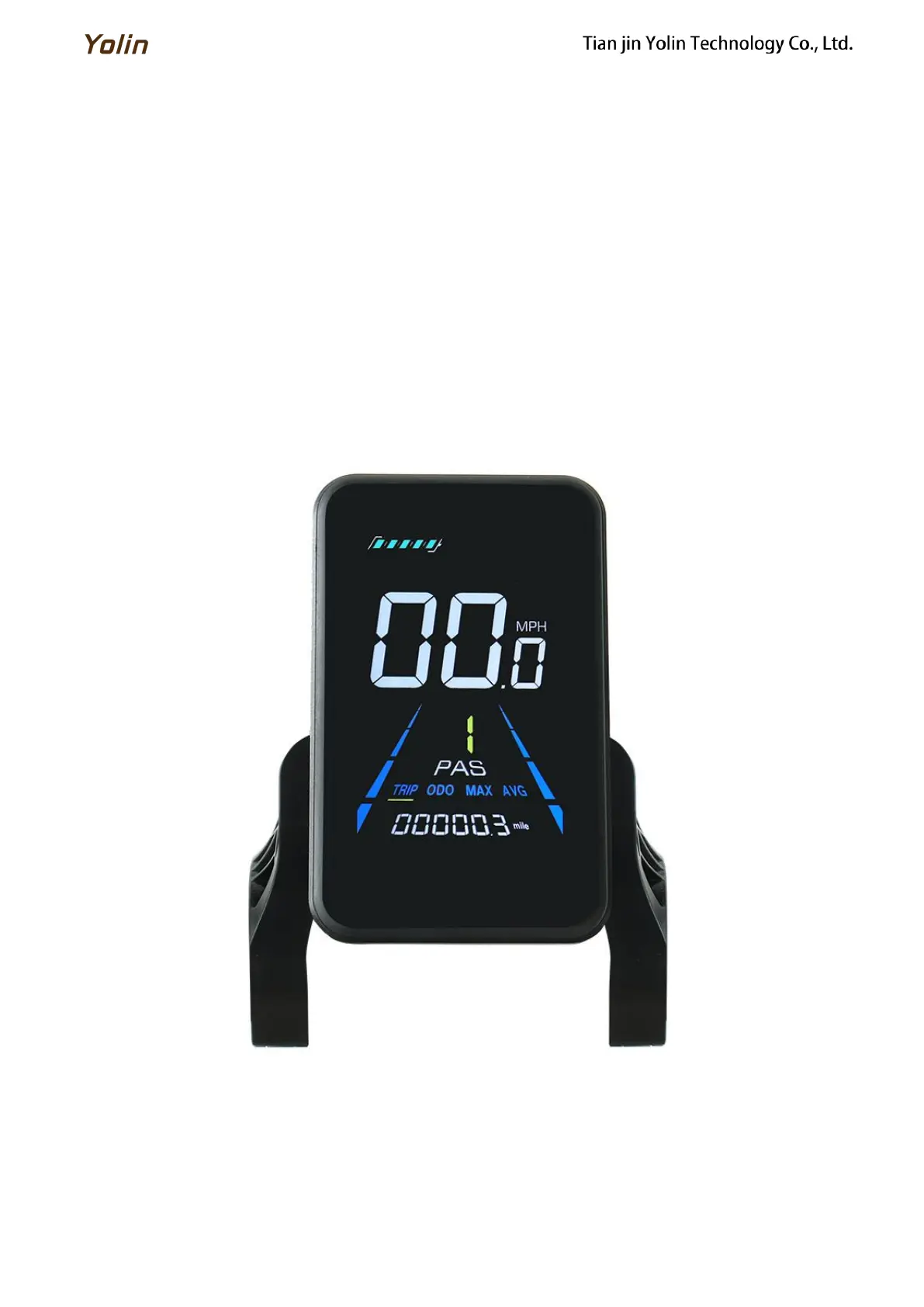

Figure 3-1 Physical picture of the YL81F display
