York MaxE YK Installation Instructions

FORM 160.73-N1 (904)
11
YORK INTERNATIONAL
F
K
J
H
G
F
F
2 PASS CONDENSERS
DIM. G H J T V X
H 6" 11-1/2" 1'–0-1/4" 1'–0-1/4" 1'–1-7/8" 0'–11-3/4"
J 1'–2" 1'–6-1/4" 1'–7-5/8" 1'–7-5/8" 1'–10-1/8" 1'–7-5/8"
K 1'–2" 2'–0-1/4" 1'–7-5/8" 1'–7-5/8" 1'–10-1/8" 1'–7-5/8"
1 PASS CONDENSERS
DIM. G H J T V X
F 1'–2" 1'–9" 1'–9-3/4" 1'–9-3/4" 1'–11-1/8" 1'–7-5/8"
Dimensions (Ft. - In.)
3 PASS CONDENSERS
DIM. G H J T V X
G 1'–2" 1'–4-7/8" 1'–7" 1'–7" 1'–7-3/4" 1'–7-5/8"
F 1'–2" 1'–8-1/8" 1'–10-1/8" 1'–10-1/8" 1'–11-3/8" 1'–7-5/8"
LD10115

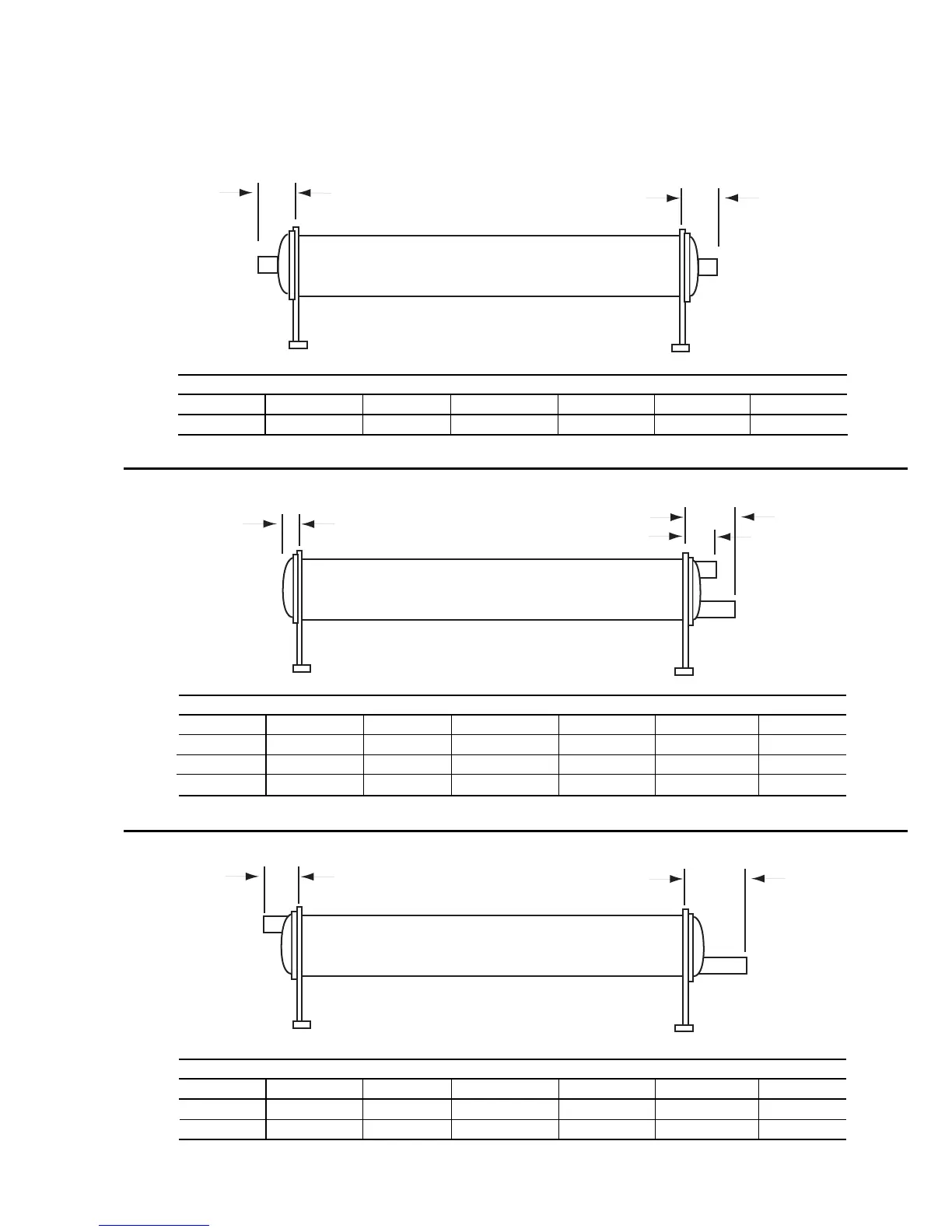

FIG. 6 (CON'T) – DIMENSIONS – J COMPRESSOR UNITS
