York MaxE YK Installation Instructions

FORM 160.73-N1 (904)
9
YORK INTERNATIONAL
NOTES:
1. All dimensions are approximate. Certifi ed dimensions are avail able on request.
2. For compact water boxes (shown above), determine overall unit length by adding water box depth to tube sheet length.
3. Water nozzles can be located on either end of unit. Add 13 mm (1/2 inch) to nozzle length for fl anges connections.
4. To determine overall height, add 22 mm (7/8 inch) for isolators.
5. Use of motors with motor hoods may increase overall unit di men sions.

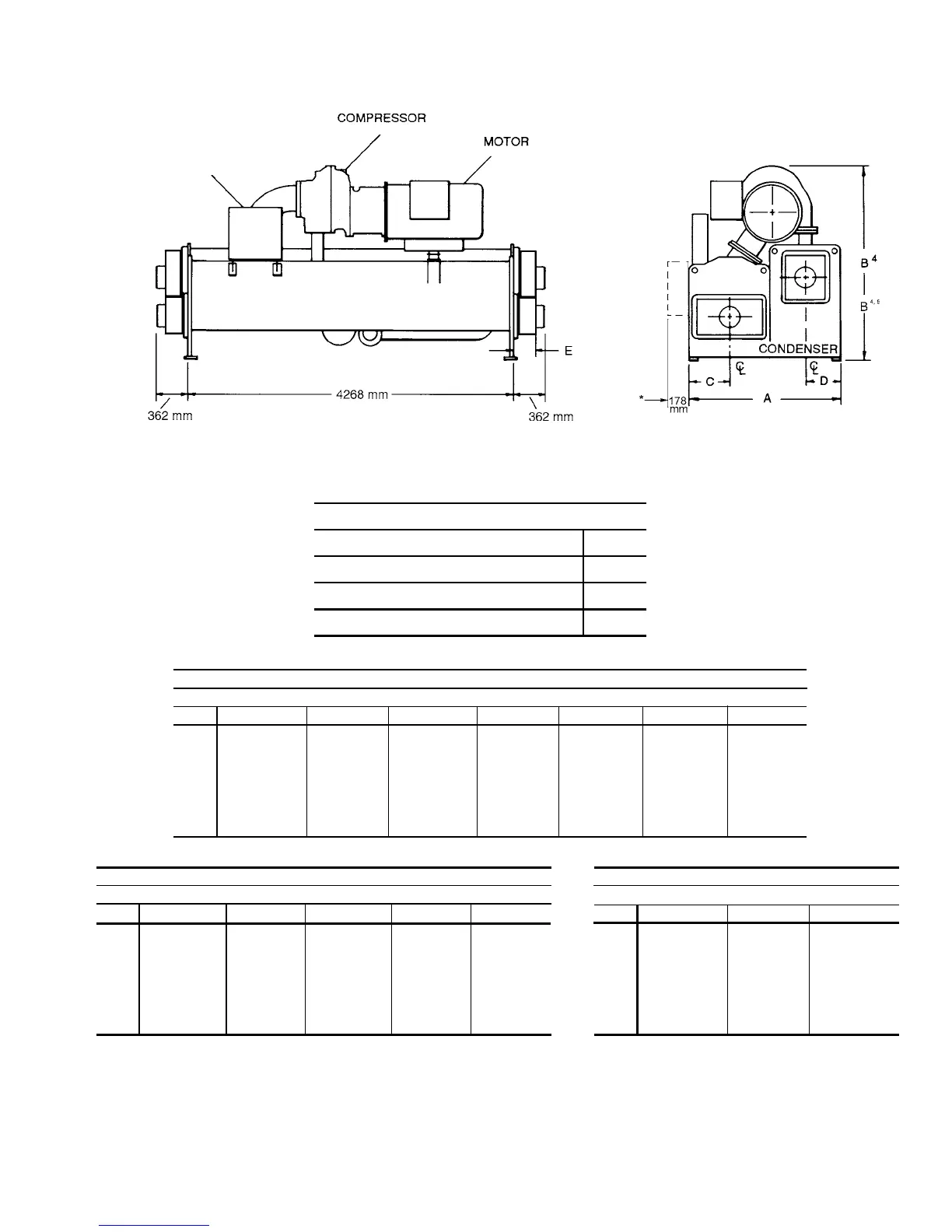

FIG. 5 – DIMENSIONS – H COMPRESSOR UNITS (mm)
LD03886
* Operating Location
of Control Center on
Evap o ra tor Codes G
thru W.
H COMPRESSOR UNITS
OPTIVIEW™
CONTROL
CENTER
EVAPORATOR
H5 COMPRESSORS
EVAPORATOR – CONDENSER SHELL CODES
E–E E–F F–E F–F F –G G–F G–G
A 1,981 2,057 2,108 2,184 2,286 2,248 2,350
B 2,445 2,508 2,443 2,508 2,305 2,508 2,305
C 546 546 610 610 610 641 641
D 445 483 445 483 533 483 533
E 149 149 149 149 149 159 159
F 4,268 4,268 4,268 4,268 4,268 4,268 4,268
H6 COMPRESSORS
EVAPORATOR – CONDENSER SHELL CODES
F–F F–G G–F G–G H–G
A 2,184 2,286 2,248 2,350 2,438
B 2,508 2,305 2,508 2,305 2,672
C 610 610 641 641 686
D 483 533 483 533 533
E 149 149 159 159 159
F 4,268 4,268 4,268 4,268 4,268
H7/H3/H8 COMPRESSORS
EVAPORATOR–CONDENSER SHELL CODES
G–F G –G H–G
A 2,248 2,350 2,438
B 2,508 2,305 2,672
C 641 641 686
D 483 533 533
E 159 159 159
F 4,268 4,268 4,268
ADDITIONAL OPERATNG HEIGHT CLEARANCE
TYPE OF CHILLER MOUNTING M
NEOPRENE PAD ISOLATORS 44
SPRING ISOLATORS 25mm DEFLECTION 25
DIRECT MOUNT 19
