The rigging and operating weights and overall
di men sions are given on pages 6 thru 13 as a guide in
de ter min ing the clear anc es required for rig ging. Add 6"
(15 cm) to over all height for optional skidded unit.
LOCATION
YORK MaxE™ Chillers are furnished with vi bra tion
iso la tor mounts for basement or ground lev el in stal la tions.
Units may be located on upper fl oor levels pro vid ing the
fl oor is ca pa ble of supporting the total unit op er at ing
weight and optional spring isolators are used.
Suffi cient clearance to facilitate
nor mal ser vice and maintenance
work must be pro vid ed all around
and above the unit and par tic u lar ly
space pro vid ed at ei ther end to
permit clean ing or re place ment of
evaporator and con dens er tubes
– see CLEARANCE. A doorway
LD00700(R)

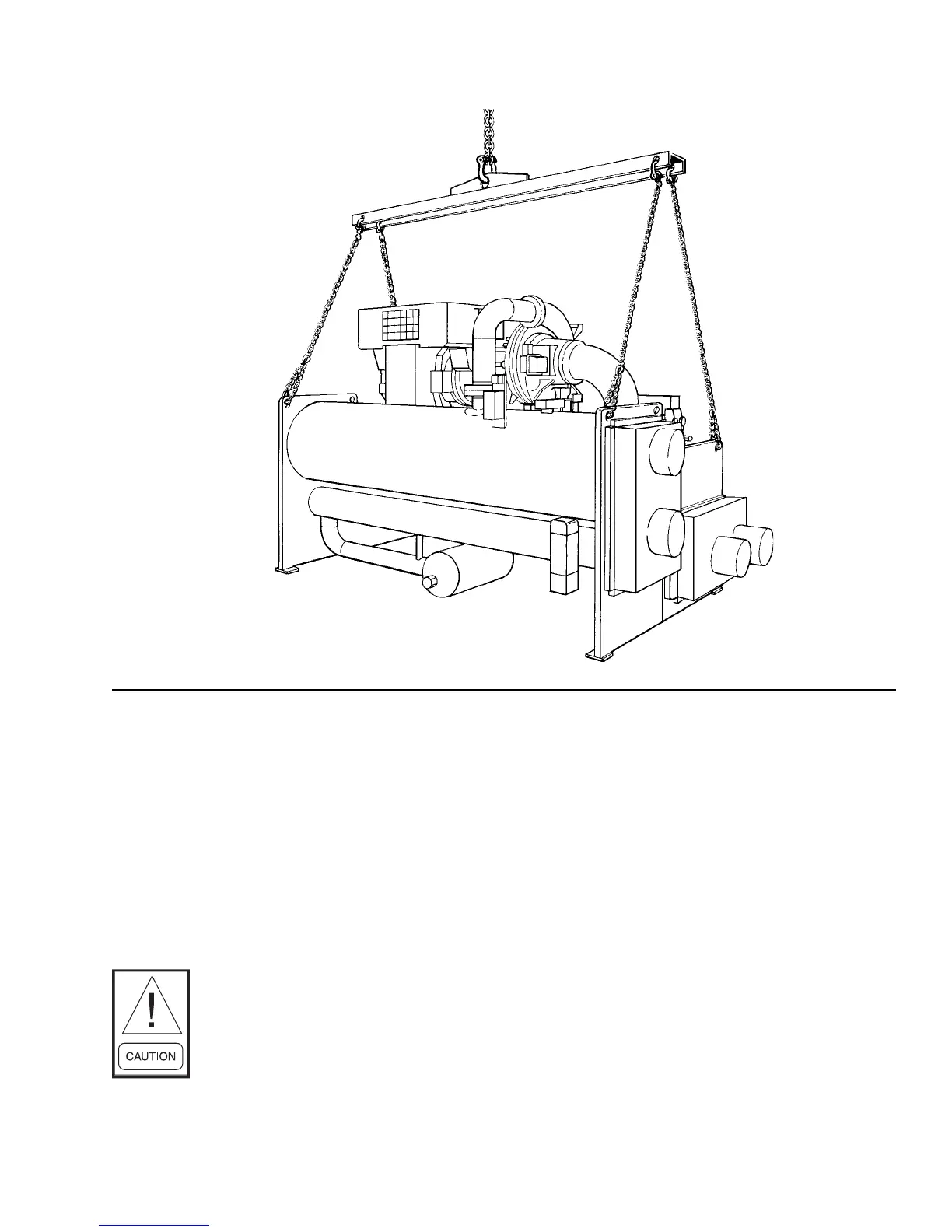

FIG. 8 – RIGGING
or other suffi ciently large opening
prop er ly located may be used. The
chill er should be lo cat ed in an in door
location where tem per a tures range
from 40°F to 110°F (4.4°C to 43.3°C).
MOTORS
The YK open motor is air cooled. Check state, local and
other codes for ventilation requirements.
FOUNDATION
A level fl oor, mounting pad or foundation must be
pro vid ed by others, capable of supporting the operating
weight of the unit.
CLEARANCE
Clearances should be adhered to as follows:
Rear and above unit – 2 ft (61 cm).
Front of unit – 3 ft (91 cm).
Tube Removal – 14 ft.* (4.3 m) (either end)
* 16 ft. (4.9 meters) on shell codes T-T, T-V, V-T, V-V & W-V.
** 18 ft. (5.5 meters) on shell code X-X.
