YORK INTERNATIONAL
12
FORM 160.73-N1 (904)

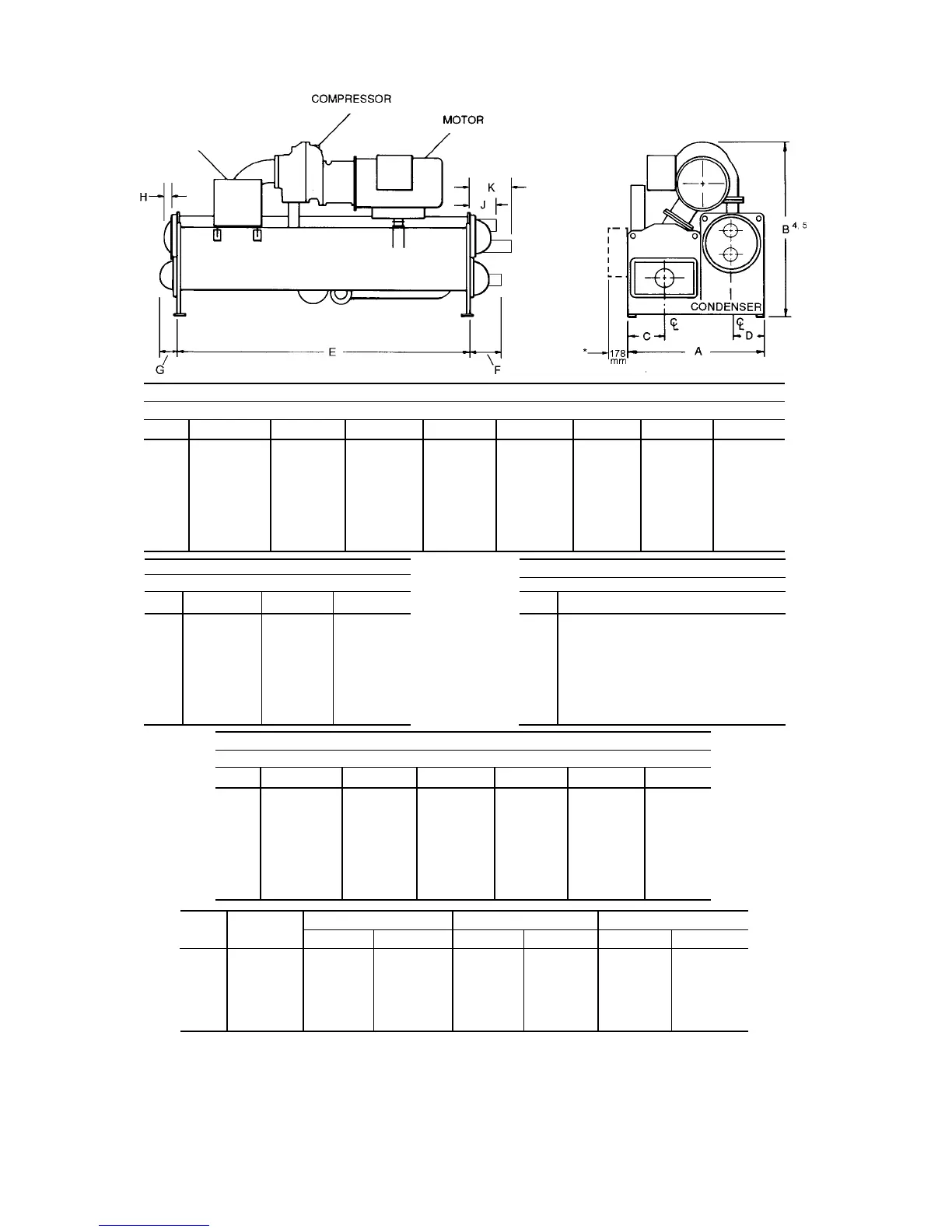

FIG. 7 – DIMENSIONS – J COMPRESSOR UNITS (mm)
NOTES:
1. All dimensions are approximate. Certifi ed dimensions are avail able on request.
2. For compact water boxes (shown above), determine overall unit length by adding water box depth to tube sheet length.
3. Water nozzles can be located on either end of unit. Add 13 mm (1/2 inch) to nozzle length for fl anges connections.
4. To determine overall height, add 22 mm ( 7/8 inch) for isolators.
5. Use of motors with motor hoods may increase overall unit di men sions.
J1/J2 COMPRESSORS
EVAPORATOR – CONDENSER SHELL CODES
G-G G-H H-G H-H H-J J-H J-J T-T
A 2286 2388 2400 2502 2604 2718 2769 2769
B 2838 2991 2838 2991 2991 2991 2991 2985
C 610 610 667 667 667 749 749 749
D 533 584 533 584 635 584 635 635
E 4267 4267 4267 4267 4267 4267 4267 4877
F 603 603 603 603 603 603 603 603
G 375 375 375 375 375 375 375 375
J3 COMPRESSORS
EVAPORATOR – CONDENSER SHELL CODES
H-H H-J J-H
A 2502 2604 2667
B 2965 3067 2965
C 667 667 749
D 584 635 584
E 4267 4267 4267
F 603 603 603
G 375 375 375
J3/J4 COMPRESSORS
EVAPORATOR – CONDENSER SHELL CODES
J-J T-T T-V V-T V-V W-V
A 2769 2769 2896 2769 2896 3023
B 3067 3067 3194 3067 3194 3194
C 749 749 749 749 749 813
D 635 635 699 635 699 699
E 4267 4877 4877 4877 4877 4877
F 603 603 603 603 603 629
G 375 375 375 375 375 419
COND. 1 PASS 2 PASS 3 PASS
CODE
H
J K J K J K
G 149 349 349 349 349 349 349
H 295 530 530 460 460 422 508
J 318 549 549 495 495 476 559
T 318 549 549 495 495 476 559
V 346 584 584 559 559 495 591
J COMPRESSOR UNITS
LD03888
* Operating
Location
of Control
Cen ter on
Evap o ra tor
Codes G
thru W.
OPTIVIEW™
CONTROL
CENTER
EVAPORATOR
J5 COMPRESSORS
EVAPORATOR – CONDENSER SHELL CODES
X-X
A 10'–3"
B 11'–5"
C 2'–8"
D 2'–5-1/2"
E 18'-0"
F 2'–0-3/4"
G 1'–4-3/4"
