York YVWA - FIGURE 14 - Heat Exchanger Shipping Brackets; FIGURE 15 - Heat Exchanger Pipes

JOHNSON CONTROLS
37
SECTION 3 - HANDLING, STORAGE, INSTALLATION AND REASSEMBLY
FORM 201.30-ICOM1 (519)
ISSUE DATE: 05/22/2019
3
LD17754
Shipping
Brackets

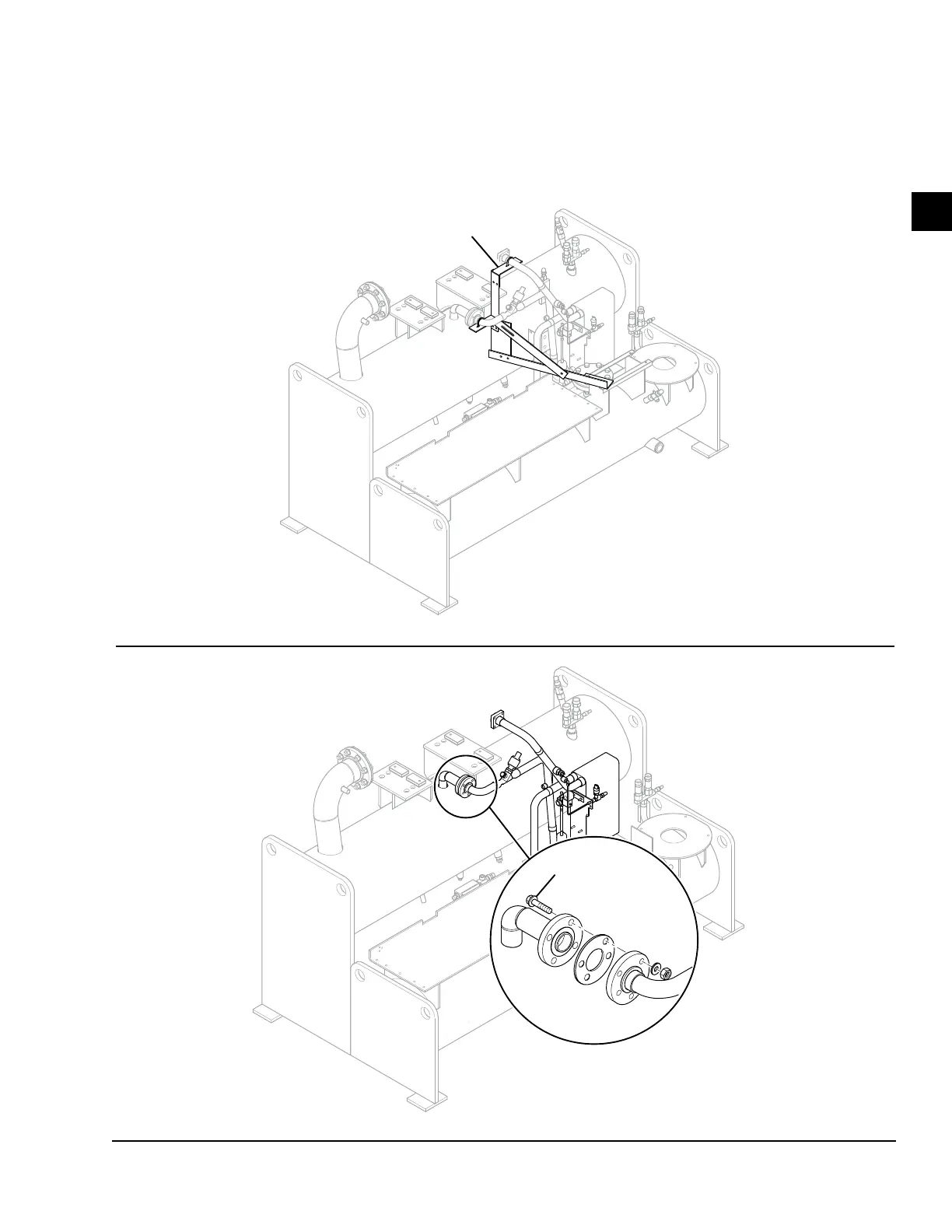

FIGURE 14 - HEAT EXCHANGER SHIPPING BRACKETS
Refer to Table 4 on page 32
for Torque Specications.
LD17755
B
FIGURE 15 - HEAT EXCHANGER PIPES
Installing the Heat Exchanger Piping
Use the following instructions after the temporary ship-
ping brackets supporting the heat exchanger piping has
been removed as shown in Figure 14 on page 37.
Connect the economizer heat exchanger liquid outlet
pipes to the economizer on the evaporator, using the
proper gaskets and hardware as shown in Figure 15 on
page 37.
