JOHNSON CONTROLS
38
FORM 201.30-ICOM1 (519)
ISSUE DATE: 05/22/2019
SECTION 3 - HANDLING, STORAGE, INSTALLATION AND REASSEMBLY
Installing the Liquid Injection Piping
If equipped, install the optional liquid injection piping
to the suction line on the evaporator and to the heat
exchanger piping on each side of the chiller, using the
proper o-rings and hardware as shown in Figure 16 on
page 38.
Refer to Table 4 on page 32
for Torque Specications.

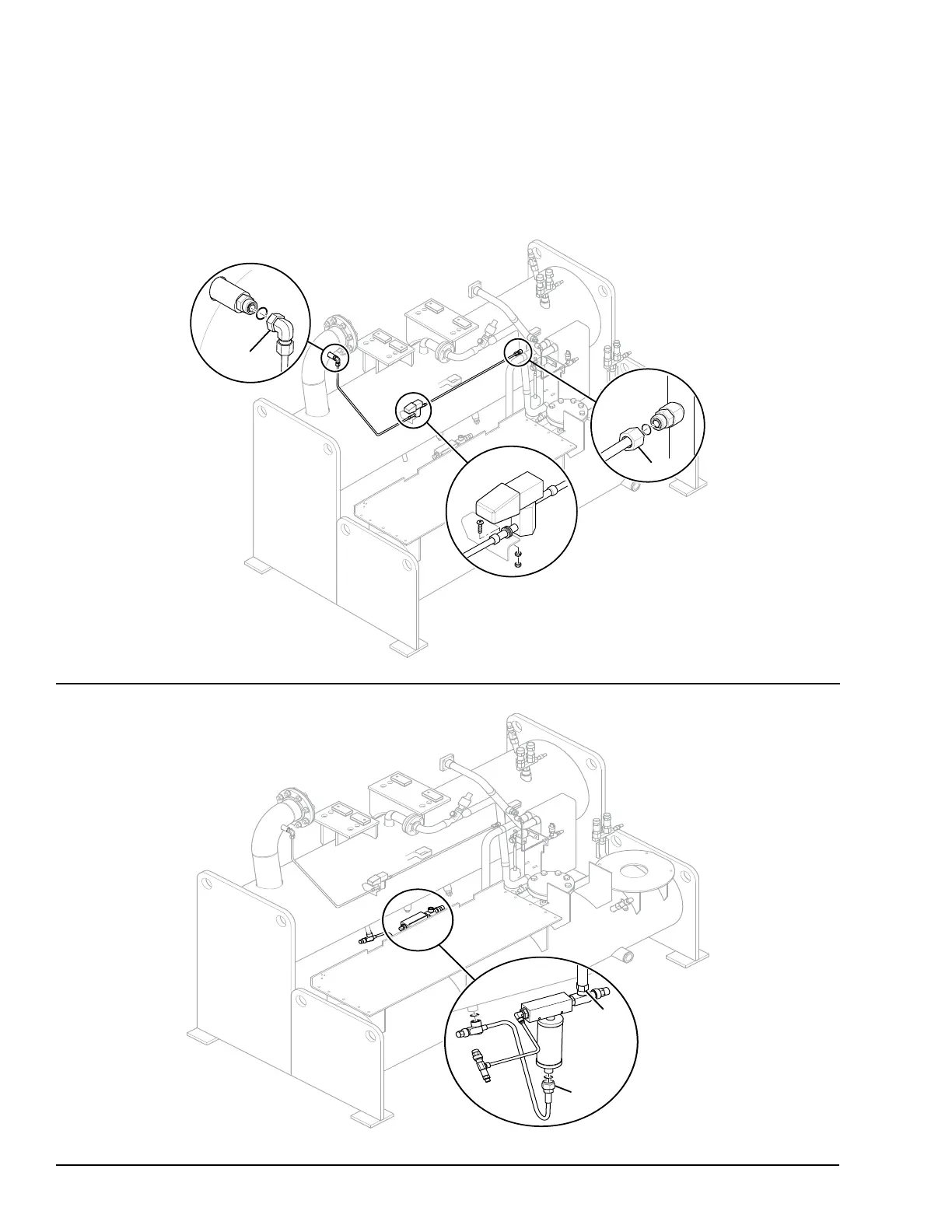

FIGURE 16 - LIQUID INJECTION PIPING
FIGURE 17 - FILTER DRIER AND PIPING
Installing Oil Return Piping
Install the oil return and piping between the filter drier
at the oil eductor and to port in the bottom of the evap-
orator, using the proper o-rings and hardware as shown
in Figure 17 on page 38.
