Then, place the level meter on the rails of the machine, observe the offset direction of bubble in the
level meter; first place the level meter on the rails of the beam; if bubble shifts left, the left side of the
machine is higher than the right side; adjust the machine level by reducing the height of left foot cup of
the machine or increasing the height of the right foot cup; when the bubble is centered in the level
meter, the level of the machine front has been adjusted properly;
Then, adjust the level of the rear, left and right side successively in the same way. After adjusting the
level of the four positions, the machine level has been adjusted properly, and next installation can
proceed.
Attention
The machine level adjustment is required. If the machine level is quite different, it will affect the subsequent use of
the machine.
3.1.5 Installing ventilation tube
Take out theΦ6″exhaust pipe, Φ6″hose clamp from the crate; as shown below, connect the exhaust
pipe and fan securely with Φ6" hose clamp;
Use a cross screwdriver to connect the exhaust pipe to the receiver through φ6 hose clamp as shown
below.

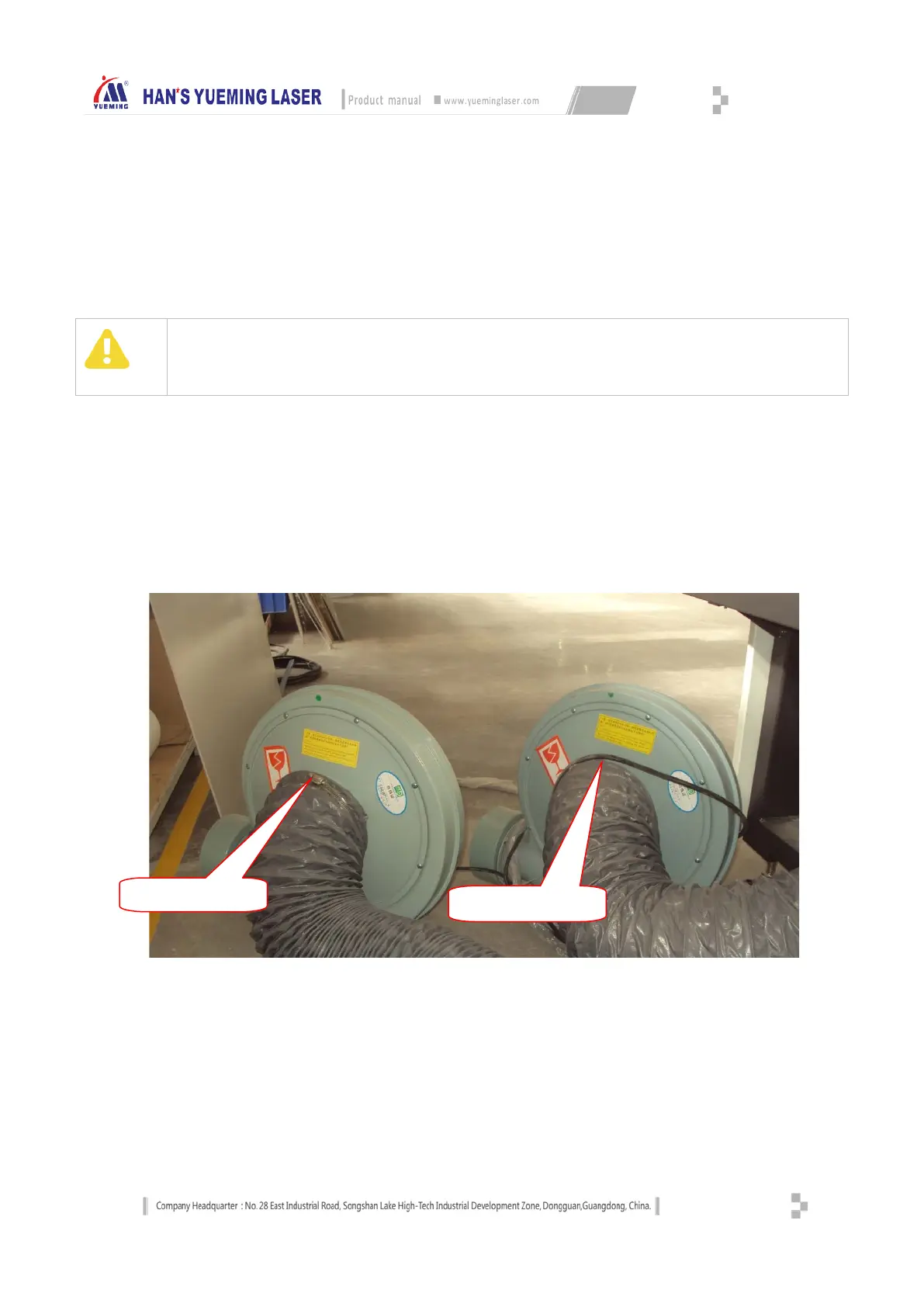

Installation Diagram of Exhaust Pipe and Fan
