12

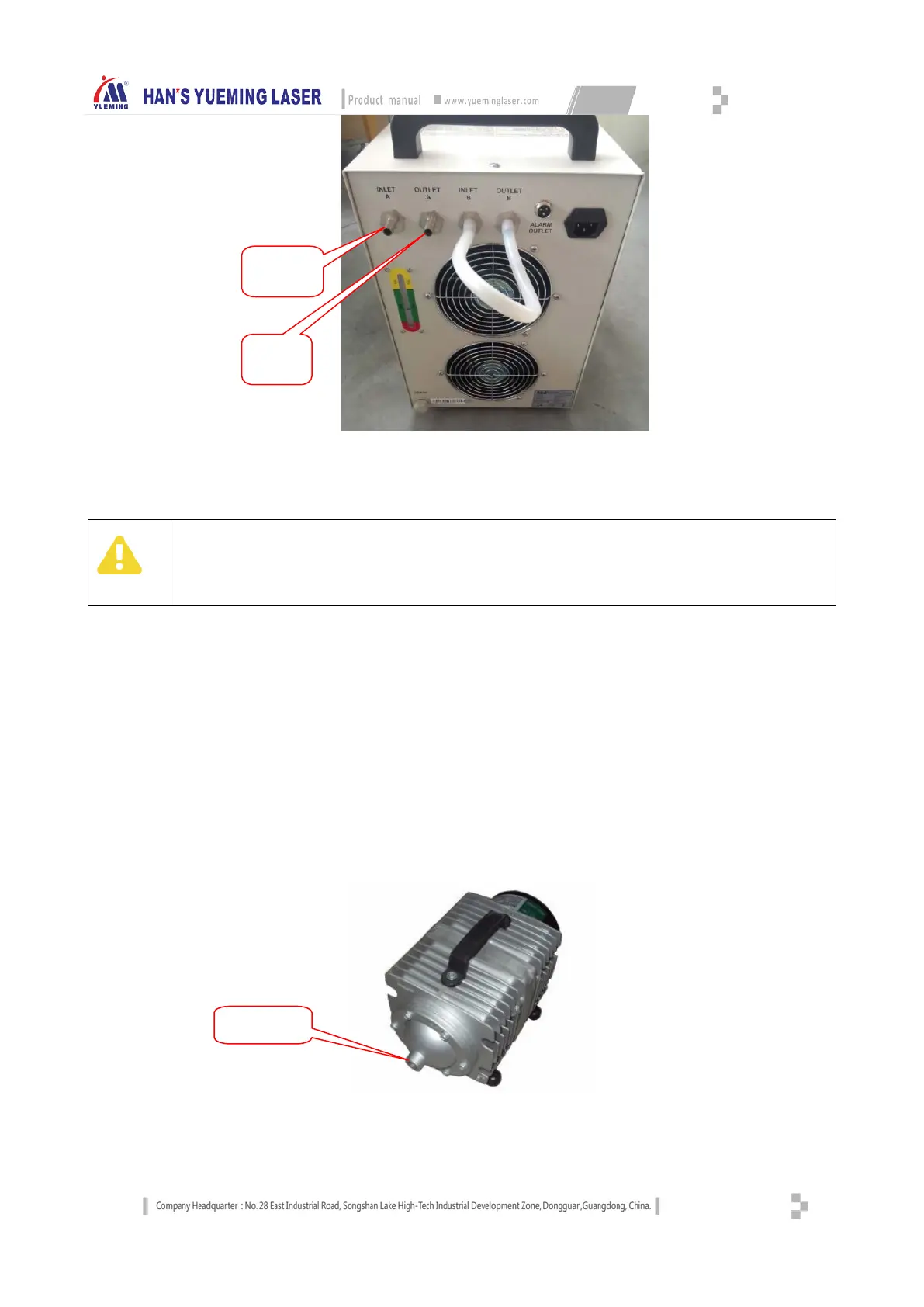

Chiller Fittings Installation Diagram
3.1.8 Installing air pump
The air pipe of the machine is in hard PU structure. For installation, insert the hard PU pipe directly into the
air pump and fast plug of the machine, as shown below:
The high pressure gas is very important in the system. The high pressure gas discharges from the light outlet
of the cutting head through the pipe. On the one hand, it ensures the cleanliness of the focusing lens, and
prevents materials being ignited by laser. Therefore, do not break or damage the air pipe during routine
maintenance, or else abnormal blowing may cause material burning.
Air Pump Interface Installation Diagram
Attention
Ensure that the height of the cooling water inside the tank is in predetermined range.
To ensure normal circulation of laser cooling water, the water outlet pipe is installed with flow switch. For
water-cooled laser tube, the water circulation must be normal, or else it may cause damage to the laser tube.
Therefore, pay attention to purified water and clean water pipes in routine maintenance process to prevent filter
screen clogging, resulting in poor water circulation and causing damage to the laser tube.
inlet
outlet
