Yueming CMA1325C-B-A - Installing Laser

10

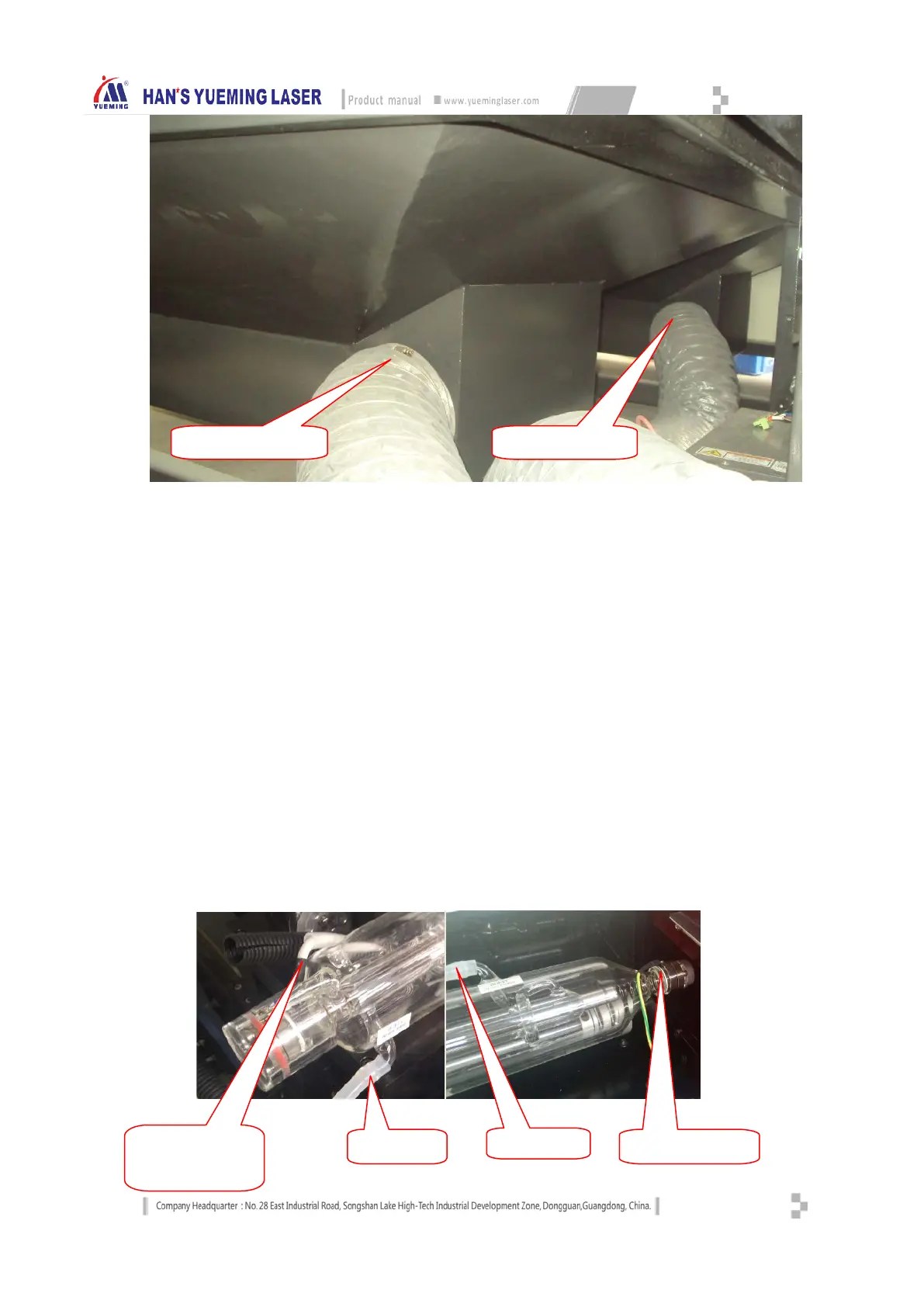

Installation Diagram of Exhaust Pipe and Receiver
3.1.6 Installing laser
 First, move the beam to the rearmost of the machine, and remove the rear shield of the beam;
 Then, unscrew the screws from the top cover of the support base with a hex wrench;
 Take out the laser tube from the box and place the laser in the support base of the laser tube;
 Use a hex wrench to tighten the screws to the top cover of the support base, and fix the laser tube to
the support base;
 Adjust the position of the laser tube support base, and target the laser tube outlet at the first reflector;
 Install earth wire, HV lines, inlet pipe and outlet pipe of the laser tube in sequence, and fix the lines with
adhesive tape;
 Adjust the optical path concentricity of the laser tube and the reflector by adjusting the support base of
the laser tube and the nuts of the support base;
 After adjusting the concentricity, fix the screws of the support base, and install the rear shield of the
beam.
Installation location
Installation location
Install ground wire
Water inlet
Water outlet
Install HV wire
(remove the cover
before installing)
