Yueming CMA1325C-B-A - Installing Water Cooling System

11

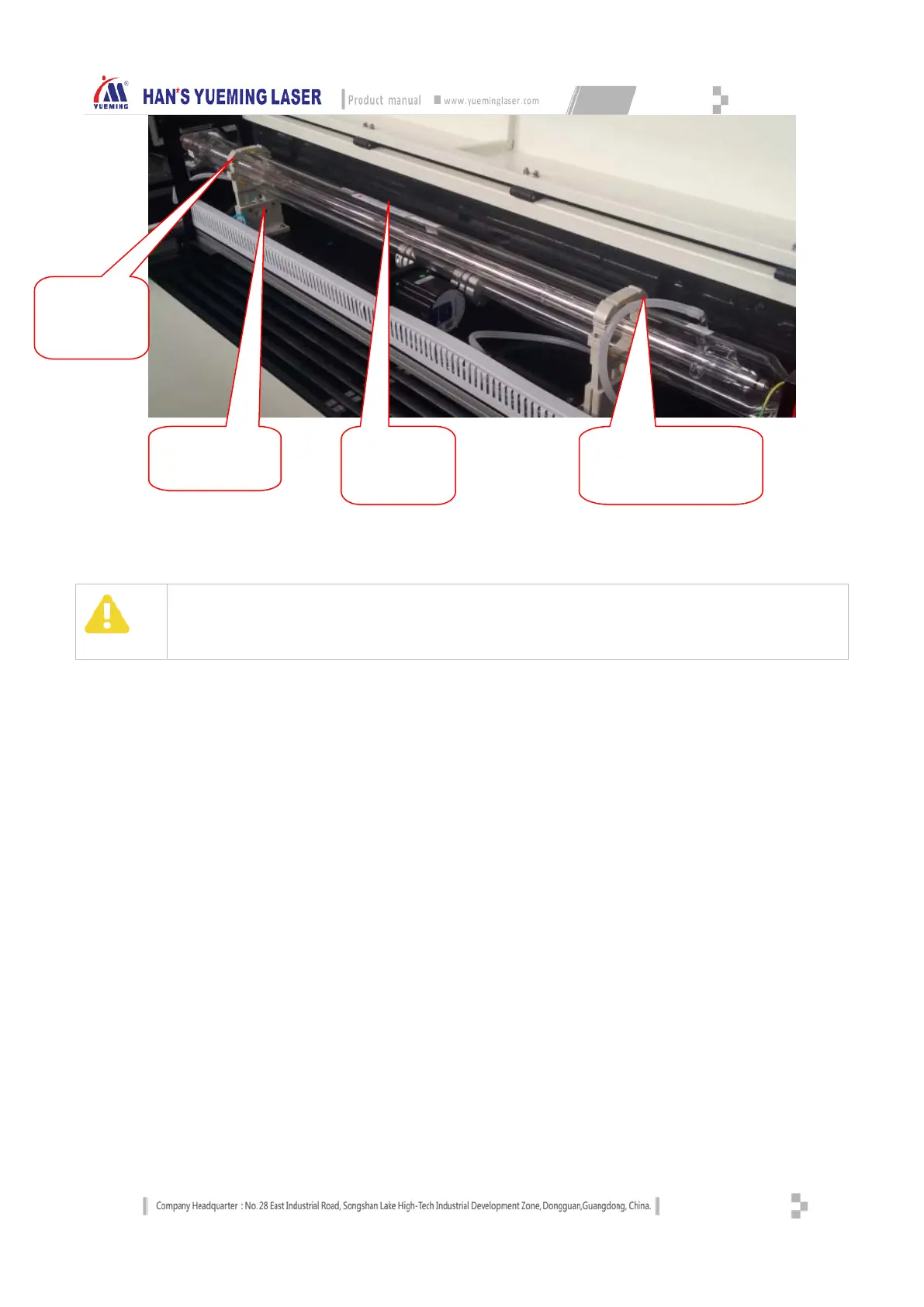

Laser Installation Diagram
Attention
Be careful when moving and installing the laser. It is prohibited to force installation or knock at the laser; otherwise,
it will affect the stability of the laser power and cause light spot quality declines and even laser damage!
3.1.7 Installing water cooling system
 First connect the water outlet of the chiller to the water inlet of the machine with the pipe provided
with the chiller, and connect the water inlet of the chiller to the water outlet of the machine;
 Then, fill up the chiller with distilled water (medical deionized distilled water is recommended);
 Connect the power and turn on the chiller, set the chiller temperature to room temperature ±5°C, and
adjust in the range 10°C~35°C;
 After the chiller is turned on, if the laser is gradually filled with water and the water outlet pipe flows
smoothly, the chiller is working properly.
Remove this
cover before
removing the
laser tube
Adjust the height
of the laser tube
with this nut
This label on
the laser tube
should be
Fix the wire and tube on
the laser with insulating
tape
