34
Another tool is the Mute/Solo column. These buttons allow you to mute the speakers you do not want
to hear or to listen to only one speaker at a time. As mentioned early in the manual, right clicking any
mute button lets you Mute All or Un-Mute All. Also remember the Reset functions under the FILE menu
if you want to undo a setting.

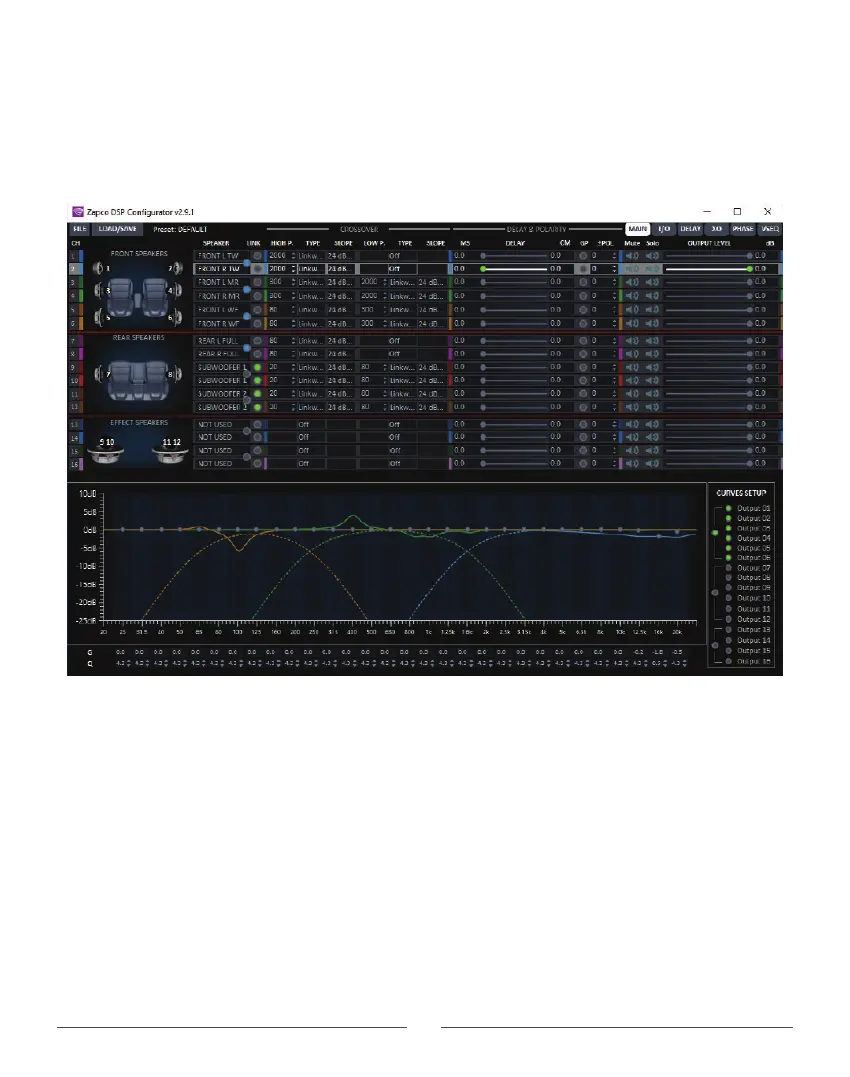

The traces in the EQ graph show what you are doing to the signal. The EQ traces of the active channels
(in this case, channels 3/4) are always shown in the graph however you can add other channels you
want to see at the same time with the buttons at the right. You can turn them on one at a time or by
groups. Here we have the traces of 3 pairs of channels visible.
Always remember: Equalization should be done with an RTA. The graph shows what you are doing to the
signal, but the RTA shows what the resulting response in the car is. You don’t want to confuse the two.
