45
Creating a Pair of 60-Band Equalizer Channels
The Loop function of the HDSP-Z16 V can also be used to create a pair of 60-band EQ channels, This
will allow ultimate fine tuning of systems (especially in competition) that use wide-range speakers for
the midrange and high frequencies.

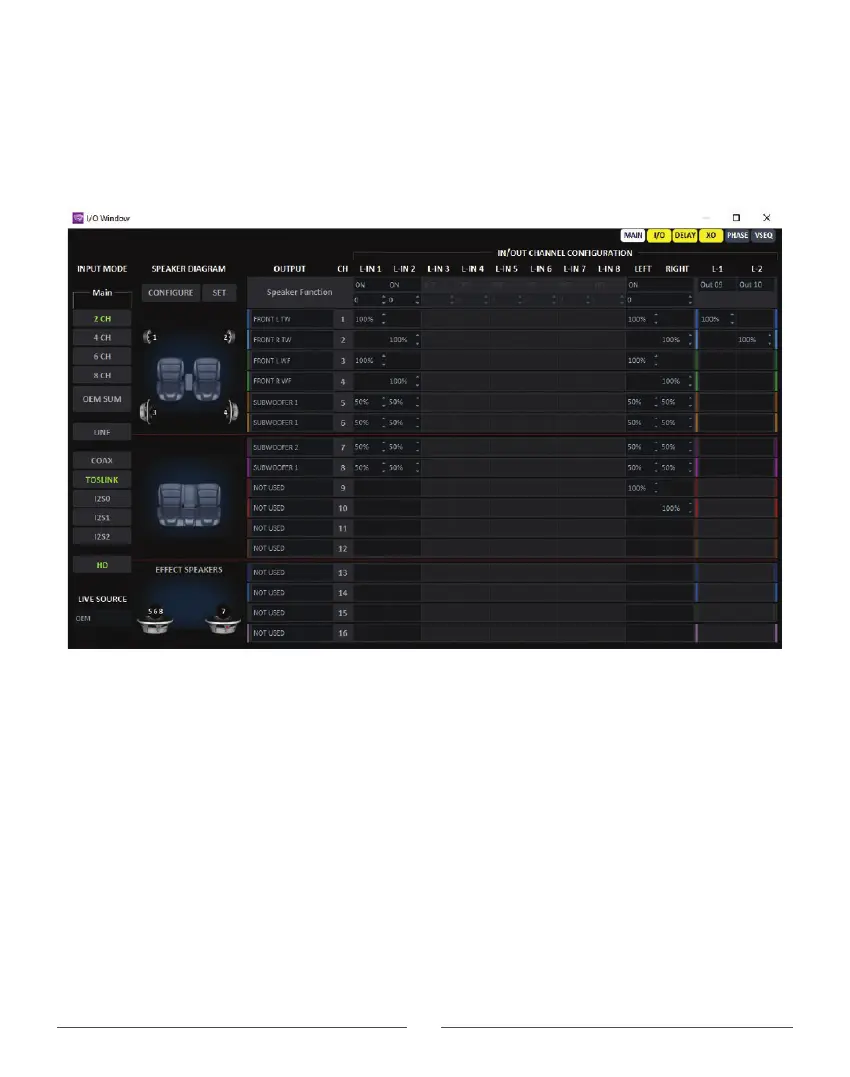

Here we have used Channels 9/10 to form the loop. Notice that they are labeled and Not Used because
we do not want the RCA output of those channels. They are pooped back into channels ½ so channels
1 and 2 both have 60-band equalizers.
Note that when you create a 60 band you will want to equalize all even bands on the target channels
(in this case 1/2), and all odd bands on the looped channels (in this case 9/10).
