Zaxis Isaac HD - I;O Timing Chart

38

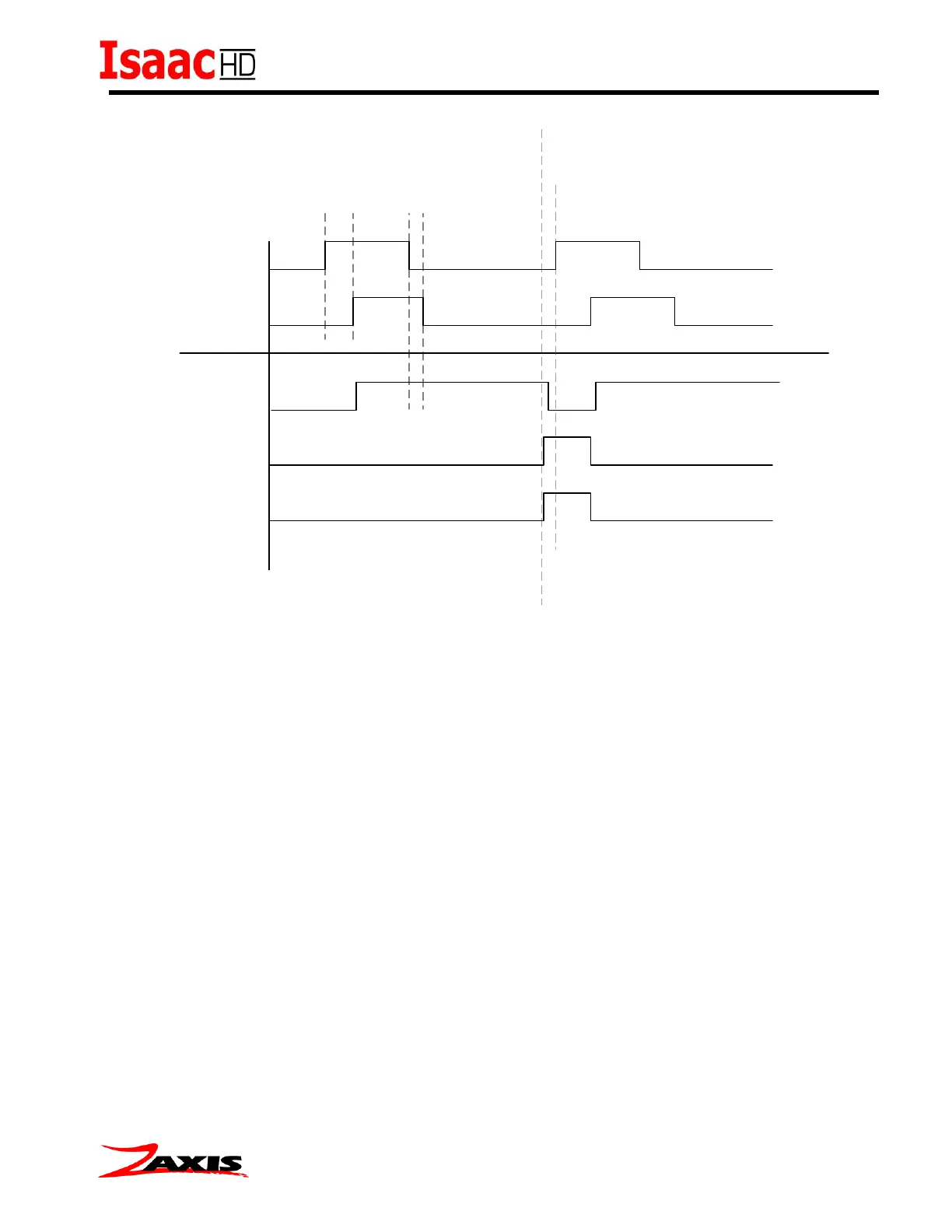

I/O Timing Chart
BINARY
START
BUSY
PASS
FAIL
1 2
Test 1 Test 2
3
1 – Binary should be active 100ms (min) before the Start signal
2 – Binary and Start signals should be released after Busy is verified
