Serial Port (RS232) Wiring
The RS232 serial port on the rear of the test is a valuable tool to collect test results. The serial connection is a
simple ‘three wire cable’.
The RS232 serial port on the rear of the test is a valuable tool to collect test results. The serial
connection is a simple ‘three wire cable’.

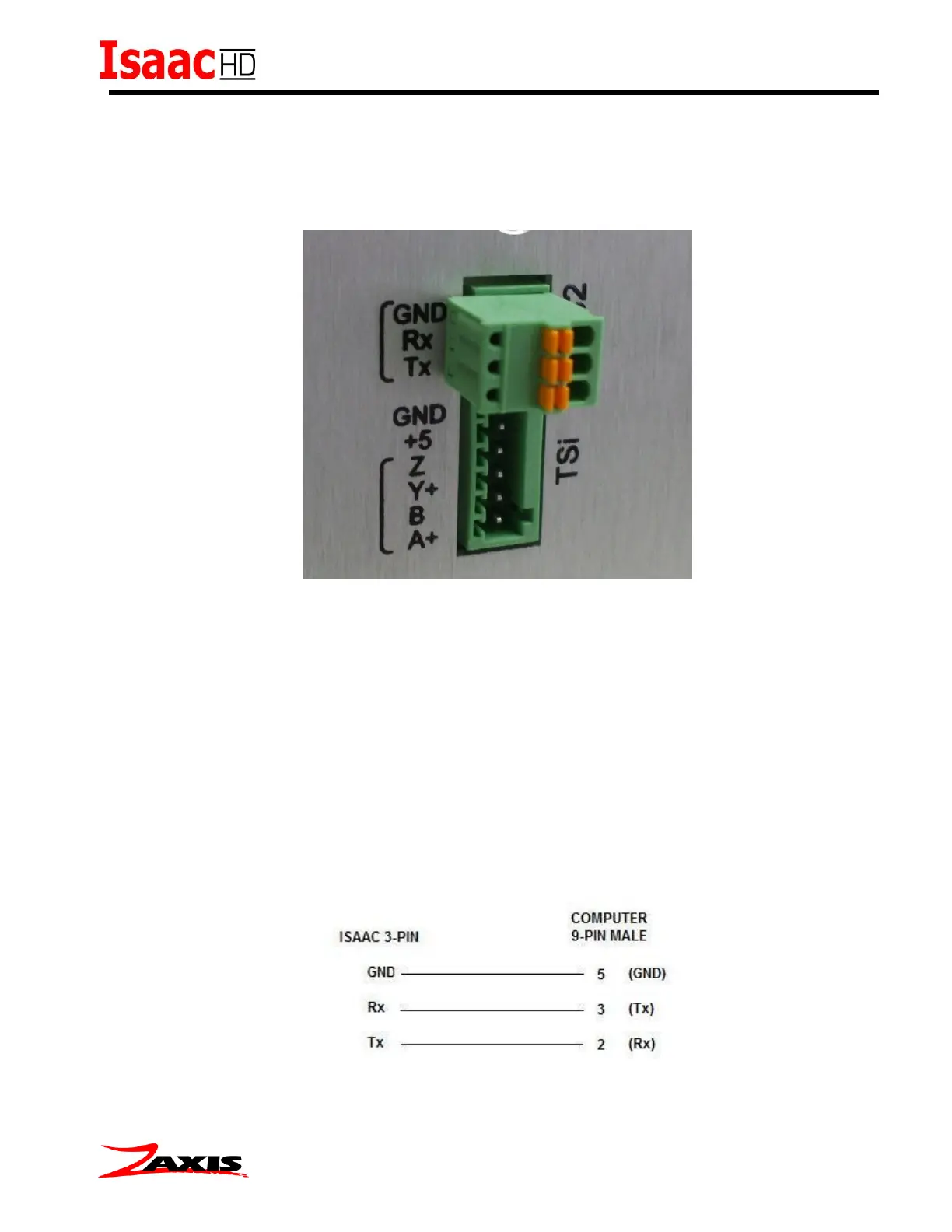

The RS232 connections are screen printed on the rear of the tester.
GND = Ground
Rx = Receive
Tx = Transmit
The mating connector is removable and is held in place by a friction fit. The orange buttons are a
spring catch release that will hold the connection wires. To insert a wire depress the orange button
while inserting the stripped wire until it meets the bottom of the connector. The wires should be
stripped back with 8mm bare wire.
The wiring of the complete cable is as follows:
