Zaxis Isaac HD - i-Kit Rear Panel Components; i-Kit Power, Interface, and Supply Connections

8

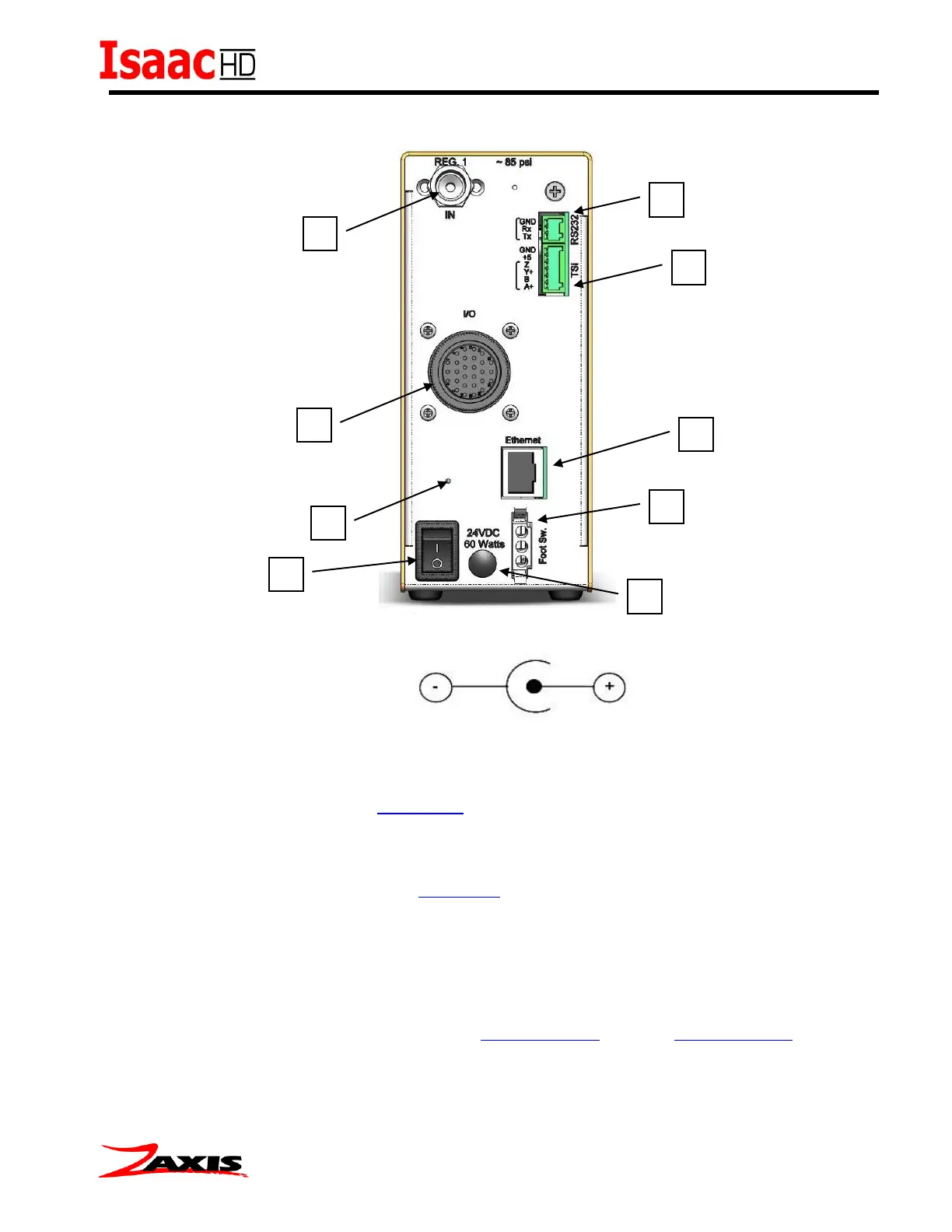

i-Kit rear panel
1. Power Entry Connector, Supply is 24VDC 60watts
(Mating connector S760K-Switchcraft)
2. Power Switch
3. Rear Test Port (optional)
4. I/O Interface Connection (Wiring Chart)
5. Test Pressure Supply, (Air or other test gas) Connection is 1/8”-27 F NPT (Similar to R1/8 BSPT British
Standard Pipe Thread) Supply gas must be clean and dry.
6. RS232 connector (Mate Supplied, wiring chart)
7. TSi, Touch Screen Interface Connector, the i-kit can be operated with or without the TSi attached.
8. Ethernet Port, ASCII communication, data output and command string input.
9. Footswitch connector, For starting a test. Any closed contact switch may be used to start a test by
shorting pins 1 & 3.
Mating Conn. & Pins – Tyco Electronics 1-480305-0 (Digi-Key A1400-ND), 60618-1 (Digi-Key A1422-ND)
5
3
4
2
9
8
7
6
1
