5.3

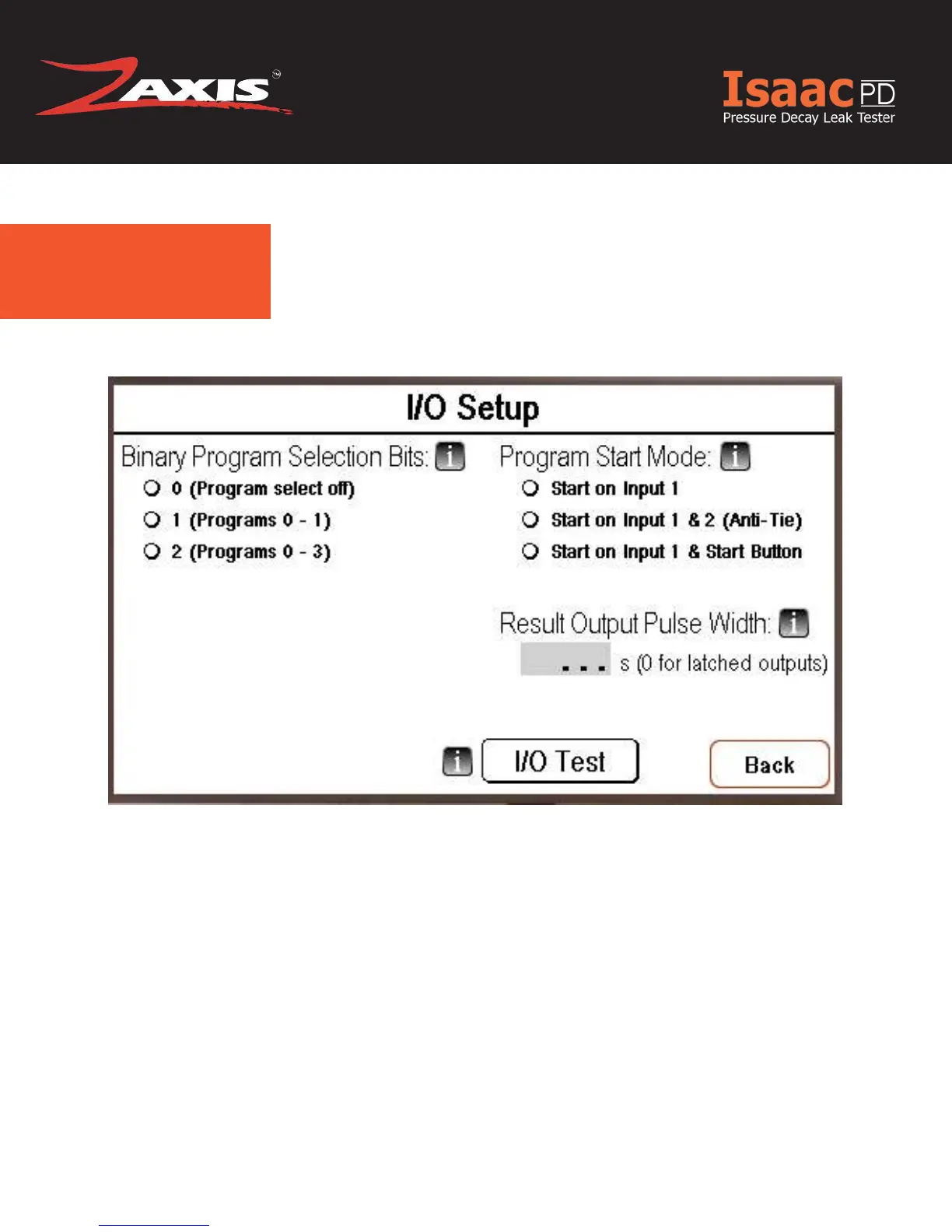

I/O Setup.
This screen allows the user to test the input bit pattern to help de bug wiring from the
remote control (PLC etc). The value from the input register will display when the input
is held active. (See I/O pin out chart for Input Test Values)
