3) Remove a suitable length of the protective sleeve, as shown in the figure (A: 80~100 mm B:
6~8 mm).

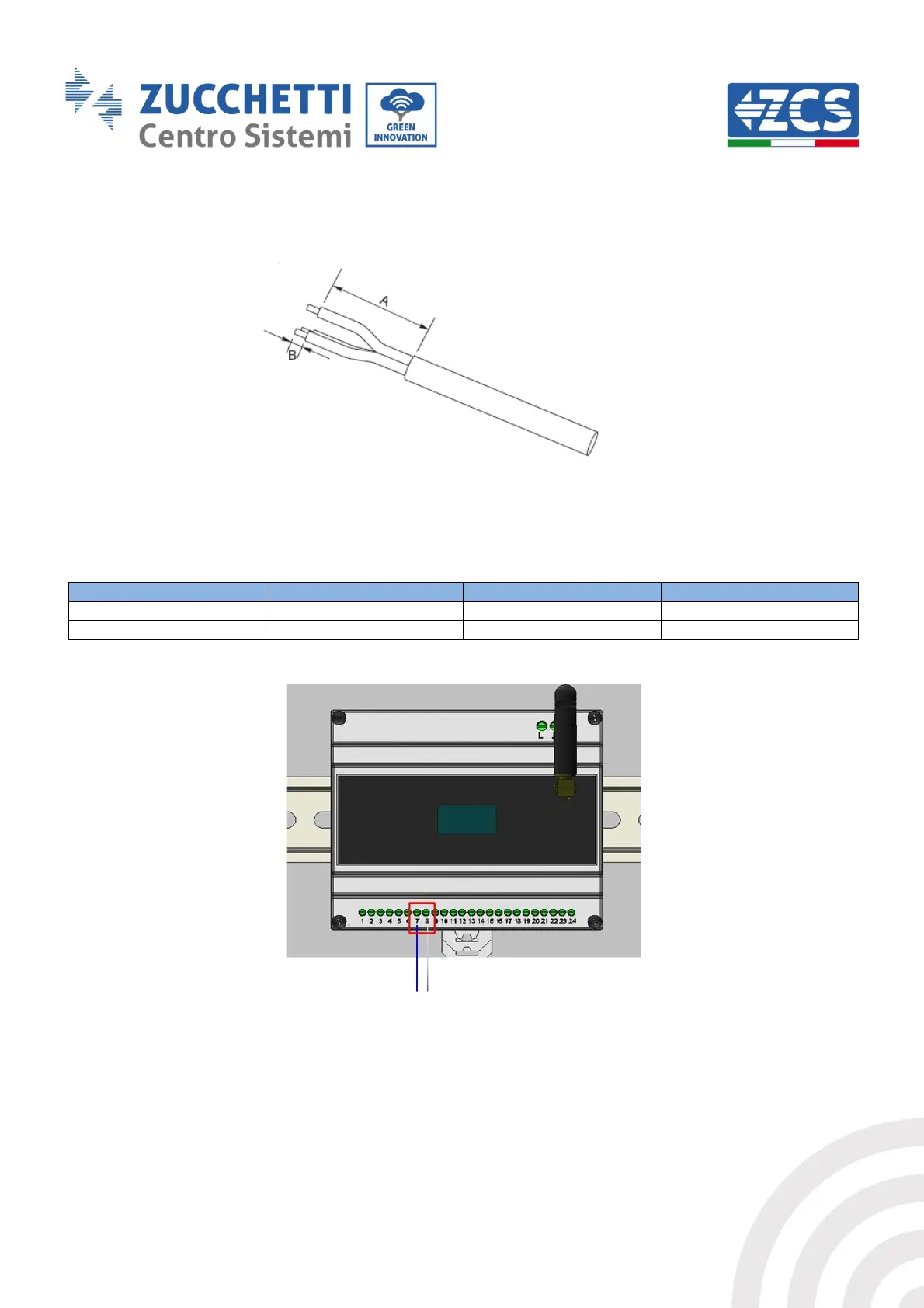

Figure 11 – Preparing the CAN bus cables
4) Connect the cables according to the table below.
Pin RJ45
Cable colour
Connection
24-pin terminal block
4
Blue
CAN-H
7
5
White-blue
CAN-L
8
Table 7 - CAN bus connections on Connext
Figure 12 - CAN bus connections on Connext
