ZCS AZZURRO CONNEXT - Configuration 5: Three-Phase Photovoltaic Inverter

Solo documento principale.
33/67
Identification: MD-AL-GI-00
Rev. 1.2 07.06.21 - Application: GID
Connext User Manual
Rev. 2.2 10/01/2023
5.5. Configuration 5 – System with Azzurro three-phase
photovoltaic inverter

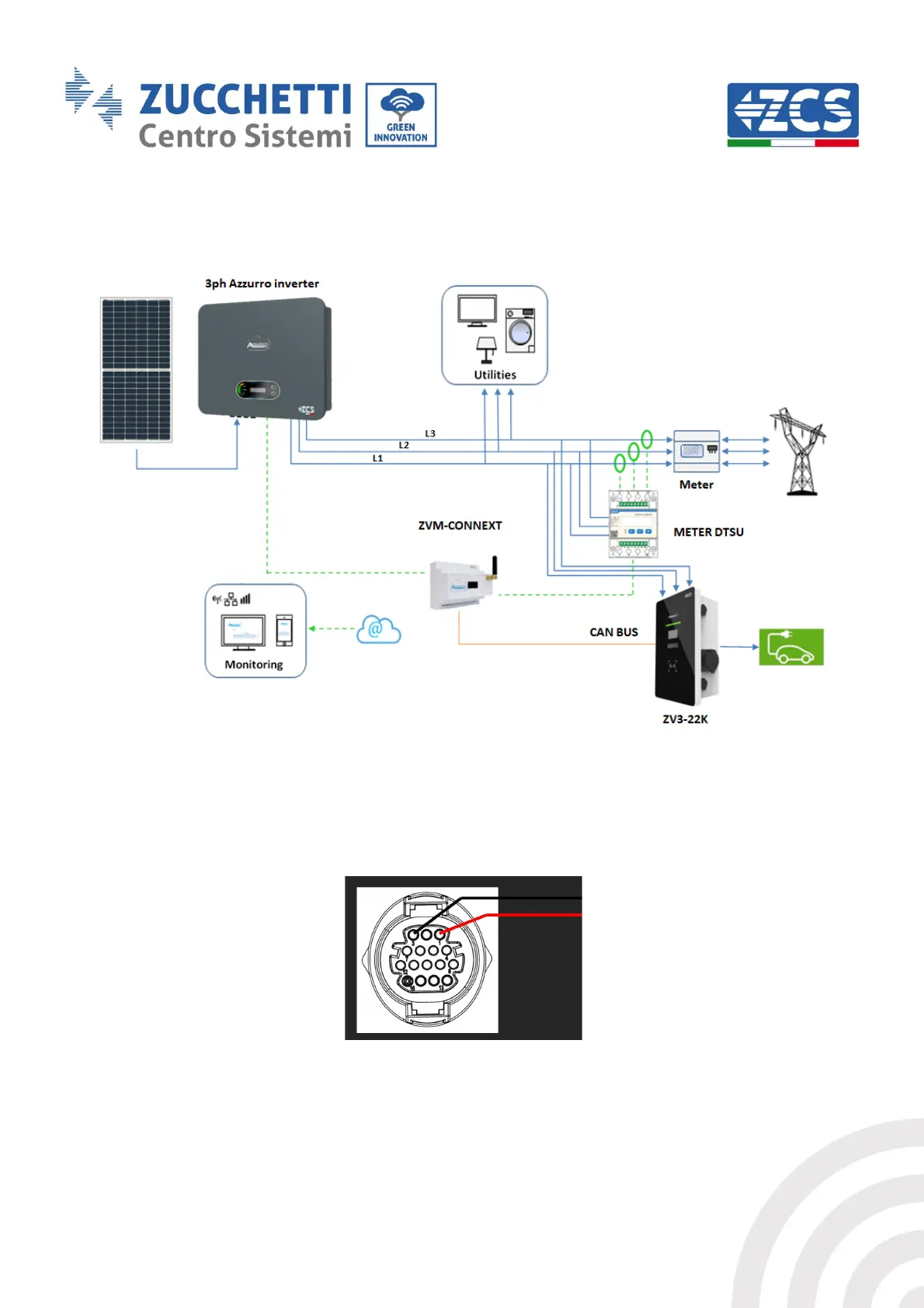

Figure 31 - Configuration 5 with three-phase string inverter
Follow the instructions to connect the RS485 port to Azzurro three-phase photovoltaic inverters.
1) Use a COM connector to connect to one of those identified as RS485 on the inverter (check
the manual of the inverter in question).
Figure 32 - RJ45 connector pin-out
