5.3. Configuration 3 – System with Azzurro three-phase hybrid
inverter

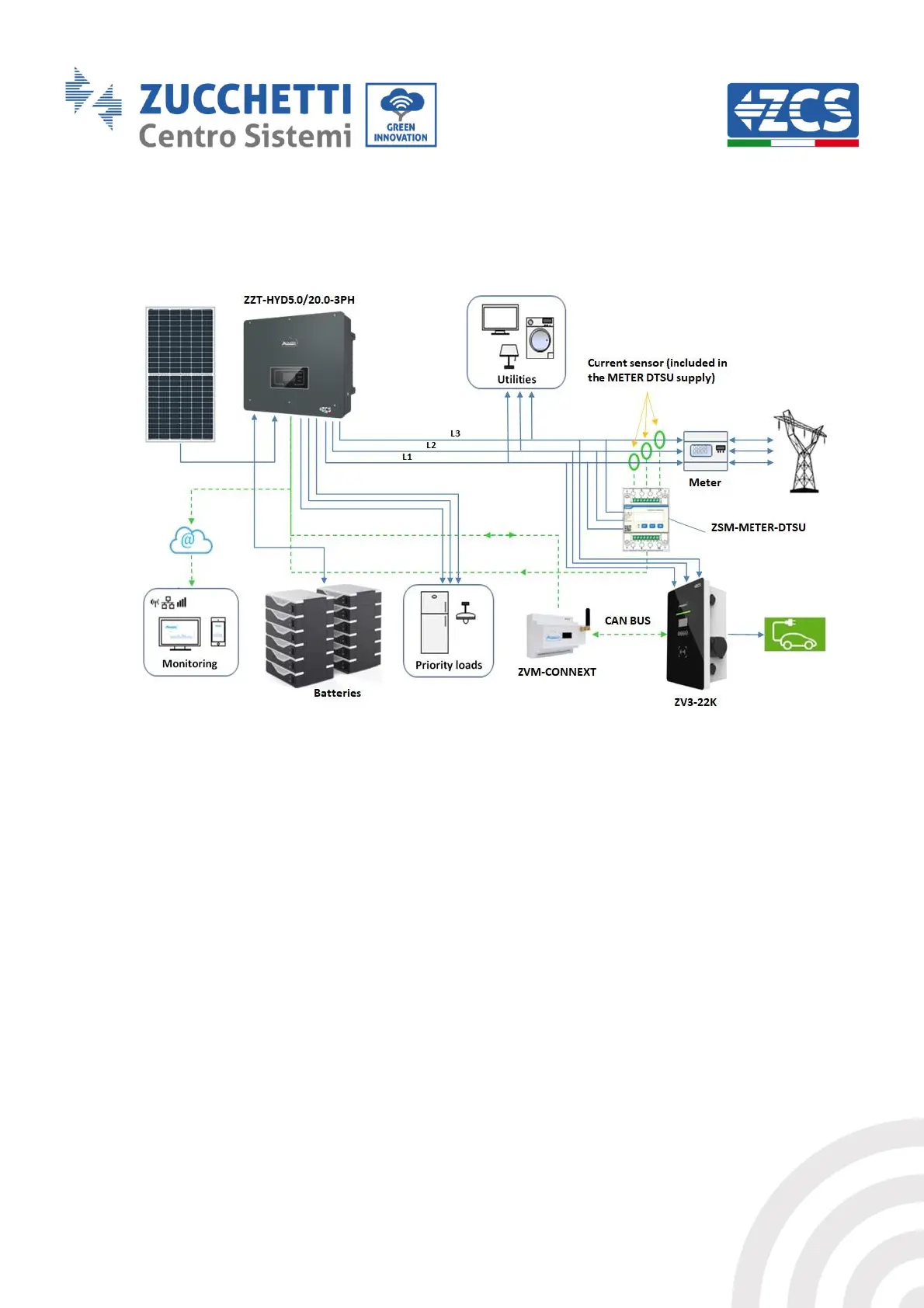

Figure 22 - Configuration 3 with three-phase hybrid inverter
THE SENSORS OR METER FOR MEASURING THE EXCHANGE MUST BE CONNECTED TO THE
INVERTER ACCORDING TO THE MANUAL
Follow the instructions to connect the RS485 port to HYD-5000/6000/8000/10000/15000/20000
inverters.
1) Remove a suitable length of the protective sleeve, as shown in the figure (A: 80~100 mm B:
6~8 mm).
